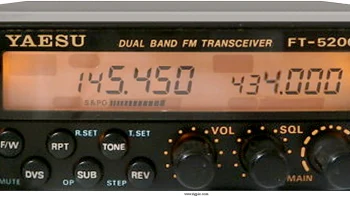

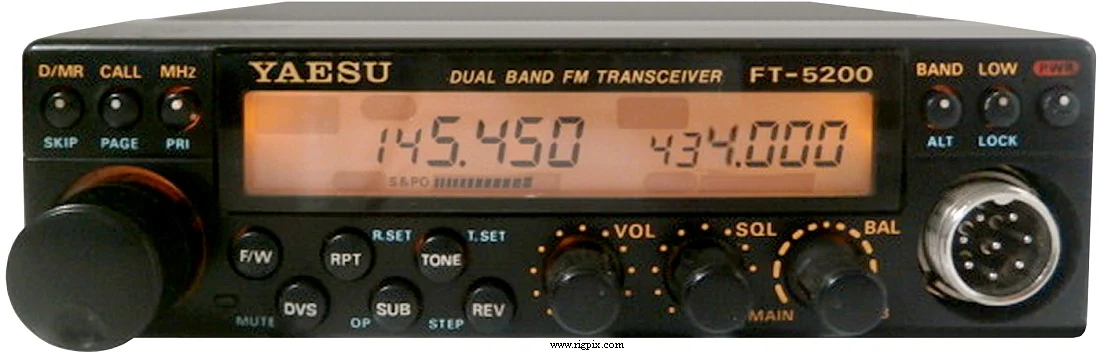

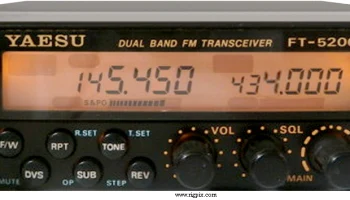

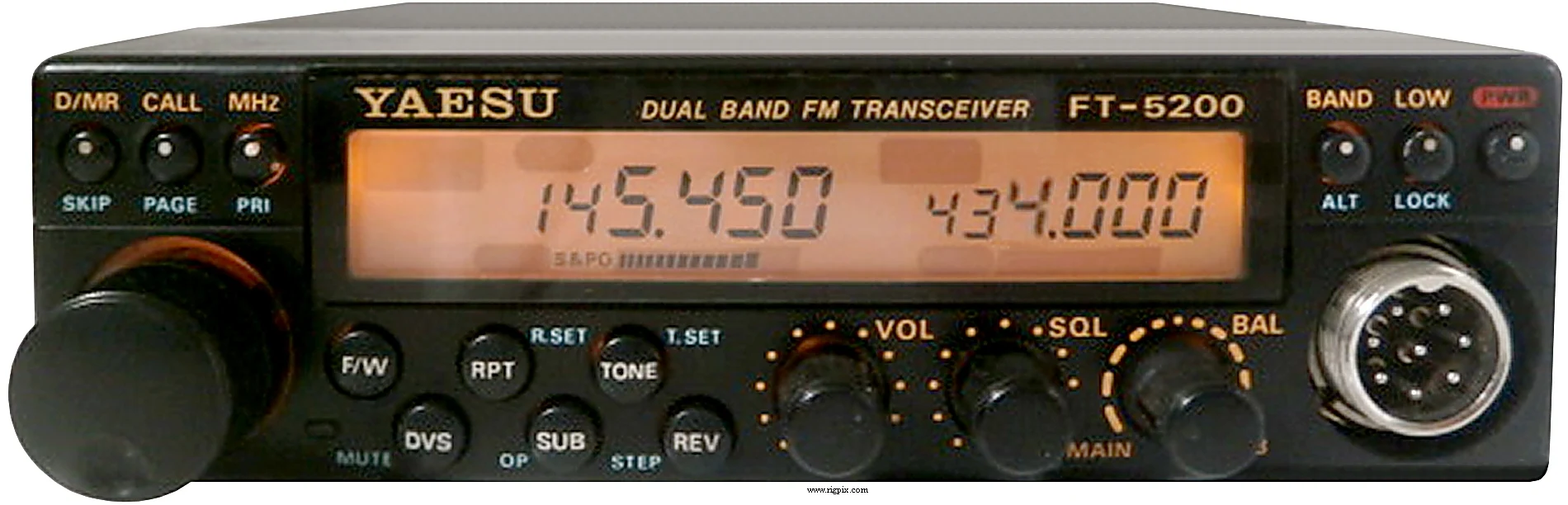

FT-5200
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 144-146 / 430-440 MHz USA TX: 144-148 / 430-450 MHz RX: 144-148 / 430-450 MHz (For other versions, see the user manual) |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability | ±5 ppm @ -5 to +50°C (23 to 122°F) |
| Mode | FM |
| Channels / memory management | 26 regular (13 per band) 2 call (1 per band) 2 scan edge pairs/PMS (1 per band) Priority function RAM storage with lithium battery backup |
| Repeater shift / offset | Europe 2 m: ±600 KHz 70 cm: ±1.6 or 7.6 MHz USA 2 m: ±600 KHz 70 cm: ±5 MHz (Defaults, programmable) |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: 600 mATX: Max 11.5 A |
| Antenna impedance / connector | 50 ohm / SO-239 (On pigtail) |
| Dimensions (W*H*D) | 140*40*155 mm (5.51*1.58*6.1") |
| Weight | 1.0 Kg (2.2 lb) |
| Other features | CTCSS/PL encoder. Detachable front panel ARS. 1750 Hz tone call (Europe). Dimmer. Memory cloning. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 17.7 MHz (2 m) — 22.5 MHz (70 cm) 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Selectivity | 12 KHz (-6 dB)24 KHz (-60 dB) |
| Image rejection | 65 dB |
| AF output power / speaker | 3 W at 5% distortion / 8 ohm |
| External speaker connector | Two 3.5 mm, 4-16 ohm |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:50 W5 W 70 cm:35 W5 W |
|---|---|
| 2 m | 50 W |
| 70 cm | 35 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 600 ohm to 10 Kohm / 8-pin (Metal locking ring connector) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1991-200x (Discontinued) |
|---|---|
| Additional info | — |
| AD-3 DVS-3 FP-700 FRC-4 FTS-22 MF-1A3B MH-15D8 MH-26D8 MH-26E8 MH-26F8 MMB-37 MW-1 SB-10 SP-7 YH-1 YSK-1 YSK-1L | VHF/UHF duplexer for separate antenna operation Digital voice recorder/DTMF pager unit AC power supply. 13.8 VDC, 20 A. Built-in speaker DTMF pager unit Dual-band CTCSS/PL decoder unit Boom microphone with flexible arm Hand microphone with DTMF memory keypad Hand microphone with 1750 Hz tone burst Hand speaker-microphone with 1750 Hz tone burst Hand microphone with DTMF keypad Quick-release mobile mounting bracket Remote wireless controller/DTMF microphone PTT switch unit for MF-1A3B or YH-1 External speaker Headset Trunk mount kit. 3 m (9.8 ft) Trunk mount kit. 6 m (19.7 ft) |
