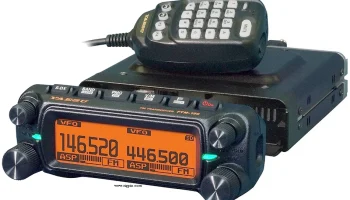

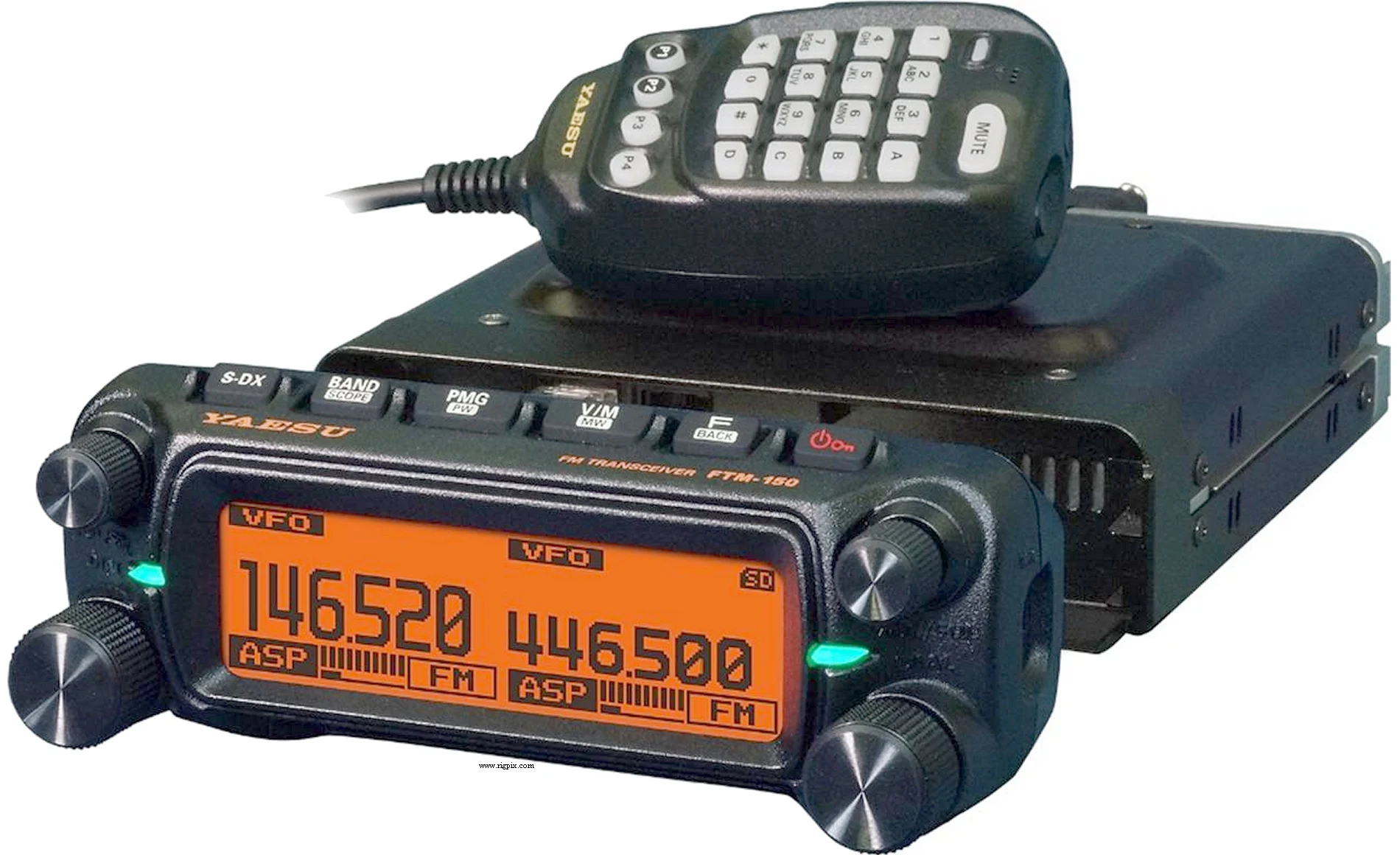

FTM-150R ASP
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 / 430-450 MHz RX: 108-550 MHz |
| Tuning steps | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode | TX: FM / NFMRX: AM / FM / NFM |
| Channels / memory management | 999 regular with alpha tags (8 characters) 50 PMS scan edge pairs 4 home 10 NOAA weather channels Priority function Non-volatile EEPROM storage |
| Repeater shift / offset | Programmable ±0 to 99.95 MHz) |
| Power supply | 13.8 VDC |
| Current drain / power consumption | RX: 500 mATX: Max 11 A |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | Radio unit: 139*42*133 mm (5.47*1.66*5.23")Controller: 148*56*56 mm (5.82*2.2*2.2") |
| Weight | 1.2 Kg (2.64 lb). Radio unit with controller and control cable |
| Other features | CTCSS/PL and DCS with tone search. Super DX mode for enhanced weak signal reception. PMG (Primary Memory Group activity monitor. CFL (Custom Function List). EPCS (Enhanced Paging & Code Squelch). Dual watch. DTMF. Dimmer. 1750 Hz tone call. FACC cooling. VOX. True twin RX (V+V/U+U/V+U/U+V). 47 channel band scope. Weather alert. MAG (Memory Auto Grouping). Micro-SD slot. Data jack for cloning, packet and similar. Amber or white backlite. ASP and Bluetooth options. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 56.75 MHz (Main), 55.85 MHz (Sub) 2nd IF: 450 KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 108-137 MHz: 0.8 uV 300-336 MHz: 0.8 uV FM (12 dB SINAD) 137-150 MHz: 0.2 uV 150-174 MHz: 0.25 uV 174-222 MHz: 0.3 uV 222-300 MHz: 0.25 uV 336-420 MHz: 0.25 uV 420-550 MHz: 0.2 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | AM/FM: 12 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 3+3 W at 10% distortion / 8 ohm (Front and main body speaker) |
| External speaker connector | Two TS «Minijack» (3.5 mm), 8 ohm |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:55 W25 W5 W 70 cm:50 W25 W5 W |
|---|---|
| 2 m | 55 W |
| 70 cm | 50 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / 6-pin (Modular) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 2024-202x |
|---|---|
| Additional info | — |
| BU-5 CT-132 CT-166 FVS-2 MEK-5 MLS-100 MH-42C6J MMB-103 SCU-62 SJMK-500 SPU-1 SSM-85D SSM-BT20 | Bluetooth unit Control cable. 6 m (20 ft) Cloning cable (Radio<>radio) Voice guide and recording unit Mic extension kit. 3 m (10 ft) External power speaker Hand microphone Dash mount bracket Control cable. 3 m (10 ft) Swing head kit Audio Signal Processing (ASP) unit DTMF microphone (Supplied as standard) Bluetooth headset |
