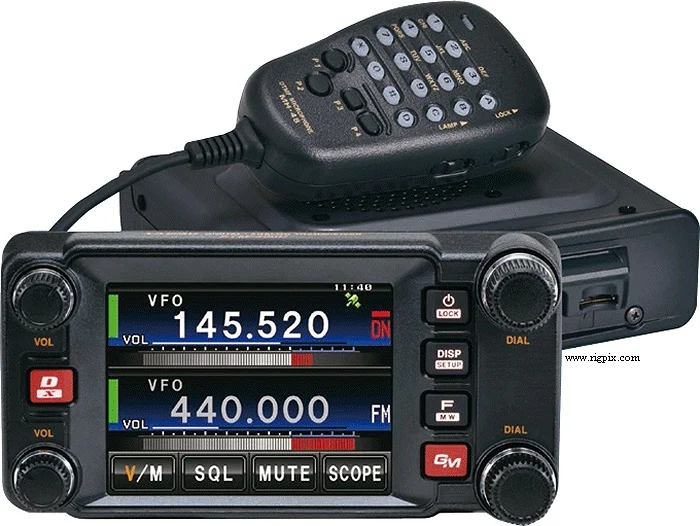

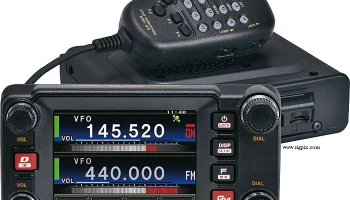

FTM-400DR
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 /430-450 MHz RX: 108-1000 MHz (Cellular blocked) |
| Tuning steps | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode | TX: FM / NFM / DV (C4FM FDMA, 9.6 Kbps)RX: AM / FM / NFM / DV (C4FM FDMA, 9.6 Kbps) |
| Channels / memory management | 1000 regular with alpha tags (500 per band) 2 home channels (1 per band) 9 PMS RAM storage with Li-Ion battery backup |
| Repeater shift / offset | ±0-99.95 MHz in 50 KHz steps |
| Power supply | 11.7-15.8 VDC |
| Current drain / power consumption | RX: 500 mATX: Max 12 A |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | Transceiver: 140*40*125 mm (5.5*1.6*4.9")Controller: 140*72*20 mm (5.5*2.8*0.8") |
| Weight | Total: 1.2 Kg (2.64 lb) |

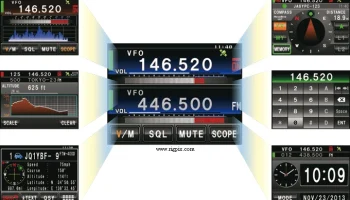

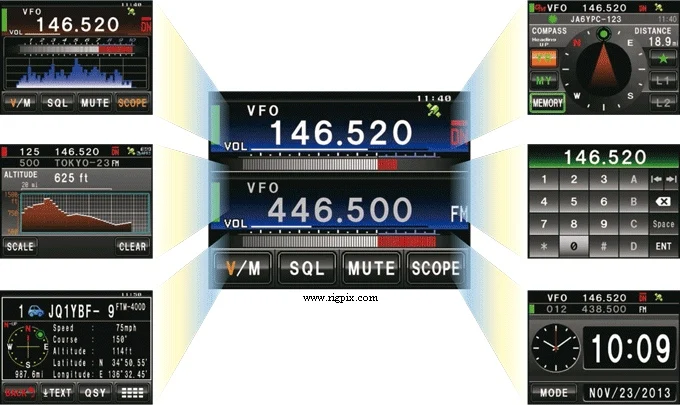

| Other features | Large 3.5" color touch screen. APRS functions. Packet 1200/9600bd ready. Spectrum scope. ARTS. Built-in GPS. Micro-SD card. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 47.25 MHz (A-band), 44.85 MHz (B-band) 2nd IF: 450 KHz |
|---|---|
| Sensitivity | 140-150 MHz: 0.2 uV (12 dB SINAD) 420-470 MHz: 0.2 uV (12 dB SINAD) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | AM/FM: 12 KHz (-6 dB)35 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 3 W at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:50 W20 W5 W 70 cm:50 W20 W5 W |
|---|---|
| 2 m | 50 W |
| 70 cm | 50 W |
| Modulation system | FM: Variable reactanceDV: 4FSK/C4FM |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / 8-pin (Modular) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 2012-2015 (Discontinued) |
|---|---|
| Additional info | — |
| Options/Accessories | BH-2A BU-2 CD-40 CT-162 FVS-2 HRI-200 MH-42C6J MH-48A6JA MH-85A11U MLS-200-M10 MMB-98 SCU-20 SMB-201 ADMS-M400 Bluetooth headset. Requires BU-2 and CD-40 Bluetooth adaptor unit Charger cradle for BH-2A Separation cable. 6 m (19.6 ft) Voice guide unit WIRES-X internet linking interface and software Standard hand microphone Hand micreophone with DTMF Hand microphone with built-in camera Weatherproof external speaker Vacuum bracket for the control head PC connection cable Cooling fan base Windows programming software |
| BH-2A BU-2 CD-40 CT-162 FVS-2 HRI-200 MH-42C6J MH-48A6JA MH-85A11U MLS-200-M10 MMB-98 SCU-20 SMB-201 ADMS-M400 | Bluetooth headset. Requires BU-2 and CD-40 Bluetooth adaptor unit Charger cradle for BH-2A Separation cable. 6 m (19.6 ft) Voice guide unit WIRES-X internet linking interface and software Standard hand microphone Hand micreophone with DTMF Hand microphone with built-in camera Weatherproof external speaker Vacuum bracket for the control head PC connection cable Cooling fan base Windows programming software |
