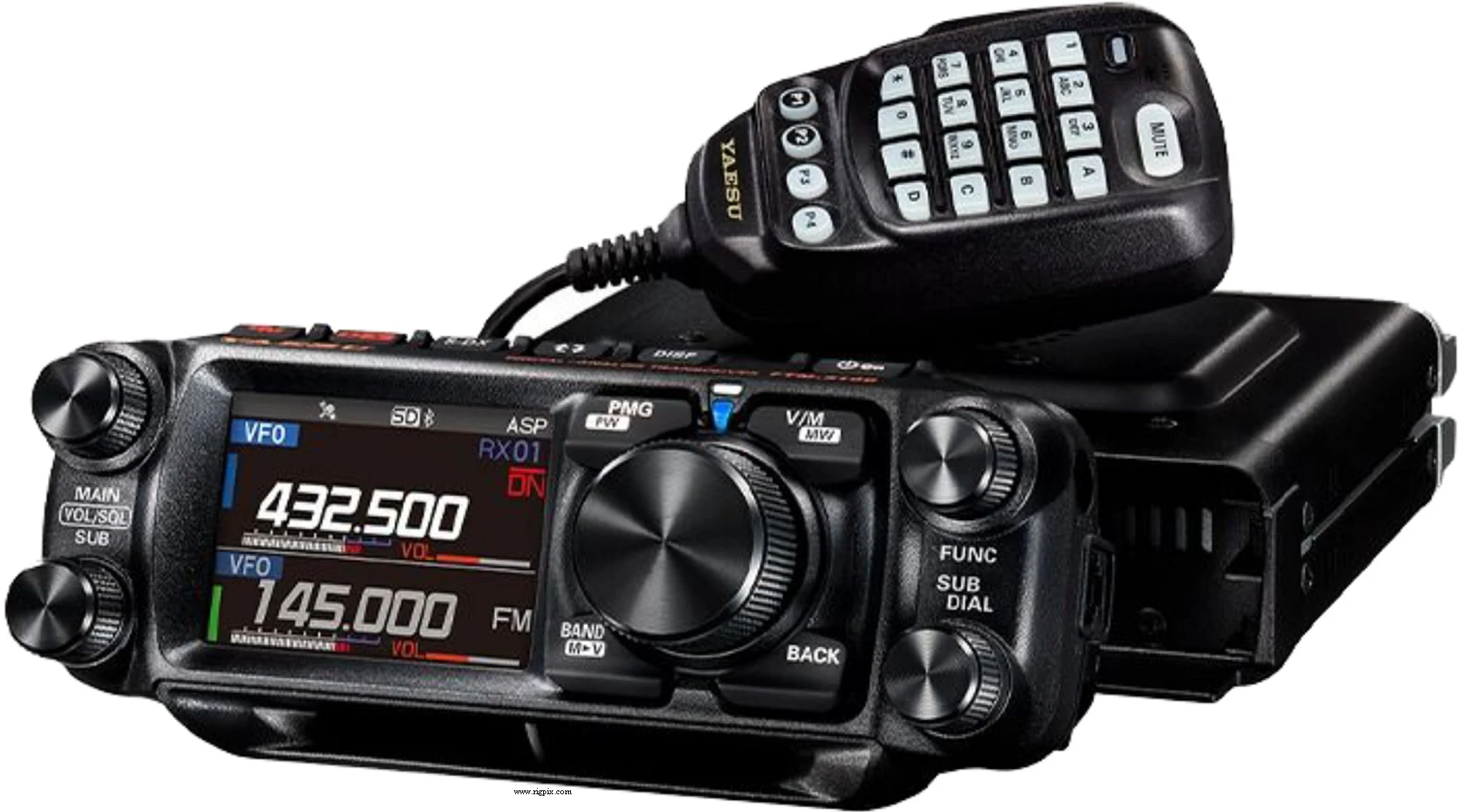

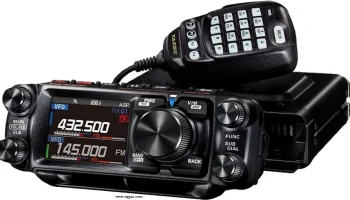

FTM-510DE ASP
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 108-550 MHz |
| Tuning steps | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode | TX: FM / NFM / DV (C4FM FDMA, 9.6 Kbps)RX: AM / FM / NFM / DV (C4FM FDMA, 9.6 Kbps) |
| Channels / memory management | 999 regular with alpha tags 4 home 50 PMS pairs Non volatile EEPROM storage |
| Repeater shift / offset | Programmable |
| Power supply | 11.7-15.8 VDC |
| Current drain / power consumption | RX: 500 mATX: Max 11 A |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | Main unit: 139*42*132 mm (5.47*1.65*5.2")Control head: 156*64*59 mm (6.14*2.52*2.32") |
| Weight | Total: 1.4 Kg (3.09 lb) |
| Other features | CTCSS/PL. AESS dual speaker system (One speaker on the main unit and one front firing speaker on the control head). APRS functions. 66 channel GPS. Wires-X. DG-ID. MicroSD card slot. Voice recording/playback. DTMF mike. 2.4" TFT touch screen. AMS. Detachable control head. Twin RX (V/U, V/V, U/U) including dual digital. Bluetooth. System Fusion II concept. Super DX function. 61 channel band scope. PMG. CFL. 1750 Hz tone call. Audio digital signal processing unit option (SPU-1). |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 56.75 MHz (Main RX) — 55.85 MHz (Sub RX) 2nd IF: 450 KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 108-137 MHz: 0.8 uV 300-336 MHz: 0.8 uV FM (12 dB SINAD) 137-150 MHz: 0.2 uV 150-174 MHz: 0.25 uV 174-222 MHz: 0.3 uV 222-300 MHz: 0.25 uV 336-420 MHz: 0.25 uV 420-470 MHz: 0.2 uV 470-550 MHz: 0.2 uV DV/Fusion (BER 1%) 2 m/70 cm: 0.19 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | AM/FM 12 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 3 W (Main unit), 6 W (Control head) at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:55 W25 W5 W 70 cm:50 W25 W5 W |
|---|---|
| 2 m | 55 W |
| 70 cm | 50 W |
| Modulation system | FM: Variable reactanceDV: 4FSK/C4FM |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / 6-pin (Modular) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 2025-202x |
|---|---|
| Additional info | New price, april 2025 in Sweden: SEK 7995:- |
| BU-5 CT-132 FVS-2 MEK-5 MH-42C6J MLS-100 MMB-103 SCU-58 SCU-62 SJMK-500 SPU-1 SSM-85D SSM-BT20 | Bluetooth unit Control cable, 6 m (20 ft) Voice guide unit Mic extension kit, 3 m (10 ft) Hand microphone External speaker Dash mount bracket WIRES-X connection cable kit Control cable. 3 m (10 ft) Swing head kit Audio digital signal processing unit DTMF microphone Bluetooth headset |
