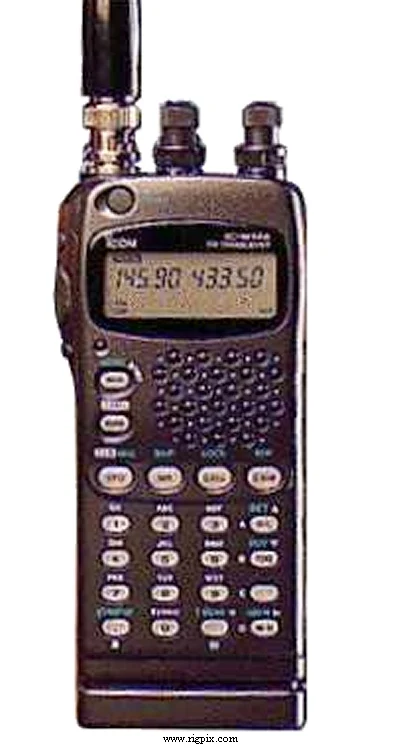

IC-W32E
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 108-950 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±5 ppm @ 0 to 50°C (32 to 122°F) |
| Mode | TX: FMRX: AM / FM |
| Channels / memory management | 100 regular 5 scan edge pairs 1+1 call |
| Repeater shift / offset | Programmable |
| Power supply | 4.5-7.2 V (Depending on battery pack)or 4.5-16 VDC external |
| Current drain / power consumption | RX: 40-210 mATX: Max 1.6 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 57*137*33 mm (2.24*5.39*1.3") |
| Weight | 450 g (15.87 oz) |
| Other features | CTCSS/PL. PC programmable. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 30.85 MHz (VHF) — 46.05 MHz (UHF) 2nd IF: 450 KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Squelch sensitivity | Less than 0.16 uV (Threshold) |
| Noise figure | — |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 180 mW at 10% distortion / 8 ohm |
| External speaker connector | TRS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | High@13.5VLow 2 m:5 W500 mW 70 cm:5 W500 mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set | ±5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / TRS «Subminijack» (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1996-2005 (Discontinued) |
|---|---|
| Additional info | — |
| AD-51 BC-110A BC-110D BC-110V BC-119 BP-170 BP-171 BP-172 BP-173 BP-180 CP-12/L CS-W32 HM-46 HM-54 HM-75A LC-128 MB-30 OPC-254/L OPC-474 SP-13 | Battery pack adapter, for BC-79 Wall charger. Wall charger. Wall charger. Desktop charger Battery case. Four LR6 / AA batteries NiCd battery pack. 4.8 V, 700 mAh NiCd battery pack. 4.8 V, 950 mAh NiCd battery pack. 9.6 V, 650 mAh NiCd battery pack. 7.2 V, 600 mAh Cigarette lighter cable with filter Cloning software Speaker-microphone Speaker-microphone Speaker-microphone Carrying case Mounting bracket DC power cable Cloning cable Earphone |
