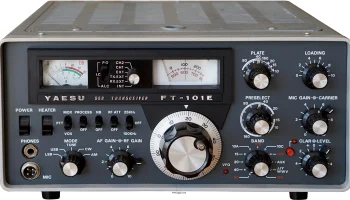

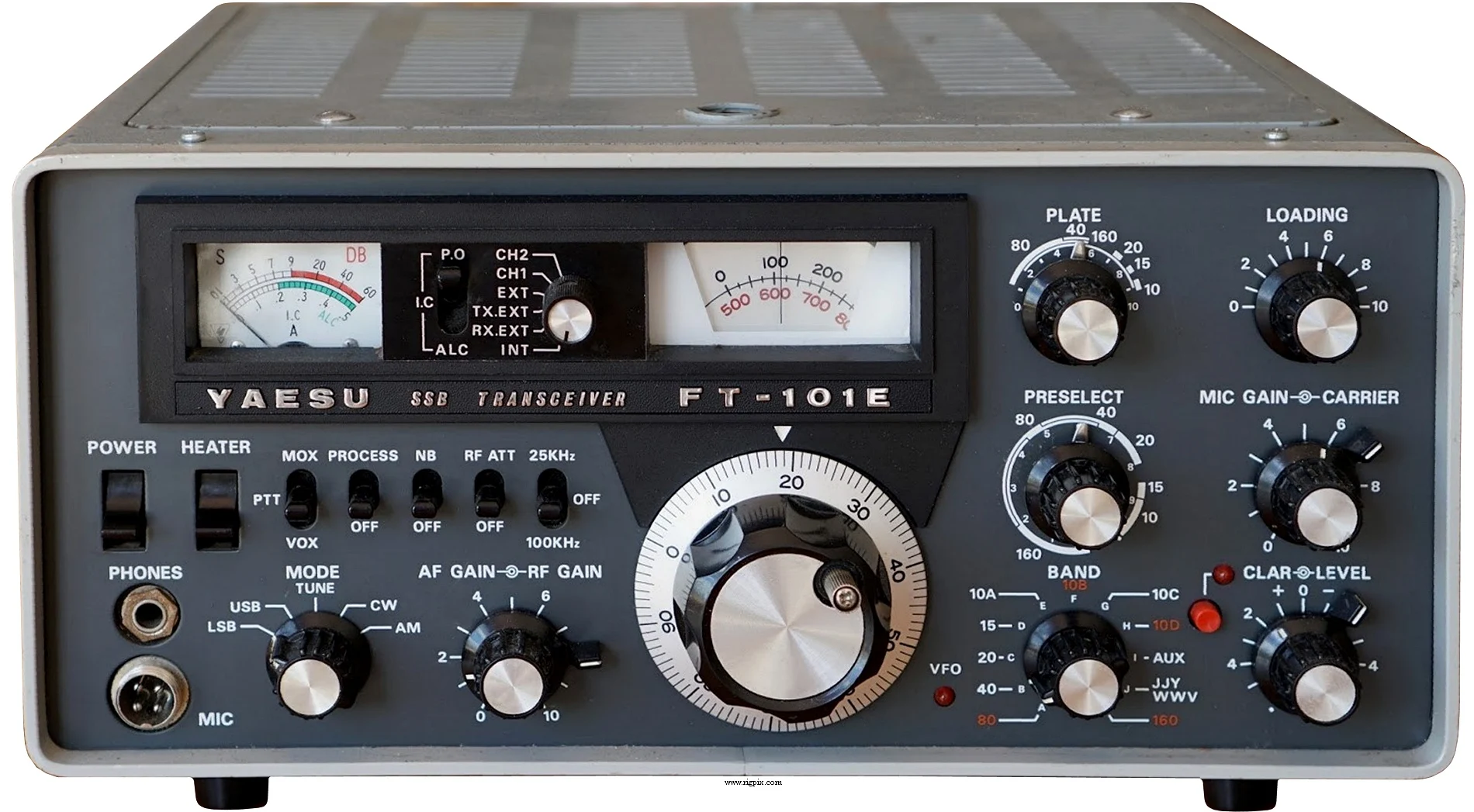

FT-101E
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | TX: 10-160 m RX: 10-160 m and WWV/JJY (10-10.5 MHz) The AUX position provides one optional 500 KHz band segment except between 2.0-3.5 and 5.5-7.0 MHz. |
| Tuning steps | Analog / continuous |
| Frequency stability | Less than 100 Hz drift in any 30 minute period |
| Mode | AM / SSB / CW |
| Channels / memory management | 2 optional XTAL controlled |
| Repeater shift / offset | No |
| Power supply | Mains: 100 / 110 / 117 / 200 / 220 / 234 VAC or 11-14 VDC A twelve-prong Amphenol/Cinch-Jones connector has to be wired for either mains or DC voltage |
| Current drain / power consumption | RX: 45 W @ mains — 600 mA @ 12 VDCTX: Max 350 W @ mains — Max 21 A @ 12 VDC |
| Antenna impedance / connector | 50-75 ohm / SO-239 |
| Dimensions (W*H*D) | 334*148*284 mm (13.15*5.83*11.18") |
| Weight | 13.6 Kg (29.98 lb) |
| Other features | NB. VOX. XTAL-calibrator (25 & 100 KHz). 3.18 MHz IF output. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 5.52-6.02 MHz 2nd IF: 3.18 MHz |
|---|---|
| Sensitivity | 0.3 uV (10 dB S/N) |
| Selectivity | AM/SSB/CW 2.4 KHz (-6 dB)4 KHz (-60 dB) CW (With optional narrow filter) 600 Hz (-6 dB)1.2 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 3 W at ?% distortion /? ohm |
| External speaker connector | 4 ohm |
TRANSMITTER SECTION
| RF output power | Max pwr AM:+40 W SSB (PEP):+100 W CW:+100 W NB! Output power is slightly lower on 10 m |
|---|---|
| AM | +40 W |
SSB (PEP)
| CW | +100 W |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -40 dB |
| Microphone impedance / connector | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1975-197x (Discontinued) |
|---|---|
| Additional info | Hybrid transceiver with a 12BY7A driver and two 6JS6C finals |
| FL-2100B FTV-250 FTV-650B FV-101B MMB-1 SP-101 SP-101PB XF-30C YD-844 | Linear amplifier 2 meter transverter 6 meter transverter External VFO Mobile mounting bracket External speaker External speaker with phone patch CW narrow filter. 600 Hz (-6 dB) Dynamic desk microphone, unidirectional |
