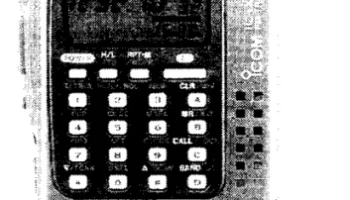

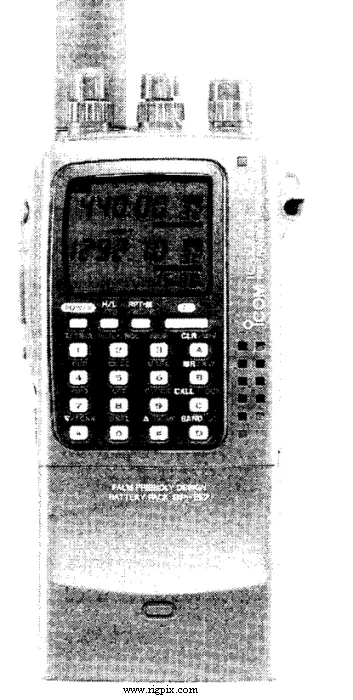

IC-X21AT
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | USA TX: 440-450 / 1240-1300 MHz RX: 144-148 / 440-450 / 1240-1300 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±2 ppm @ 0-50°C (32-122°F) |
| Mode | FM |
| Channels / memory management | 32 regular 1 scan edge pair 1 call |
| Repeater shift / offset | Programmable |
| Power supply | 6-12 VDC (Depending on battery pack)or 6-15 VDC external |
| Current drain / power consumption | RX: 20-250 mATX: 0.6-1.6 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 57*125*35 mm (2.24*4.92*1.38") |
| Weight | 400 g (14.1 oz) |
| Other features | CTCSS/PL. DTMF. Clock & timer. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 45.15 MHz (70 cm) — 95.85 MHz (23 cm) 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 2 m: 3.2 uV (12 dB SINAD) 70 cm: 0.16 uV (12 dB SINAD) 23 cm: 0.12 uV (12 dB SINAD) |
| Squelch sensitivity | 70 cm: Less than 0.16 uV (Threshold) 23 cm: Less than 0.2 uV (Threshold) |
| Noise figure | — |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | 70 cm: 60 dB23 cm: 50 dB |
| AF output power / speaker | 180 mW at 10% distortion / 8 ohm |
| External speaker connector | TRS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | High@ 13.5VLow3Low2Low1ELow 70 cm:5 W3.5 W1.5 W500 mW15 mW 23 cm:1 W600 mW350 mW150 mW150 mW |
|---|---|
| 70 cm | 5 W |
| 23 cm | 1 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB (70 cm) / -40 dB (23 cm) |
| Microphone impedance / connector | 2 Kohm / TRS «Subminijack» (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1993-199x (Discontinued) |
|---|---|
| Additional info | — |
| AD-25 AD-28 BC-77A BC-77D BC-77E BC-77V BC-79 BP-130 BP-131 BP-132 BP-157 CP-13L FA-B7023A HM-9 HM-46 HM-54 HM-55A HM-75 HM-75A HM-30 HS-51 LC-105 LC-106 OPC-288L SP-13 | Battery charge adapter Battery pack adapter Wall charger. Wall charger. Wall charger. Wall charger. Desktop charger Battery case. Six LR6 / AA batteries NiCd battery pack. 7.2 V, 900 mAh NiCd battery pack. 12 V, 600 mAh NiCd battery pack. 7.2 V, 900 mAh. No whisper mike Cigarette lighter cable with noise filter Dual band flexible antenna Speaker-microphone Speaker-microphone Speaker-microphone Speaker-microphone with DTMF keypad Speaker-microphone Speaker-microphone Mounting bracket Headset Carrying case. For use with BP-130/132/157 Carrying case. For use with BP-132 DC power cable Earphone |
