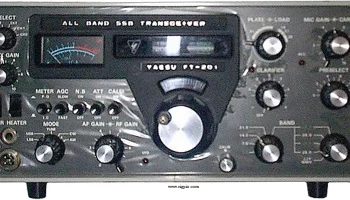

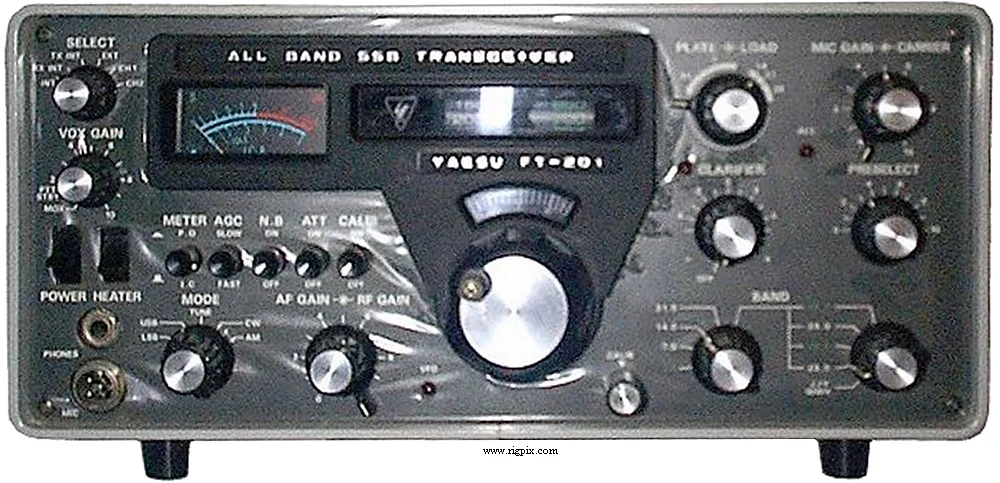

FT-201
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | TX: 10-80 m RX: 10-80 m +15 MHz (WWV) |
| Tuning steps | Analog / continuous |
| Frequency stability | Less than 100 Hz drift in any 30 minute period |
| Mode | AM / SSB / CW |
| Channels / memory management | 2 optional XTAL controlled |
| Repeater shift / offset | No |
| Power supply | Mains: 100 / 110 / 117 / 200 / 220 / 234 VACor 12 VDC A twelve-prong Amphenol/Cinch-Jones connector has to be wired for either mains or DC voltage |
| Current drain / power consumption | RX: 45 W @ mains (600 mA @ 12 VDC)TX: Max 350 W @ mains (Max 21 A @ 12 VDC) |
| Antenna impedance / connector | 50-75 ohm / SO-239 |
| Dimensions (W*H*D) | 340*153*285 mm (13.4*6.02*11.22") |
| Weight | 14 Kg (30.9 lb) |
| Other features | NB. VOX. 25/100 KHz calibrator. Attenuator. |
RECEIVER SECTION
| Receiver system | Single conversion superheterodyne 1st IF: 9 MHz |
|---|---|
| Sensitivity | 0.3 uV (10 dB S/N) |
| Selectivity | AM/SSB/CW 2.4 KHz (-6 dB)4 KHz (-60 dB) CW (With optional narrow filter) 600 Hz (-6 dB)1.2 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 3 W at ?% distortion / External only |
| External speaker connector | 4 ohm |
TRANSMITTER SECTION
| RF output power | Max pwr AM:+40 W SSB (PEP):+100 W CW:+100 W |
|---|---|
| AM | +40 W |
SSB (PEP)
| CW | +100 W |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -40 dB |
| Microphone impedance / connector | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1973-197x (Discontinued) |
|---|---|
| Additional info | Tube hybrid with 12BY7A driver and two 6JS6C finals. New price, may 1975 in England: £270.00 + VAT. |
| FV-201 SP-101PB | External VFO External speaker with phone patch |
