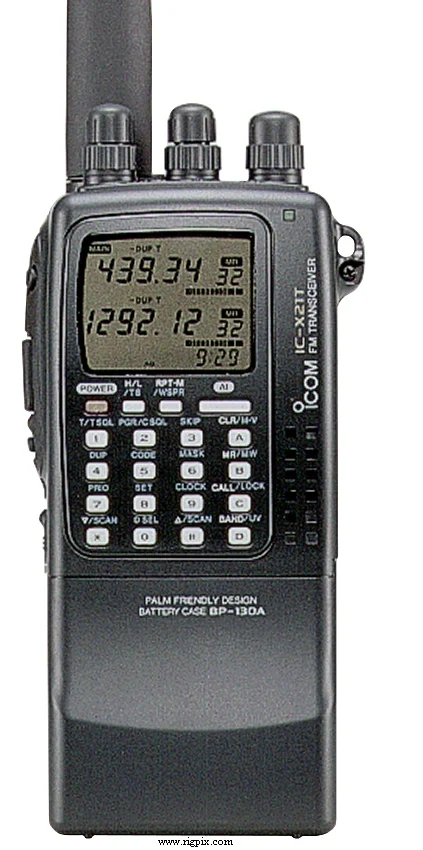

IC-X21T
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | Japanese domestic market TX: 430-440 / 1260-1300 MHz RX: 144-146 / 430-440 / 1260-1300 MHz |
| Tuning steps | — |
| Frequency stability | ±2 ppm @ 0-50°C (32-122°F) |
| Mode | FM |
| Channels / memory management | 32 regular 1 scan edge pair 1 call |
| Repeater shift / offset | Programmable |
| Power supply | 6-12 VDC (Depending on battery pack)or 6-15 VDC external |
| Current drain / power consumption | RX: 20-180 mATX: 0.6-1.6 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 57*125*35 mm (2.24*4.92*1.38") |
| Weight | 380 g (13.4) |
| Other features | DTMF. Clock & timer. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 45.15 MHz (70 cm) — 95.85 MHz (23 cm) 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 2 m: 0.15 uV (12 dB SINAD) 70 cm: 0.14 uV (12 dB SINAD) 23 cm: 0.14 uV (12 dB SINAD) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | 50-60 dB (Depending on band) |
| AF output power / speaker | 180 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | High@ 13.5VLow3Low2Low1ELow 70 cm:5 W3.5 W1.5 W500 mW15 mW 23 cm:1 W600 mW350 mW150 mW150 mW |
|---|---|
| 70 cm | 5 W |
| 23 cm | 1 W |
| Modulation system | — |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1993-199x (Discontinued) |
|---|---|
| Additional info | — |
| BP-130A BP-131A BP-132A CP-13L HM-75A OPC-288L UT-63 | Battery case. Six LR6 / AA batteries NiCd battery pack. 7.2 V, 900 mAh NiCd battery pack. 12 V, 600 mAh Cigarette lighter cable with noise filter Speaker-microphone DC power cable Tone squelch unit (Encoder/decoder) |
