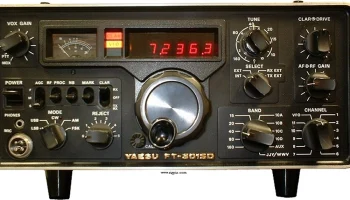

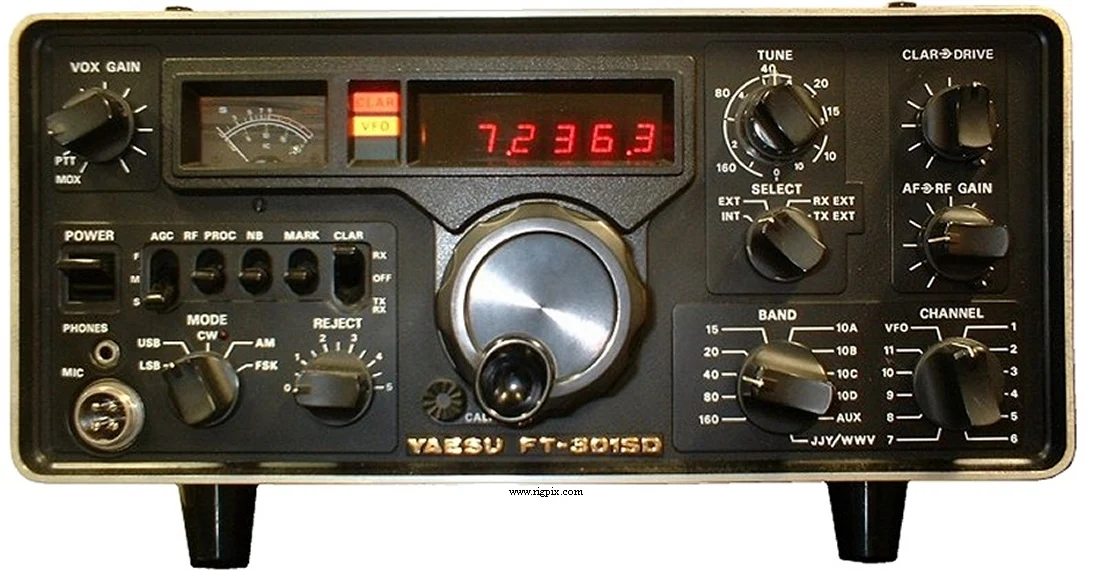

FT-301SD
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | TX: 10-160 m RX: 10-160 m + CB and WWV/JJY |
| Tuning steps | Continuous |
| Frequency stability | Less than 100 Hz in any 30 minute period |
| Mode | AM / SSB / CW / FSK |
| Channels / memory management | 11 optional XTAL controlled |
| Repeater shift / offset | No |
| Power supply | 13.5 VDC |
| Current drain / power consumption | RX: Max 1.1 ATX: Max 2 A |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | 280*125*370 mm (11.02*4.92*14.57") |
| Weight | 9 Kg (19.84 lb) |
| Other features | NB. VOX. 25/100 KHz calibrator. |
RECEIVER SECTION
| Receiver system | Singel conversion superheterodyne 1st IF: 9 MHz |
|---|---|
| Sensitivity | 0.25 uV (10 dB S/N) |
| Selectivity | AM 6 KHz (-6 dB), 12 KHz (-60 dB) SSB 2.4 KHz (-6 dB)4 KHz (-60 dB) CW/FSK 600 Hz (-6 dB)1.2 KHz (-60 dB) |
| Image rejection | Better than 60 dB (15-160 m) Better than 50 dB (10 m) |
| AF output power / speaker | 3 W at 10% distortion / 4 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | Max pwr AM:~2.5 W SSB (PEP):10 W CW:10 W |
|---|---|
| AM | ~2.5 W |
SSB (PEP)
| CW | 10 W |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -40 dB |
| Microphone impedance / connector | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 197x-197x (Discontinued) |
|---|---|
| Additional info | QRP version of FT-301D |
| FC-301 FP-301 FP-301D FV-301 LL-301 XF-90B XF-90C XF-92A YD-844 YD-846 YO-301 YP-150 | Antenna tuner AC power supply AC power supply with speaker, digital clock and ID timer External analog VFO Phone patch unit AM filter CW narrow filter. 600 Hz SSB processor filter Desk microphone Hand microphone Monitor scope Power meter with dummy load |
