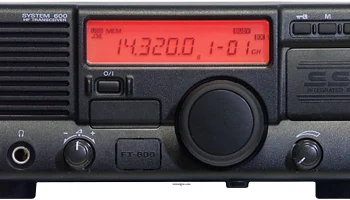

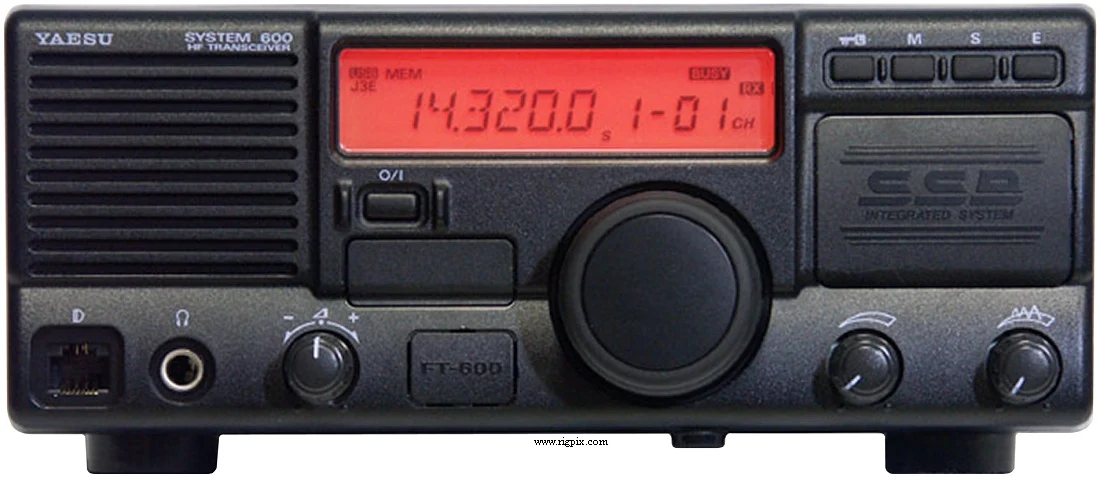

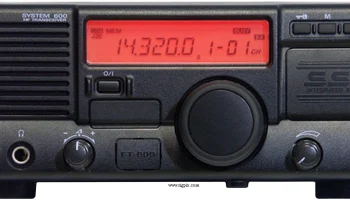

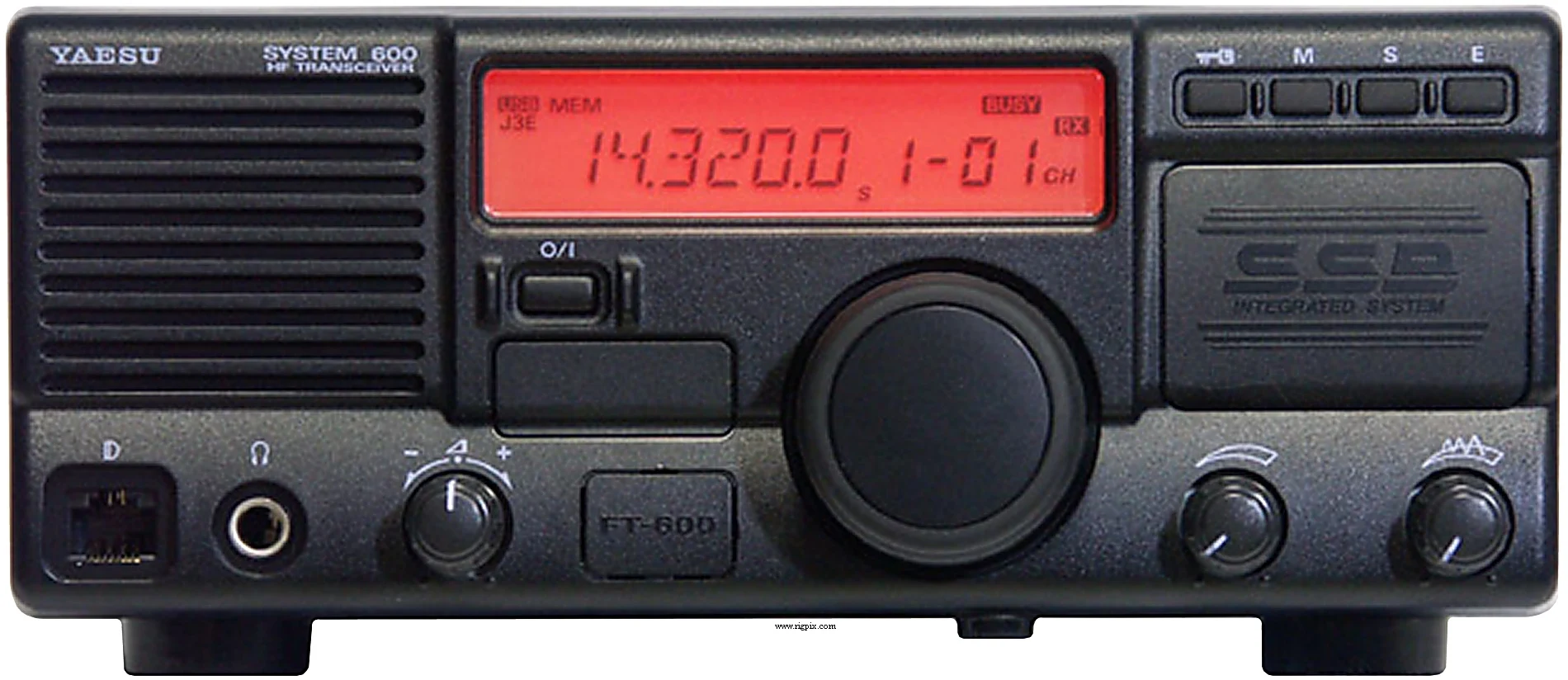

FT-600
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | TX: 10-160 m + WARC RX: 0.05-30 MHz |
| Tuning steps | 10 / 100 Hz, 1 KHz |
| Frequency stability | ±10 ppm @ 0 to 40°C (32 to 104°F) |
| Mode | AM / SSB / CW |
| Channels / memory management | 100 regular Non-volatile EEPROM storage |
| Repeater shift / offset | No |
| Power supply | 13.8 VDC ±10% (6-pin Molex) |
| Current drain / power consumption | RX: 1.2 A (Squelched)TX: Max 20 A |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | 244*104*286 mm (9.61*4.09*11.26") |
| Weight | 4.5 Kg (9.9 lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 47.055 MHz 2nd IF: 8.215 MHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.5-1.8 MHz: 8 uV 1.8-30 MHz: 1 uV SSB/CW (10 dB S/N) 0.5-1.8 MHz: 2 uV 1.8-30 MHz: 0.25 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | SSB/CW/AM narrow 2.2 KHz (-6 dB) 5 KHz (-60 dB) AM wide (With optional YF-112A) 6 KHz (-6 dB) 12 KHz (-60 dB) CW narrow (With optional YF-112C) 500 Hz (-6 dB) 1.2 KHz (-60 dB) |
| Image rejection | 70 dB |
| AF output power / speaker | 1.5 W at 10% distortion / 4 ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | Max pwr AM:25 W SSB (PEP):100 W CW:100 W |
|---|---|
| AM | 25 W |
SSB (PEP)
| CW | 100 W |
|---|---|
| Modulation system | AM: Low-level (Early stage)SSB: Balanced modulator, filtered carrier |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -40 dB |
| Microphone impedance / connector | 500-600 ohm / 8-pin (Modular) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 2000-200x (Discontinued) |
|---|---|
| Additional info | — |
| FC-800 FIF-232C FP-800 MD-100A8X SP-7 SP-8 TCXO-4 YA-007 YA-30 YF-112A YF-112C YH-77STA | Automatic antenna tuner Computer interface, RS-232C AC power supply Desk microphone Mobile speaker Base station speaker High-stability crystal unit. ±2 ppm Mobile antenna Broadband dipole antenna AM filter. 6 KHz Narrow CW filter. 500 Hz Lightweight stereo headphones |
