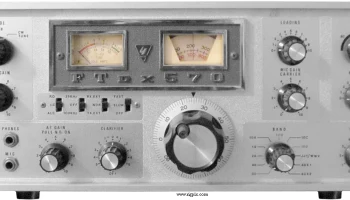

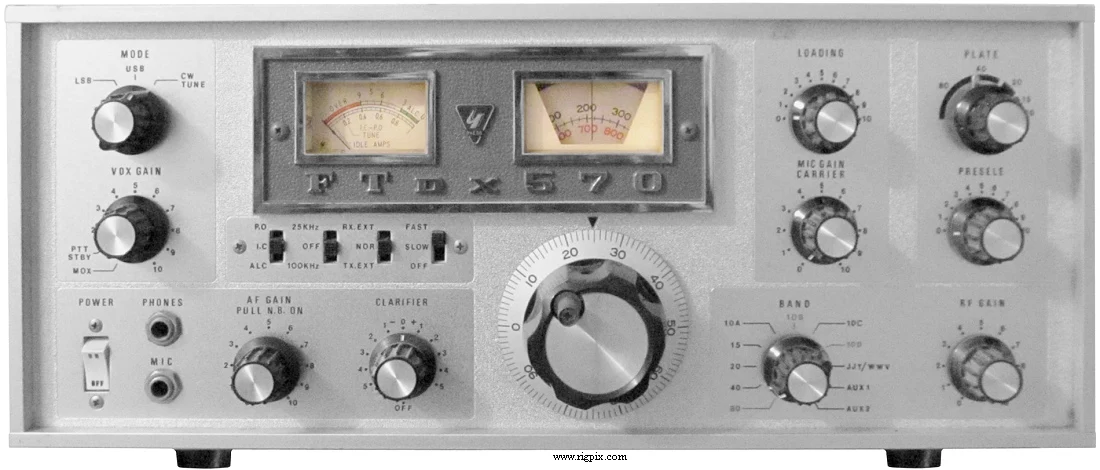

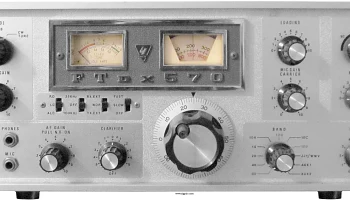

FTDX-570
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | 10-80 m in eight bands 3.5-4.0 MHz (80 m) 7.0-7.5 MHz (40 m) 14.0-14.5 MHz (20 m) 21.0-21.5 MHz (15 m) 28.0-28.5 MHz (10 m A) 28.5-29.0 MHz (10 m B) 29.0-29.5 MHz (10 m C) 29.5-30.0 MHz (10 m D) Plus two optional AUX bands Also 10.0-10.5 MHz JJY/WWV (RX only) |
| Tuning steps | Analog / continuous |
| Frequency stability | 100 Hz for any 30 minute period after warmup |
| Mode | SSB / CW |
| Channels / memory management | None |
| Repeater shift / offset | No |
| Power supply | Mains: 117 / 220 VAC |
| Current drain / power consumption | RX:? VATX: Max? VA |
| Antenna impedance / connector | 50-100 ohm / SO-239 |
| Dimensions (W*H*D) | 400*159*349 mm (15.75*6.25*13.75") |
| Weight | 18.1 Kg (40 lb) |
| Other features | NB. VOX. 25/100 KHz calibrator. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 5.52-6.02 MHz 2nd IF: 3.18 MHz |
|---|---|
| Sensitivity | 0.5 uV (20 dB S/N @ 14 MHz) |
| Selectivity | SSB/CW: 2.4 KHz (-6 dB)4.2 KHz (-60 dB) CW narrow (With optional filter) 600 Hz (-6 dB)1.2 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 1 W at ?% distortion / 8 ohm |
| External speaker connector | 8 ohm |
TRANSMITTER SECTION
| RF output power | Max pwr SSB (PEP):~250 W (560 W input) CW:~200 W (430-500 W input) |
|---|
SSB (PEP)
| CW | ~200 W (430-500 W input) |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -40 dB |
| Microphone impedance / connector | ? ohm / 3-pin (1/4" jack) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1972-197x (Discontinued) |
|---|---|
| Additional info | Built-in speaker and cooling fan New price, march 1972 in the US: $549.95 |
| XF31C | CW narrow filter. 600 Hz |
