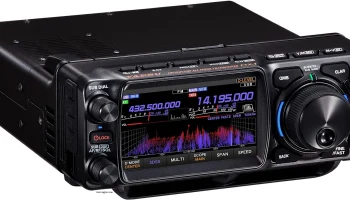

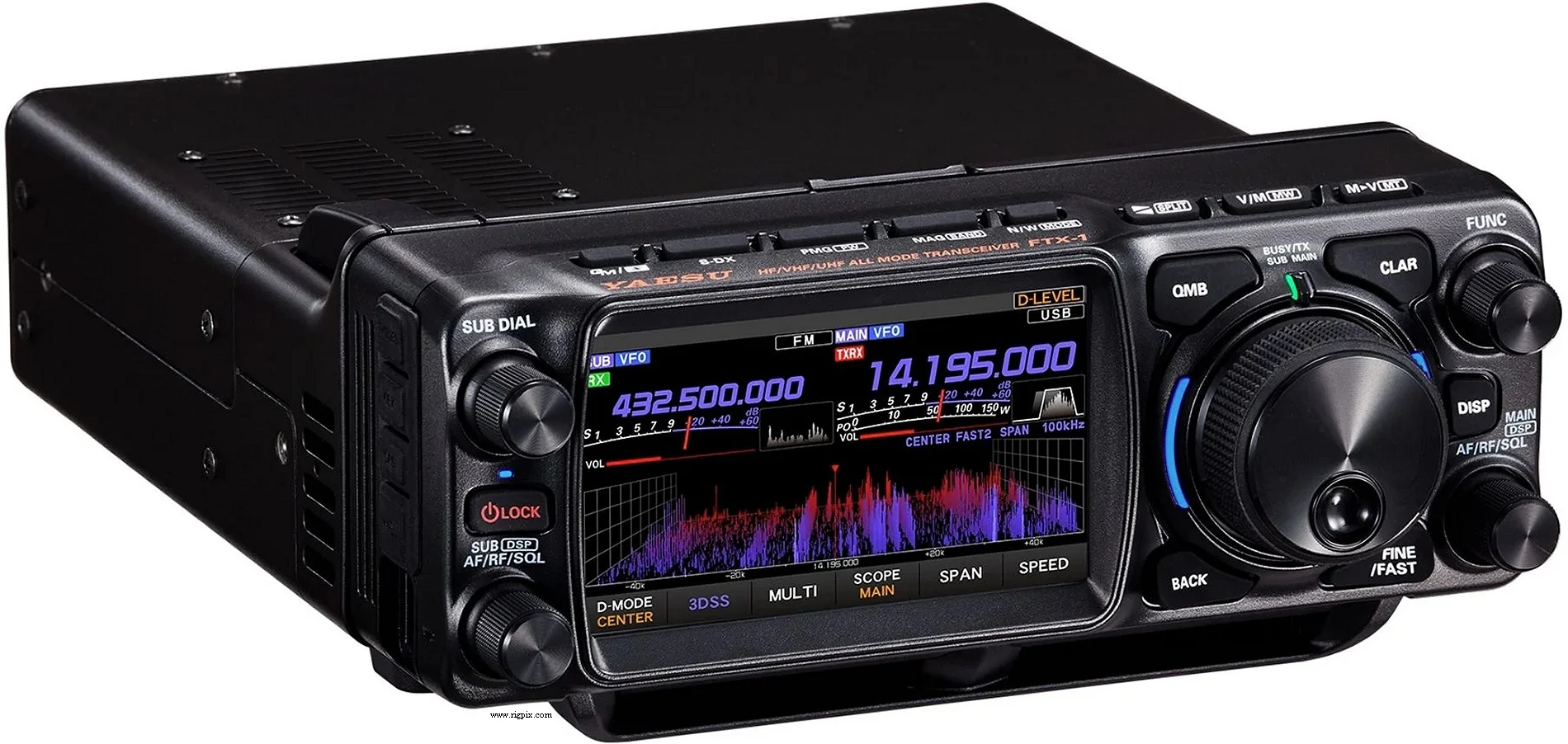

FTX-1 Optima
Источник:
GENERAL
| Type | Amateur HF/VHF/UHF transceiver |
|---|---|
| Frequency range | TX: 10-160 m + WARC / 6 m / 2 m / 70 cm (Also 4 m for UK version) RX: 0.03-174 / 400-470 MHz |
| Tuning steps | 1 / 5 / 10 / 20 Hz |
| Frequency stability | ±0.5 ppm @ -10 to +50°C (14 to 122°F) after 1 minute warmup |
| Mode | AM / FM / NFM / SSB / CW / DV (C4FM «Fusion») |
| Channels / memory management | 999 regular with alpha tags (12 characters) 10 QMB 5 PMG MAG (Memory Auto Grouping) |
| Repeater shift / offset | Programmable |
| Power supply | 13.8 VDC ±15% (10.8 VDC battery pack when undocked) |
| Current drain / power consumption | RX: 600-900 mATX: Max 21 A @ 100 W output powerTX: Max 3 A @ 10 W output power (Undocked) |
| Antenna impedance / connector | 50 ohm / Three SO-23950 ohm / Two BNC (Undocked) |
| Dimensions (W*H*D) | 213*89*240 mm (8.4*3.5*9.4")213*89*55 mm (8.4*3.5*2.2"), undocked |
| Weight | 3.9 Kg (8.6 lb)1.25 Kg (2.75 lb), undocked |
| Other features | 4.3" color touch TFT with switchable display modes. 3DSS bandscope. Two independent receivers. Two speakers. 32-bit IF DSP. Wires-X. USB ports for audio I/O and CAT operation. S-DX. AMS. APRS. Micro SD card slot. Auto-ATU. The transceiver part can be undocked from the RF power amplifier for field operation. Bluetooth option. Some other options are for undocked field use. |
RECEIVER SECTION
| Receiver system | Direct sampling superheterrodyne (Below 48 MHz) Single conversion IF sampling (Above 48 MHz) IF: 44.5-49.5 MHz (Main RX) — 41.3-44.3 MHz (Sub RX) |
|---|---|
| Sensitivity | AM (BW: 6 KHz / 10 dB S+N/N) 0.5-1.8 MHz: 7.9 uV 1.8-30 MHz: 2 uV 50-54 MHz: 1 uV 70-70.5 MHz: 2 uV 144-148 MHz: 1 uV 430-450 MHz: 1 uV FM (BW: 12 KHz / 12 dB SINAD) 28-30 MHz: 0.25 uV 50-54 MHz: 0.2 uV 70-70.5 MHz: 0.25 uV 144-148 MHz: 0.125 uV 430-450 MHz: 0.125 uV SSB/CW (BW: 2.4 KHz / 10 dB S+N/N) 1.8-30 MHz: 0.16 uV 50-54 MHz: 0.125 uV 70-70.5 MHz: 0.16 uV 144-148 MHz: 0.125 uV 430-450 MHz: 0.125 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | AM (BW=6 KHz — Width: Center) 6 KHz (-6 dB)15 KHz (-60 dB) FM (BW=12 KHz — Width: Center) 12 KHz (-6 dB)25 KHz (-60 dB) SSB (BW=2.4 KHz — Width: Center) 2.4 KHz (-6 dB)3.6 KHz (-60 dB) CW (BW=0.5 KHz — Width: Center) 500 Hz (-6 dB)750 Hz (-60 dB) |
| Image rejection | 70 dB or better (HF amateur bands)60 dB or better (VHF / UHF amateur bands) |
| AF output power / speaker | 4 W at 10% distortion / 4 ohm1.5 W at 10% distortion / 4 ohm (Undocked) |
| External speaker connector | TS minijack (3.5 mm), 4-16 ohm |
TRANSMITTER SECTION
| RF output power | DockedHF/6 mDocked2 m/70 cmUndocked@BatteryUndocked@13.8V AM:5-25 W5-13 W0.5-1.5 W0.5-2.5 W FM:5-100 W5-50 W0.5-6 W0.5-10 W SSB (PEP):5-100 W5-50 W0.5-6 W0.5-10 W CW:5-100 W5-50 W0.5-6 W0.5-10 W C4FM:5-100 W5-50 W0.5-6 W0.5-10 W |
|---|---|
| AM | 5-25 W |
| FM | 5-100 W |
SSB (PEP)
| CW | 5-100 W |
|---|---|
| C4FM | 5-100 W |
| Modulation system | AM: Low-level (Early stage) FM: Variable reactance SSB: Balanced |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | HF: Better than -50 dB6 m: Better than -63 dB2 m/70 cm: Better than -60 dB |
| Microphone impedance / connector | 200-10000 ohm (600 ohm nominal) / 8-pin (Modular) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 2025-202x |
|---|---|
| Additional info | This is an FTX-1 Field with the SPA-1 included from factory. Indicated price, may 2025 in Sweden: SEK 27495:- Indicated price, may 2025 in Germany: 2398.00 Euro Indicated price, may 2025 in the US: $1899.95 |
| ATAS-25 ATAS-120A ATBK-100 BU-6 FC-40 FC-80 FC-90 FGPS-5 M-1 M-70 M-90D M-90MS Kit M-100 MHG-1 SBR-52LI SCF-1 SCU-66 SCU-66L SPG-1 SSM-75E SSM-BT20 YH-77STA | Manual active tuning antenna Automatic active tuning antenna Antenna base kit for ATAS-120A Bluetooth unit External automatic antenna tuner (Longwire compatible) Snap-on automatic antenna tuner (HF/6 m) Automatic antenna tuner (10 W longwire and 50 ohm compatible) GPS antenna Reference desk microphone Desk microphone Dynamic desk microphone Dynamic microphone stand kit Deal element desk microphone Side carry handle (For SPA-1 only) Li-Ion battery pack. 10.8 V, 6400 mAh Cooling fan Separation/extension cable. 1.5 m (5 ft) Separation/extension cable. 3 m (10 ft) Protection guard Hand microphone Bluetooth headset Lightweight stereo headphones |
