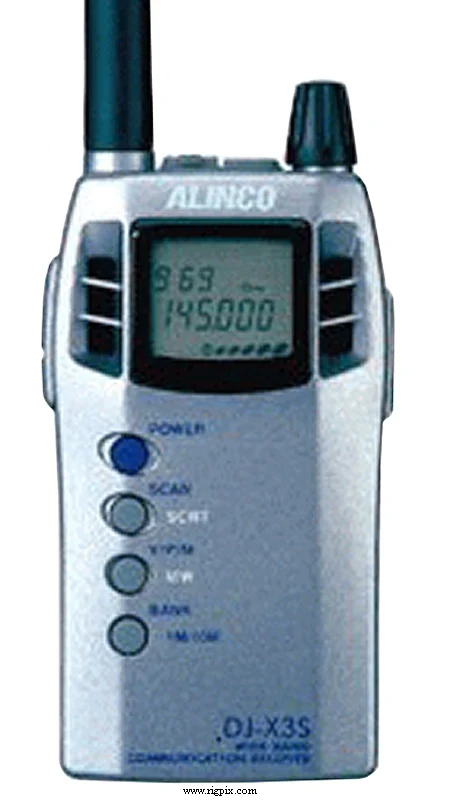

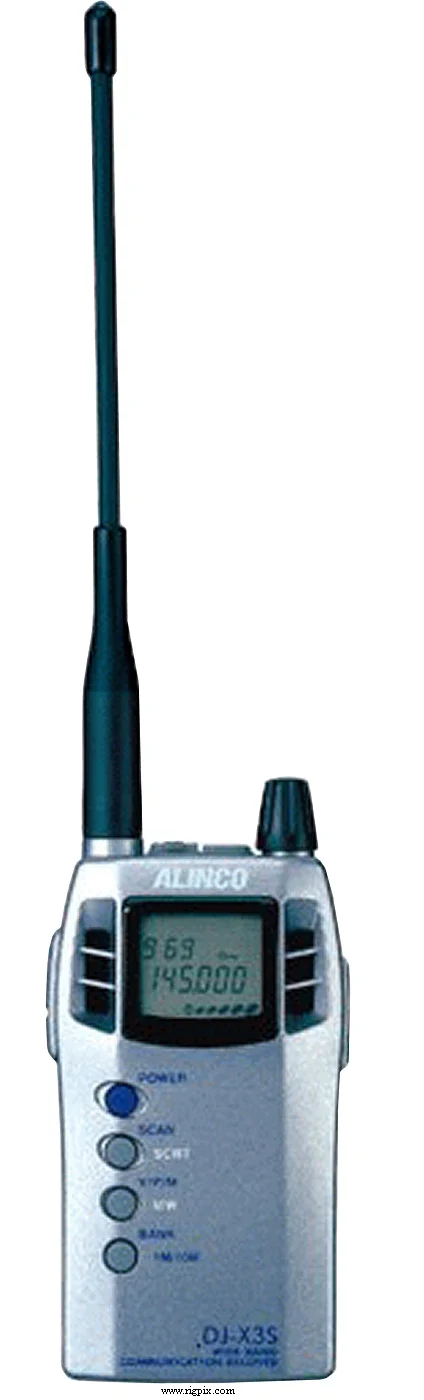

DJ-X3S
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | Japanese domestic market 0.1-1300 MHz |
| Tuning steps | — |
| Frequency stability | ±5 ppm @ -10 to +60°C /14 to 140°F) |
| Mode | AM / FM / WFM |
| Channels / memory management | 700 regular |
| Power supply | 3.6-4.5 VDC (Three LR6 / AA batteries) or 4.5-16 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 56*102*23 mm (2.2*4.02*0.9") |
| Weight | 145 g (5.12 oz), with batteries and antenna) |
| Other features | — |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 248.45 MHz 2nd IF: 38.85 MHz 3rd IF: 450 KHz |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 220 mW at ?% distortion / 8 ohm |
| External speaker connector | 3.5 mm |
MISCELLANEOUS
| Manufactured | Japan, 200x-2010 (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
