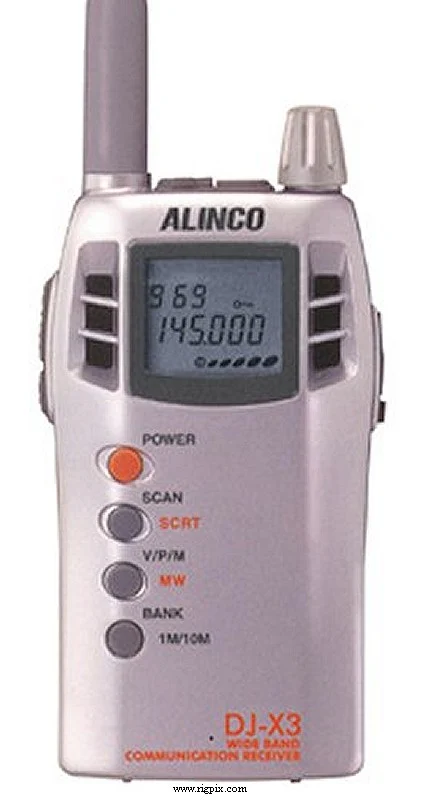

DJ-X3T
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | USA 0.1-824 / 850-869 / 895-1000 MHz |
| Tuning steps | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability | ±5 ppm @ -10 to +60°C /14 to 140°F) |
| Mode | AM / FM / WFM |
| Channels / memory management | 700 regular in 10 banks 100 skip 8 priority 20 program scan pairs 100 search pass (Skip) Non-volatile EEPROM storage |
| Power supply | 3.6-4.5 VDC (Three R6 / AA batteries)or 4.5-16 VDC external |
| Current drain / power consumption | 39-150 mA |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 56*102*23 mm (2.2*4.02*0.9") |
| Weight | 145 g (5.12 oz), with batteries and antenna) |
| Other features | Bug detector. Internal ferrite bar for MW/SW reception. Memory cloning. WFM Stereo with headphones. Backlit display. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 248.45 MHz 2nd IF: 38.85 MHz 3rd IF: 450 KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.5-1.62 MHz: 7 uV 1.62-1300 MHz: 1.8 uV FM (12 dB SINAD) 30-550 MHz: 0.7 uV 550-1300 MHz: 1 uV WFM (12 dB SINAD) 50-1300 MHz: 4.5 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | AM/FM: 12 KHz (-6 dB), 30 KHz (-60 dB) WFM: 150 KHz (-6 dB) |
| Image rejection | — |
| AF output power / speaker | 220 mW at ?% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
MISCELLANEOUS
| Manufactured | Japan and Philippines, 2000-2012 (Discontinued) |
|---|---|
| Additional info | New price 2001 in the UK: £129.95 New price 2004 in Sweden: SEK 1590:- |
| EBP-52NS EDC-92 EDC-93 EDC-105 EDH-31S | NiMH battery pack AC adapter (117 VAC) AC adapter (230 VAC) Battery charger Battery case. Three R6 / AA batteries |
