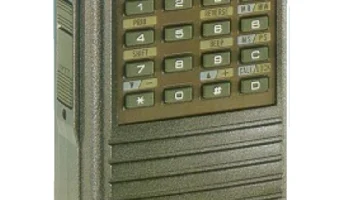

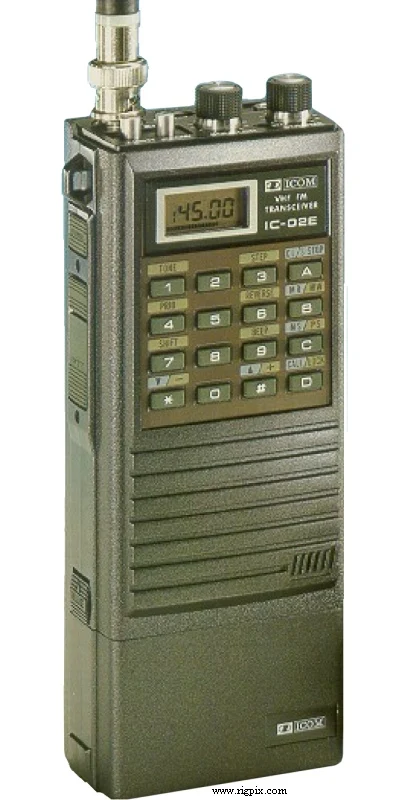

IC-02E
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 140-150 MHz |
| Tuning steps | 12.5 / 25 KHz |
| Frequency stability | 0.002% @ -10 to +60°C (14 to 140°F) |
| Mode | FM |
| Channels / memory management | 10 regular RAM storage with backup battery |
| Repeater shift / offset | ± any offset programmable |
| Power supply | 7.2-13.2 VDC (Depending on battery pack)or 5.5-16 VDC external (Male barrel jack, center positive) |
| Current drain / power consumption | RX: 35-150 mA @ 8.4 VDCTX: 0.45-1.05 A @ 8.4 VDC |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 65*117*35 mm (2.56*4.6*1.38"), without battery pack |
| Weight | 515 g (1.13 lb), with BP-3 and antenna |
| Other features | 1750 Hz tone burst. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 16.9 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity | Less than 0.1 uV (Threshold) |
| Noise figure | — |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 500 mW at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | High@ 13.2VHigh@ 8.4VLow 2 m:5 W3 W500 mW |
|---|---|
| 2 m | 5 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | ? ohm / TS «Subminijack» (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1983-1990 (Discontinued) |
|---|---|
| Additional info | — |
| BC-25E BC-25U BC-35 BP-2 BP-3 BP-4 BP-5 BP-7 BP-8 CP-1 | Battery charger (Europe) Battery charger (USA) Desktop rapid charger NiCd bettery pack. 7.2 V, 450 mAh NiCd bettery pack. 8.4 V, 270 mAh Battery case for six R6 / AA alkaline or NiCd cells NiCd battery pack. 10.8 V, 450 mAh NiCd battery pack. 13.2 V, 450 mAh NiCd battery pack. 8.4 V, 800 mAh Cigarette lighter cable |
