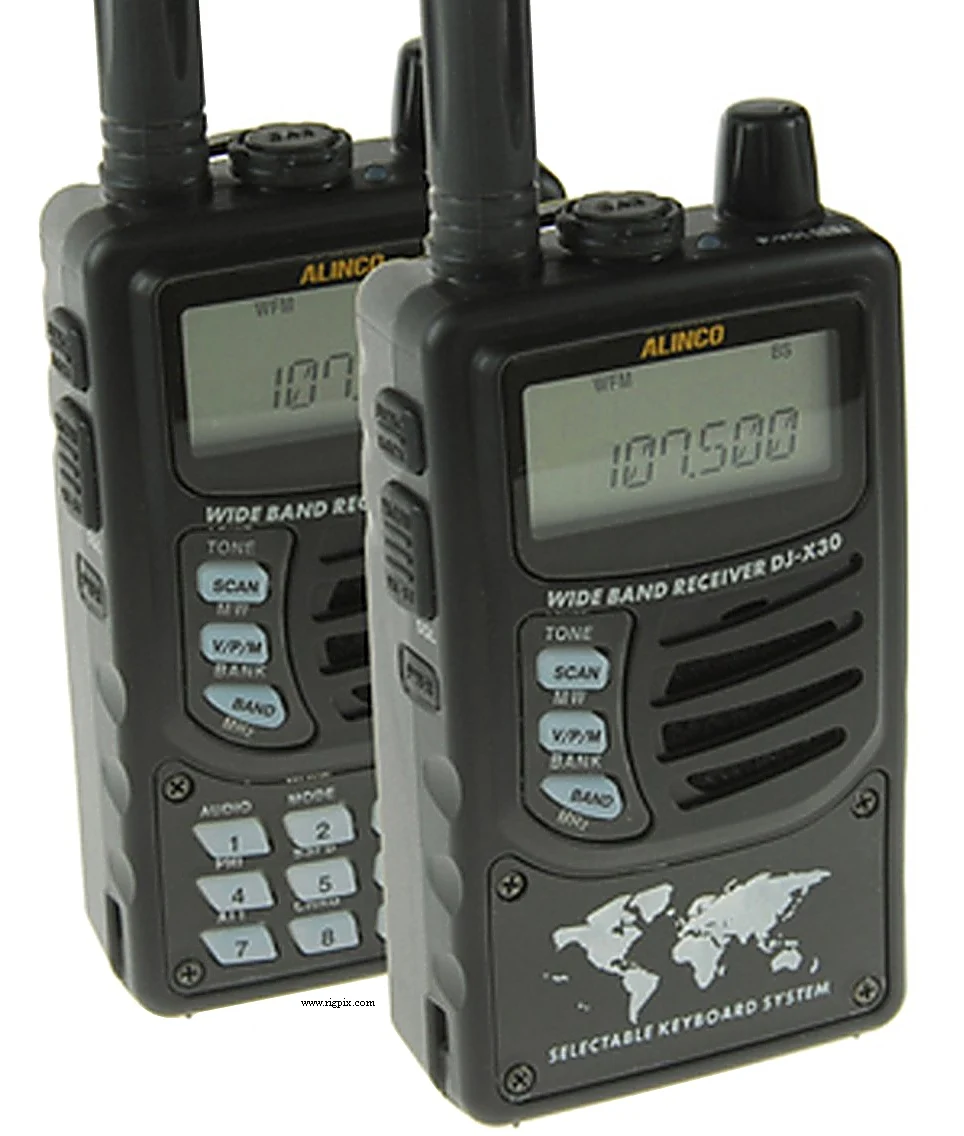

DJ-X30E
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | Europe 0.1-1300 MHz |
| Tuning steps | 1 / 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 2025 / 30 / 50 / 100 / 125 / 150 / 200 / 500 KHz and 1 MHz |
| Frequency stability | -7 to +3 ppm @ -10 to +60°C (14 to 140°F) |
| Mode | AM / FM / WFM |
| Channels / memory management | 1000 regular in 10 banks with alpha tags (6 characters) 50 scan edge pairs (Program scan) 100 Skip 100 priority Non-volatile EEPROM storage |
| Power supply | 2.4-3 VDC (Two R6/AA batteries) or 5.4-6 VDC external |
| Current drain / power consumption | 26-140 mA |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*99*32 mm (2.28*3.9*1.26") |
| Weight | 165 g (5.82 oz), with EBP57 and antenna |
| Other features | CTCSS/PL with tone squelch and tone scan. Alpha tags. Attenuator. PC-programmable. Ferrite bar antenna for MW/SW reception. Selectable simple/advanced keyboard system. Cloning. Speech de-scrambler. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne (WFM) 1st IF: 243.95 MHz 2nd IF: 10.7 MHz Triple conversion superheterodyne (AM/FM) 1st IF: 243.95 MHz 2nd IF: 39.15 MHz 3rd IF: 450 KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.1-50 MHz: 0.89 uV 50-1300 MHz: 0.5 uV FM (12 dB SINAD) 30-470 MHz: 0.17 uV 470-1300 MHz: 0.45 uV WFM (12 dB SINAD) 76-470 MHz: 0.5 uV 470-1300 MHz: 0.7 uV |
| Selectivity | AM/FM: 12 KHz (-6 dB)35 KHz (-60 dB) WFM: 130 KHz (-6 dB)300 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 100 mW at ?% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 2006-20xx (Discontinued) |
|---|---|
| Additional info | — |
| EBP-57N EDC-139 EDC-140 EDC-154A EDC-154E EDC-154UK EDS-12 EDH-33 EME-6 EME-26 ERW-4C ERW-7 ESC-44 | NiMH battery pack. 2.4 V, 1800 mAh AC adapter/charger (120 VAC) AC adapter/charger (220 VAC) Trickle charger stand (USA) Trickle charger stand (Europe) Trickle charger stand (UK) Remote controller Cigarette lighter cable with DC/DC-converter Earphone Spiral cord earphone PC programming cable (RS-232C) PC programming cable (USB) Softcase |
