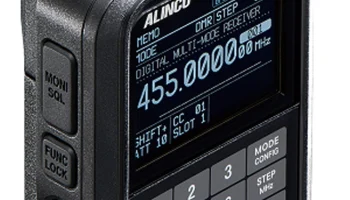

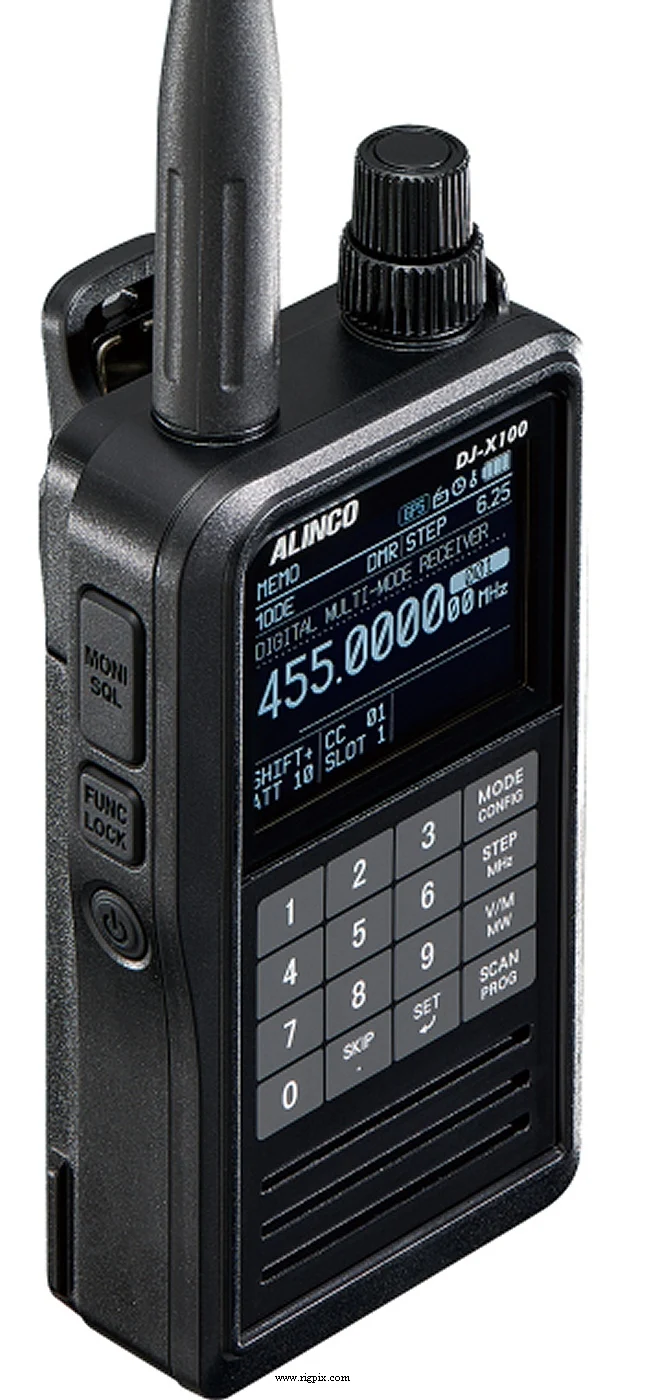

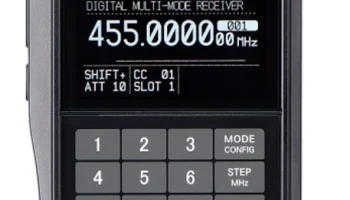

DJ-X100E
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | Europe 30-470 MHz |
| Tuning steps | 1 / 3.125 / 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 150 / 200 KHz |
| Frequency stability | -7 to +3 ppm @ -10 to +60°C (-4 to +140°F) |
| Mode | Analog: AM / NAM / FM / NFM (Not between 76-108 MHz) WFM (76-108 MHz only) DV modes (Not between 76-108 MHz): D-Star DCR/NXDN DMR/MotoTRBO dPMR Yaesu C4FM «Fusion» Data modes (Not between 76-108 MHz): ACARS AIS |
| Channels / memory management | 999 regular in 26 banks 50 search pairs Alpha tags (14 or 28 characters, depending on font size) |
| Power supply | 3.6 VDC (Li-Ion battery pack) or 4.5 VDC (Optional alkaline battery case) or 5 VDC external (USB-C jack) |
| Current drain / power consumption | 150-500 mA |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*110*32 mm (2.28*4.33*1.26") |
| Weight | 260 g (9.17 oz), with EBP-114 and antenna |
| Other features | CTCSS/PL and DCS decoder. 2" color TFT (320*240 pixels). GPS receiver for positioning and location based scanning. USB-C jack for charging, external power and PC programming. The headphone cord can also be used as an antenna. Voice inversion descrambler. F-Count (Tunes to nearby transmissions, similar to Bearcat Close Call). 12 KHz IF output. IP67 resistant. DSP/SDR technology. |
RECEIVER SECTION
| Receiver system | Direct conversion (WFM) Triple conversion superheterodyne (AM/NAM/FM/NFM/DV) 1st IF: 243.95 MHz 2nd IF: 50.85 MHz 3rd IF: 450 KHz |
|---|---|
| Sensitivity | AM/NAM: 1.25 uV (10 dB S/N) FM/NFM: 0.3 uV (12 dB SINAD) WFM: 0.8 uV (12 dB SINAD) T98: 0.3 uV (BER 1%) DMR: 0.45 uV (BER 1%) D-Star: 0.3 uV (BER 1%) C4FM: 0.45 uV (BER 1%) AIS: 0.56 uV (BER 1%) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 400 mW at 10% distortion / 8 ohm |
| External speaker connector | TRS «Minijack» (3.5 mm) |
MISCELLANEOUS
| Manufactured | Japan, 2024-202x |
|---|---|
| Additional info | New price, july 2025 in Sweden: SEK 7495:- New price, july 2025 in the UK: £499.99 |
| EA-295 EBC-65 EBP-114 EDC-325T EDC-352 EDH-46 EDS-39 ESC-65 | Rubber antenna Belt clip Li-Ion battery pack. 3.6 V, 3120 mAh Quick charging stand + AC adapter AC adapter Battery case (Three LR6 / AA alkaline batteries) USB-C cable Soft case |
