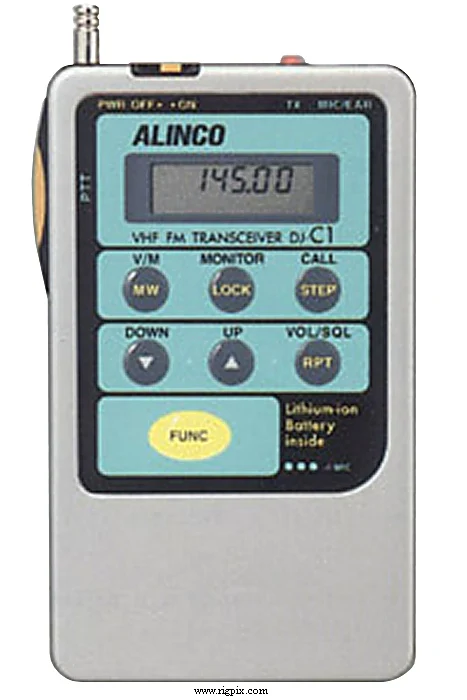

DJ-C1T
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 MHz RX: 118-174 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | Max? ppm |
| Mode | TX: FMRX: AM / FM |
| Channels / memory management | 20 regular 1 call |
| Repeater shift / offset | ±0 to 99.995 MHz |
| Power supply | 3.7 VDC (Li-Ion battery) |
| Current drain / power consumption | RX: 30 mA (Squelched)TX: 240 mA |
| Antenna impedance / connector | ? ohm / Fixed telescopic whipA clip-on wire antenna is also included |
| Dimensions (W*H*D) | 56*94*11 mm (2.2*3.7*0.43") |
| Weight | 75 g (2.65 oz), with battery |
| Other features | CTCSS/PL encoder. 1750 Hz tone call. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 21.7 MHz 2nd IF: 450 KHz |
|---|---|
| Sensitivity | 0.16 uV (No reference) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 20 mW at ?% distortion / No internal speaker |
| External speaker connector | 32 ohm |
TRANSMITTER SECTION
| RF output power | 300 mW |
|---|---|
| Modulation system | Reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1997-19xx (Discontinued) |
|---|---|
| Additional info | — |
| Options / Accessories: NB! Some accessoriesrequire EDS-7 | EDC-76K EDC-77K EDC-36 EDH-26 EDS-7 EME-2 EME-3 EME-4 EME-16 EME-17 EMS-9 EMS-47 Wall charger. 120 VAC Wall charger. 220 VAC Car charging cable (For use with EDH-26) Charger tray (Part of EDC-76K/77K) Conversion cable Earphone-microphone (Tie-pin type, straight plug) Earphone (Straight plug) Earphone-microphone (Tie-pin type) Earphone-microphone (Tie-pin type) Earphone-microphone (Telephone operator type) Speaker-microphone Speaker-microphone |
| EDC-76K EDC-77K EDC-36 EDH-26 EDS-7 EME-2 EME-3 EME-4 EME-16 EME-17 EMS-9 EMS-47 | Wall charger. 120 VAC Wall charger. 220 VAC Car charging cable (For use with EDH-26) Charger tray (Part of EDC-76K/77K) Conversion cable Earphone-microphone (Tie-pin type, straight plug) Earphone (Straight plug) Earphone-microphone (Tie-pin type) Earphone-microphone (Tie-pin type) Earphone-microphone (Telephone operator type) Speaker-microphone Speaker-microphone |
