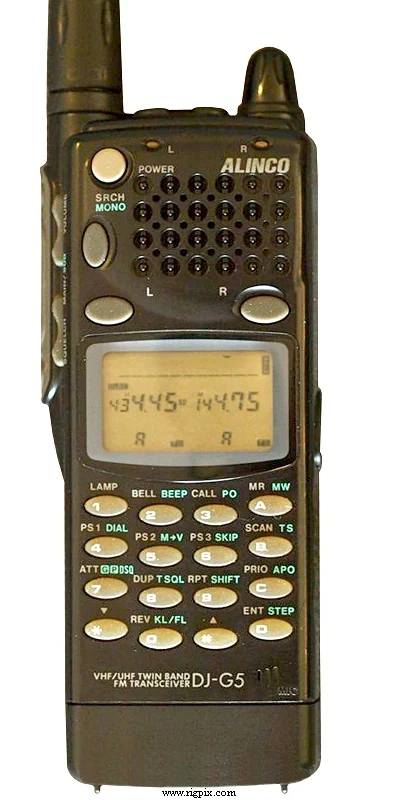

DJ-G5T
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 / 438-450 MHz RX: 108-174 / 420-480 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±? ppm |
| Mode | TX: FMRX: AM / FM |
| Channels / memory management | 160 regular (80 per band), expandable 2 call (1 per band) 20 DTMF auto-dialer 6 scan edge pairs (3 per band) Priority function |
| Repeater shift / offset | ±0 to 16 MHz in 5 KHz steps |
| Power supply | 4.5-9.6 VDC (Depending on battery pack)or 4.5-16 VDC external |
| Current drain / power consumption | RX: 25-85 mA (Squelched)TX: Max 1.5 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 57*138*28 mm (2.24*5.45*1.1") |
| Weight | 350 g (12.35 oz), with EBP-33N, belt clip and antenna |
| Other features | CTCSS/PL. DTMF keypad and DSQ paging. Channel scope. Sweep scan. Attenuator. Full duplex. 1750 Hz tone call. Backlit display and keypad. Cloning. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 38.9 MHz (VHF) — 45.1 MHz (UHF) 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 2 m: 0.16-0.25 uV (12 dB SINAD) 70 cm: 0.16-0.25 uV (12 dB SINAD) |
| Selectivity | 12 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 100 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | High@13.8VHigh@7.2VHigh@4.8VMidLow 2 m:5 W3.5 W1.5 W1 W300 mW 70 cm:5 W3 W1 W1 W300 mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1996-199x (Discontinued) |
|---|---|
| Additional info | — |
| EBP-33N EBP-34N EBP-35N EBP-36N EBP-37N EDC-36 EDC-37 EDC-60 EDC-61 EDC-63 EDC-64 EDH-16 EMS-8 ESC-28 ESC-29 ESC-30 | NiCd battery pack. 4.8 V, 650 mAh NiCd battery pack. 4.8 V, 1200 mAh NiCd battery pack. 7.2 V, 900 mAh NiCd battery pack. 9.6 V, 650 mAh NiCd battery pack (Low cost type). 4.8 V, 700 mAh Cigarett lighter DC cable with filter DC cable Rapid charger (120 VAC) Rapid charger (220 VAC) Standard charger (120 VAC) Standard charger (220 VAC) Dry cell battery case. Four LR6 / AA batteries Remote control speaker-microphone Soft case, for use with EBP-33N Soft case, for use with EBP-37N Soft case, for use with EBP-34/35/36N |
