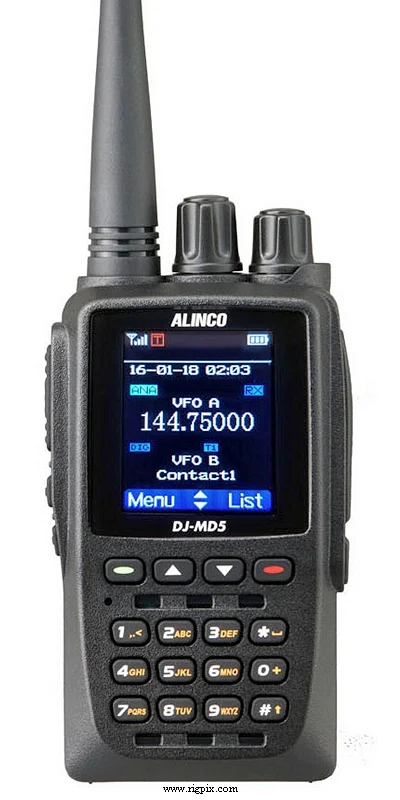

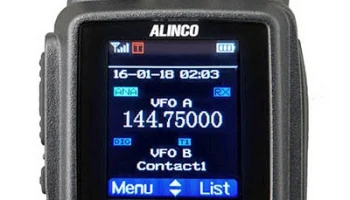

DJ-MD5E
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 136-174 / 400-480 MHz RX: 76-108 / 136-174 / 400-480 MHz |
| Tuning steps | 12.5 / 25 KHz |
| Frequency stability | ±2.5 ppm (No temperature reference) |
| Mode | TX: FM / NFM / DMR (Tier I and II)RX: FM / NFM / WFM / DMR (Tier I and II) |
| Channels / memory management | 4000 regular 250 zones 100 WFM broadcast |
| Repeater shift / offset | Freely programmable |
| Power supply | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption | RX:? mATX:? A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 59*118*40 mm (2.32*4.65*1.57") |
| Weight | 256 g (9.03 oz), with battery |
| Other features | CTCSS/PL, DTMF, 2-tone and 5-tone. 1.77" color display. Digital voice recorder. Four different tone bursts. VFO. VOX. FM/DMR autodetect. 10000 talk groups. 160000 contacts. |
RECEIVER SECTION
| Receiver system | — |
|---|---|
| Sensitivity | FM: 0.25 uV (12 dB SINAD) NFM: 0.35 uV (12 dB SINAD) DMR: 0.3 uV (5% BER), 0.7 uV (1% BER) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 1 W at 5% distortion / 16 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | TurboHighMidLow 2 m:5 W2.5 W1 W200 mW 70 cm:5 W2.6 W1 W200 mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | — |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -36 dBm (below 1 GHz)Better than -30 dBm (above 1 GHz) |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 2018-20xx |
|---|---|
| Additional info | — |
| EA-228 EBC-34 EBP-87 EBP-88 EDC-189A EDC-191E EDC-191T EME-56A EMS-76 ERW-21 | Dual band rubber antenna Belt clip Li-Ion battery pack. 7.4 V, 1500 mAh Li-Ion battery pack. 7.4 V, 1700 mAh Li-Ion battery drop-in charger AC adaptor. 220-230 VAC (Europe) AC adaptor. 110-120 VAC (USA) Earphone-microphone Speaker-microphone PC interface cable |
