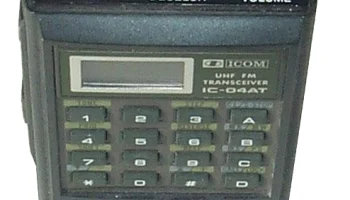

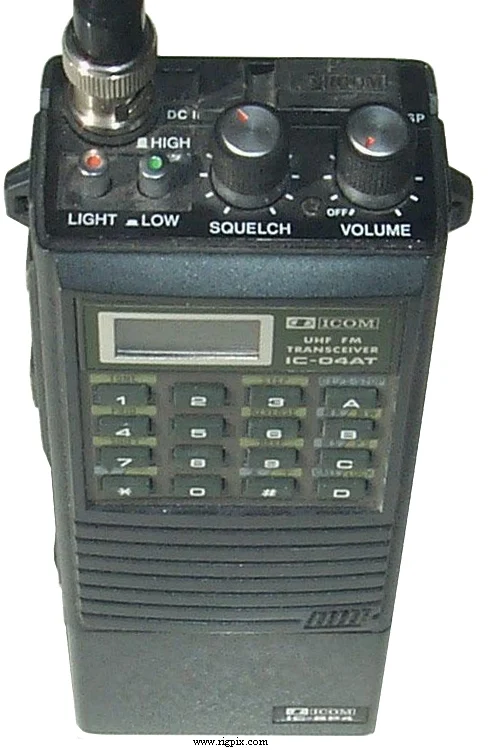

IC-04AT
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | USA TX: 440-450 MHz RX: 440-450 MHz Australia TX: 430-440 MHz RX: 430-440 MHz |
| Tuning steps | 5 / 10 / 15 / 20 / 25 KHz |
| Frequency stability | 0.001% @ -10° to +60° C (+14° to +140° F) |
| Mode | FM |
| Channels / memory management | 7 regular (M2 to M8) 1 Call (M1), also serves as priority channel 2 program scan edges (M9 and M0) |
| Repeater shift / offset | ±0 to 9.99 MHz in 10 KHz steps |
| Power supply | 5.5-16 VDC (Battery pack)or 11-16 VDC external (Male barrel jack, center positive) |
| Current drain / power consumption | RX: 45-150 mATX: ~1.25 A @ 2.5 W |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 65*117*35 mm (2.56*4.6*1.38"), without battery pack |
| Weight | 515 g (1.13 lb), with BP-3 and supplied antenna |
| Other features | Backlit display. CTCSS/PL encoder. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 21.8 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.3 uV (12 dB SINAD) |
| Squelch sensitivity | Less than 0.1 uV (Threshold) |
| Noise figure | — |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 500 mW at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | HighLow 70 cm:2.5-5 W500 mW NB! The High output level depends on battery pack/voltage |
|---|---|
| 70 cm | 2.5-5 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | ? ohm / TS «Subminijack» (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1983-1990 (Discontinued) |
|---|---|
| Additional info | New price 1989 in the US: $389.95 |
| Modifications | — |
| BC-16U BC-25U BC-30 BC-35 BP-2 BP-3 BP-4 BP-5 BP-7 BP-8 CP-1 HM-9 HS-10 HS-10SA HS-10SB LC-11 LC-12 LC-14 | Wall charger (USA). For BP-7 and BP-8 Wall charger (USA) Desk rapid charger Desk rapid charger NiCd battery pack. 7.2 V, 450 mAh NiCd battery pack. 8.4 V, 270 mAh Battery case. For six LR6 / AA dry cells or NiCd's NiCd battery pack. 10.8 V, 450 mAh NiCd battery pack. 13.2 V, 450 mAh NiCd battery pack. 8.4 V, 800 mAh Cigarette lighter cable Speaker-microphone Headset Vox unit for HS-10 PTT switch box for HS-10 Carrying case. For use with BP-2, BP-3 and BP-4 Carrying case. For use with BP-5 Carrying case. For use with BP-7 and BP-8 |
