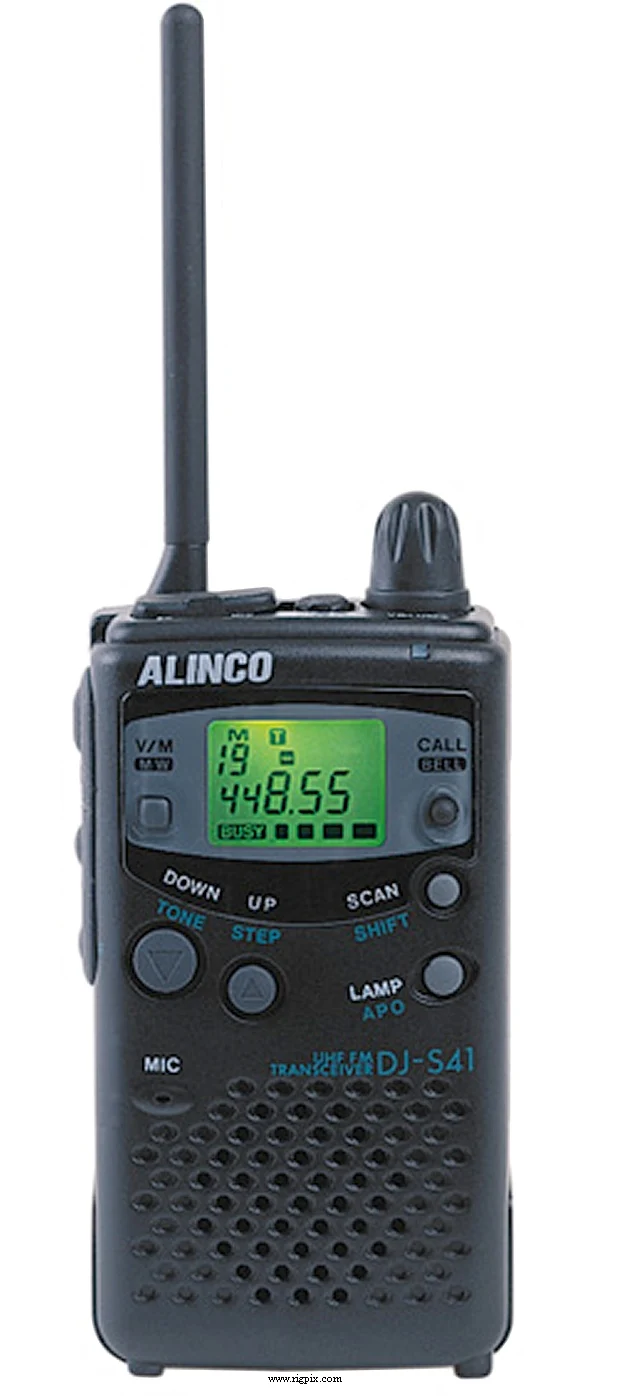

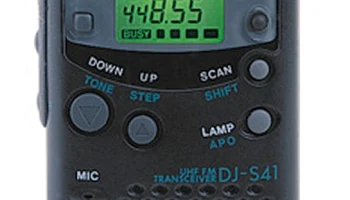

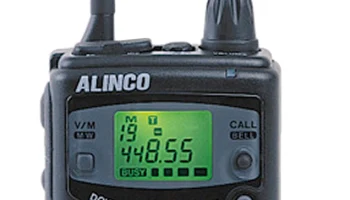

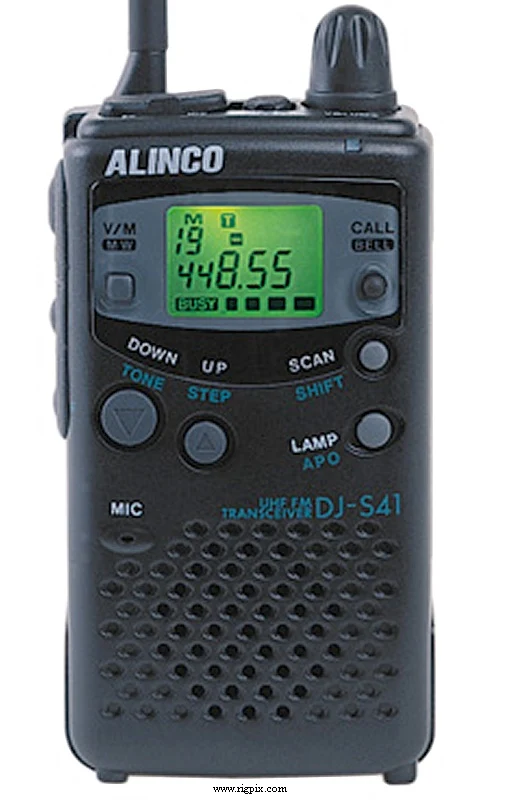

DJ-S41T
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | USA TX: 425-450 MHz RX: 425-450 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | 20 regular 1 call |
| Repeater shift / offset | ±0 to? MHz |
| Power supply | 3.6-4.5 VDC (EBP-25N or three LR6 / AA batteries)5.5 VDC external |
| Current drain / power consumption | RX: 33 mA (Squelched)TX: 260 mA |
| Antenna impedance / connector | — / Non-removable hinged antenna |
| Dimensions (W*H*D) | 55*100*28 mm (2.16*4.*1.1") |
| Weight | 185 g (6.53 oz), with three LR6 / AA batteries |
| Other features | CTCSS/PL encoder. Roger beep. Backlit display. 1750 Hz tone call. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 23.05 MHz 2nd IF: 450 KHz |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 100 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighLow 70 cm:340 mW50 mW |
|---|---|
| 70 cm | 340 mW |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 199x-199x (Discontinued) |
|---|---|
| Additional info | This little transceiver was also released in a version for the European LPD band as DJ-S41C. |
| EBC-6 EBP-25N EDC-78 EDC-79 EDH-18 EME-4 EME-12 EME-13 EME-15 EMS-9 ESC-27 MW-818 | Mobile bracket NiCd battery pack Battery charger (120 VAC) Battery charger (220 VAC) Cigarett lighter DC cable with DC/DC-converter to 5.5 V Earphone-microphone Headset with VOX (Earpad type) Headset with VOX (Earphone type) Tie-pin microphone and earphone with VOX Speaker-microphone Soft case Battery charger (220 VAC) |
