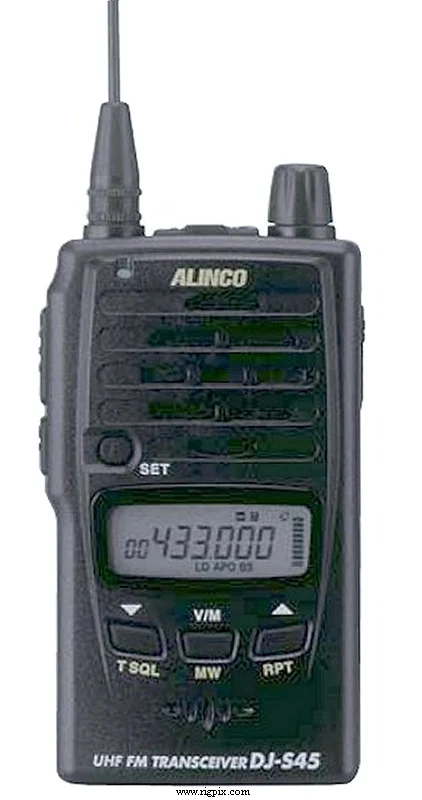

DJ-S45T
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | USA TX: 420-450 MHz RX: 420-474 MHz |
| Tuning steps | 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±5 ppm (No temperature reference) |
| Mode | FM |
| Channels / memory management | 100 regular |
| Repeater shift / offset | ±0 to 99.995 MHz in 5 KHz steps |
| Power supply | 3-6 VDC (Li-Ion pack or two LR6 / AA batteries)or 3-6 VDC external |
| Current drain / power consumption | RX: 60 mATX: Max 1 A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 57*98*28 mm (2.24*3.86*1.1") |
| Weight | 162 g (5.71 oz), with batteries and antenna |
| Other features | CTCSS/PL with tone scan. PC-programmable. Cloning. Roger beep. 1000 / 1450 / 1750 / 2100 Hz tone call. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 21.7 MHz 2nd IF: 450 KHz |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Selectivity | 12 KHz (-6 dB)35 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 150 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | High@6VHigh@2.4VLow@6VLow@2.4 70 cm:2 W400 mW500 mW150 mW |
|---|---|
| 70 cm | 2 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 2005-20xx |
|---|---|
| Additional info | — |
| EBP-60 EDC-138A EDC-138E EDC-138R EDC-138UK EDH-33 EME-6 EME-12A EME-13A EME-15A EME-21A EME-23A EME-26 EMS-59 ESC-40 | Li-Ion battery pack. 3.7 V, 1200 mAh Rapid charger (120 VAC) Rapid charger (240 VAC) Additional charger basket Rapid charger (240 VAC, UK plug) Cigarette lighter DC/DC-converter Earphone Headset with VOX (Speaker type) Headset with VOX (Earphone type) Tie-pin microphone with VOX Earphone-microphone (Heavy duty) Earphone-microphone Curled cord earphone Speaker-microphone Soft case |
