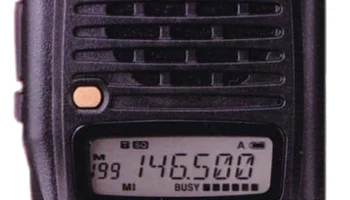

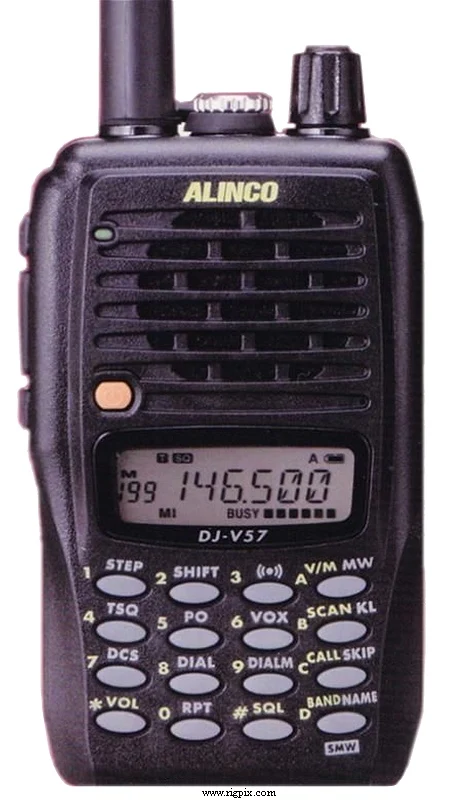

DJ-V57T
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 / 420-450 MHz RX: 136-174 / 400-512 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 KHz |
| Frequency stability | ±2.5 ppm (No temperature reference) |
| Mode | FM |
| Channels / memory management | 200 regular with alpha tags (7 characters) 1 call 2 program scan |
| Repeater shift / offset | ±0 to 99.995 MHz in 5 KHz steps |
| Power supply | 7-9 VDC (Depending on battery pack) or 7-16 VDC external |
| Current drain / power consumption | RX: 27-250 mATX: Max 1.9 A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*110*34 mm (2.28*4.33*1.34"), with EBP-63 |
| Weight | 270 g (9.6 oz), with antenna and EBP-63 |
| Other features | CTCSS/PL and DCS. DTMF keypad. IPX7 compliant. VOX. 1000 / 1450 / 1750 / 2100 Hz tone call. Cloning. Attenuator. Backlit display and keypad. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 38.85 MHz 2nd IF: 450 KHz |
|---|---|
| Sensitivity | 2 m: 0.2 uV (12 dB SINAD) 70 cm: 0.25 uV (12 dB SINAD) |
| Selectivity | 12 KHz (-6 dB)35 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 400 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | High@13.8VHigh@7.2VMidLow 2 m:5 W5 W2 W500 mW 70 cm:5 W4.5 W2 W500 mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 20xx-20xx (Discontinued) |
|---|---|
| Additional info | — |
| EBP-63 EBP-64 EBP-65 EBP-66 EDC-36 EDC-37 EDC-43 EDC-143E EDC-143R EDC-143T EDC-143UK EDC-144A EDC-144E EDC-144R EDC-144UK EDC-146 EDC-147 EDC-148 EDC-159E EDC-159T EDC-160E EDC-160T EDH-34 EDS-11 EDS-14 EME-4 EME-6 EME-12A EME-13A EME-15A EME-32A EME-34A EME-36A EMS-47 EMS-59 EMS-62 ERW-7 ESC-41 | Li-Ion battery pack. 7.4 V, 1100 mAh Li-Ion battery pack. 7.4 V, 1600 mAh NiMH battery pack. 7.2 V, 700 mAh NiMH battery pack. 7.2 V, 2000 mAh Cigarette lighter cable with noise filter DC power cable Cigarette lighter cable charging NiMH packs Trickle charger (240 VAC) Multiple-charger basket Trickle charger (120 VAC) Trickle charger (240 VAC, UK plug) Rapid charger (120 VAC) Rapid charger (240 VAC) Multiple-charger basket Rapid charger (240 VAC, UK plug) Wall charger (120 VAC) Wall charger (230 VAC) Wall charger (230 VAC, UK plug) Rapid Li-Ion battery charger (230 VAC) Rapid Li-Ion battery charger (120 VAC) Rapid NiMH battery charger (230 VAC) Rapid NiMH battery charger (120 VAC) Dry cell case (Six LR6 / AA batteries) Cloning cable Microphone/Speaker cable Earphone-microphone Earphone Headset with VOX Earphone and mic with VOX Tie-pin mic with VOX Heavy duty earphone-microphone Earphone-microphone Earphone-microphone Speaker-microphone with audio control Speaker-microphone Speaker-microphone PC programming cable (USB) Soft case |
