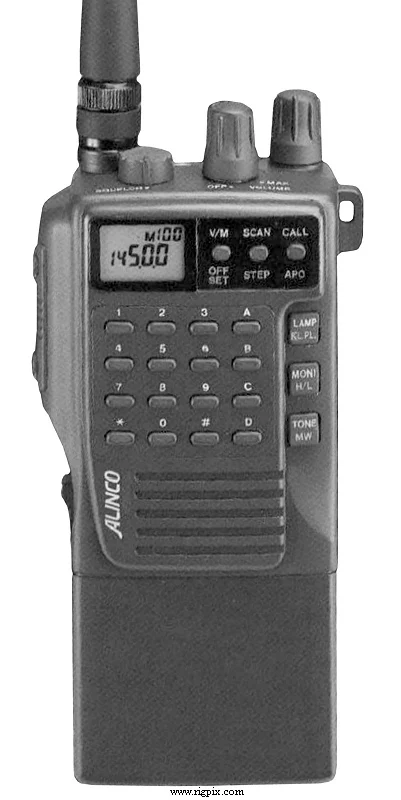

DJ-180E
Источник:
GENERAL
| Type | Amateur *** transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 137-174 MHz NB! The extended RX frequency range may require modification |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | 10 regular (50 or 200 channel option) 1 call |
| Repeater shift / offset | ±0 to 15.995 MHz in 5 KHz steps |
| Power supply | 7-12 VDC (Depending on battery pack)or 5.5-13.8 VDC external |
| Current drain / power consumption | RX:? mATX: Max? A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 58*132*33 mm (2.28*5.2*1.3") |
| Weight | 350 g (12.35 oz) |
| Other features | DTMF. 1750 Hz tone call. CTCSS/PL option. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 21.4 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.15 uV (12 dB SINAD) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | High@12VHigh@7.2VLow 2 m:5 W2 W? mW |
|---|---|
| 2 m | 5 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1996-199x (Discontinued) |
|---|---|
| Additional info | — |
| EBC-6 EBP-24N EBP-26N EBP-28N EDC-49 EDC-50 EDH-11 EDH-12 EJ-13U EJ-14U EJ-15U EJ-17U EME-12 EME-13 EME-15 EMS-9 ESC-18 ESC-19 | Mobile bracket NiCd battery pack, long-life. 7.2 V, 1200 mAh NiCd battery pack. 7.2 V, 700 mAh NiCd battery pack. 12 V, 700 mAh Wall charger (117 VAC) Wall charger (220-240 VAC) Dry cell case (Six LR6 / AA batteries) DC in unit DTMF encoder with keypad (For some versions) 50 channel memory unit 200 channel memory unit Tone squelch unit Headset (Ear hook) Headset (Inner) Tie-pin microphone Speaker-microphone Soft case Soft case |
