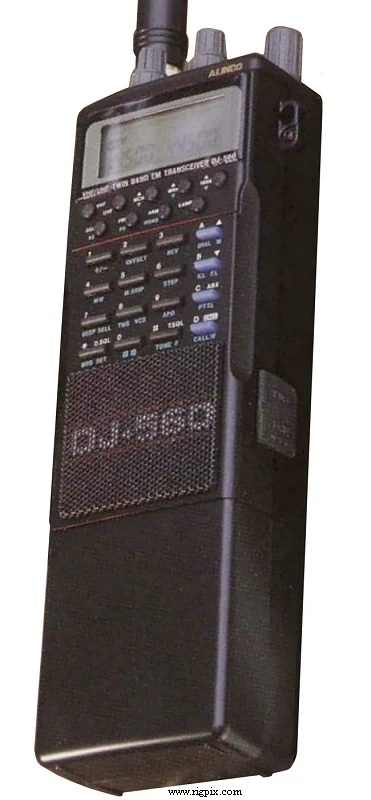

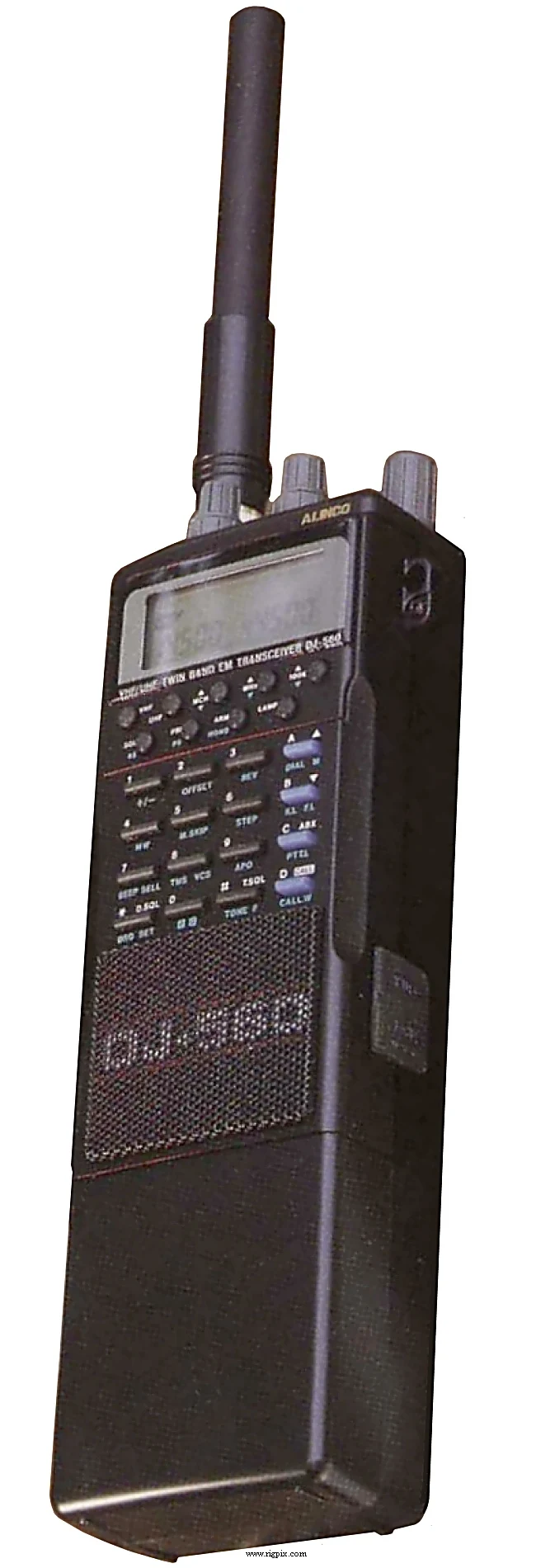

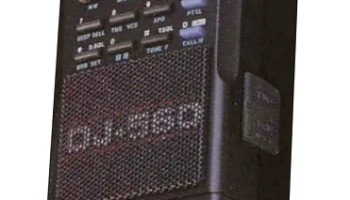

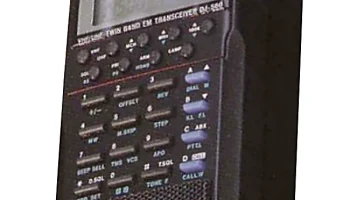

DJ-560E
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 130-174 / 400-520 MHz |
| Tuning steps | 5 / 10 / 12.5 / 20 / 25 KHz |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | 40 regular (20 per band) 2 call (1 per band) 1 scan edge pair (Program scan) Priority function |
| Repeater shift / offset | ±0 to 9.995 MHz in 5 KHz steps |
| Power supply | 7-12 VDC (Depending on battery pack)or 7.2-13.8 VDC external |
| Current drain / power consumption | RX:? mATX: Max 2.4 A |
| Antenna impedance / connector | 50 ohm / ? |
| Dimensions (W*H*D) | 57*169*32 mm (2.24*6.65*1.26") |
| Weight | 440 g (15.52 oz) |
| Other features | CTCSS/PL. DTMF keypad and DSQ paging. 1750 Hz tone call. Backlit display. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 55.05 MHz (VHF) — 58.125 MHz (UHF) 2nd IF: 455 KHz (VHF) — 485 KHz (UHF) |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | 3.5 mm |
TRANSMITTER SECTION
| RF output power | High@12VHigh@7.2VLow 2 m:5 W2 W? mW 70 cm:5 W2 W? mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 199x-199x (Discontinued) |
|---|---|
| Additional info | — |
| EBC-1 EBP-10N EBP-12N EDC-13 EDC-18 EDC-22 EDC-26 EME-4 EME-6 EME-10 EMS-2Z ESC-11 | Belt clip NiCd battery pack. 7.2 V, 700 mAh NiCd battery pack. 12 V, 700 mAh Mobile DC power cable/charger Wall charger for EBP-12N (220/240 VAC) Wall charger for EBP-12N (120 VAC) Mobile DC power cable/charger with noise filter Earphone-microphone with PTT Earphone Headset with PTT/VOX Speaker-microphone Leatherette case for use with EBP-10N |
