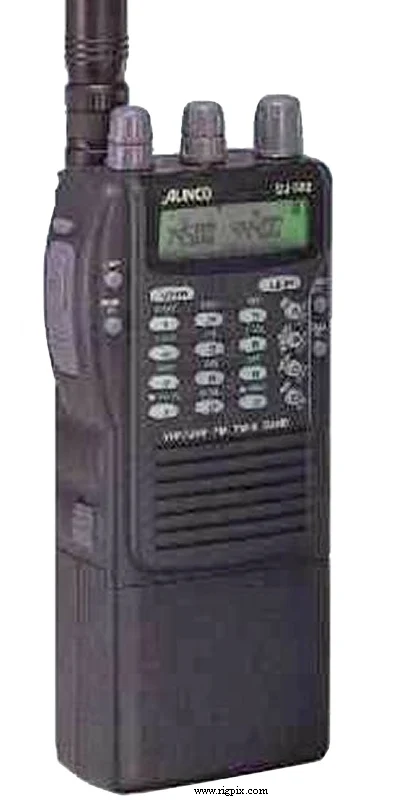

DJ-580E
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 144-146 / 430-440 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | 40 regular (20 per band) 2 call (1 per band) 2 scan edge pairs (1 per band) Priority function |
| Repeater shift / offset | ±0 to 15.995 MHz in 5 KHz steps |
| Power supply | 7-12 VDC (Depending on battery pack)or 13.8 VDC external |
| Current drain / power consumption | RX:? mATX: Max? A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 58*140*33 mm (2.28*5.51*1.3") |
| Weight | 410 g (14.46 oz) |
| Other features | CTCSS/PL option. DTMF keypad and DSQ paging. 1750 Hz tone call. Crossband repeater function. Backlit display. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 55.05 MHz (VHF) — 30.875 MHz (UHF) 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 250 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | High@12VHigh@7.2VLow 1 2 m:5 W2 W? mW 70 cm:5 W2 W? mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 199x-199x (Discontinued) |
|---|---|
| Additional info | — |
| EBP-20N EBP-22N EDC-24 EDC-25 EDC-34 EDC-35 EDC-36 EDC-37 EDC-43 EJ-12U EME-6 EME-10K EME-11 EMS-2Z EMS-8Z ESC-17 | NiCd battery pack. 7.2 V, 700 mAh NiCd battery pack. 12 V, 700 mAh Wall charger for EBP-20N (120 VAC) Wall charger for EBP-20N (220/240 VAC) Quick charger (120 VAC) Quick charger (220/240 VAC) Mobile DC power cable/charger with noise filter DC power cable Mobile DC power cable/charger CTCSS/PL unit Earphone Headset with PTT/VOX Earphone-microphone with VOX Speaker-microphone Remote control speaker-microphone Soft case |
