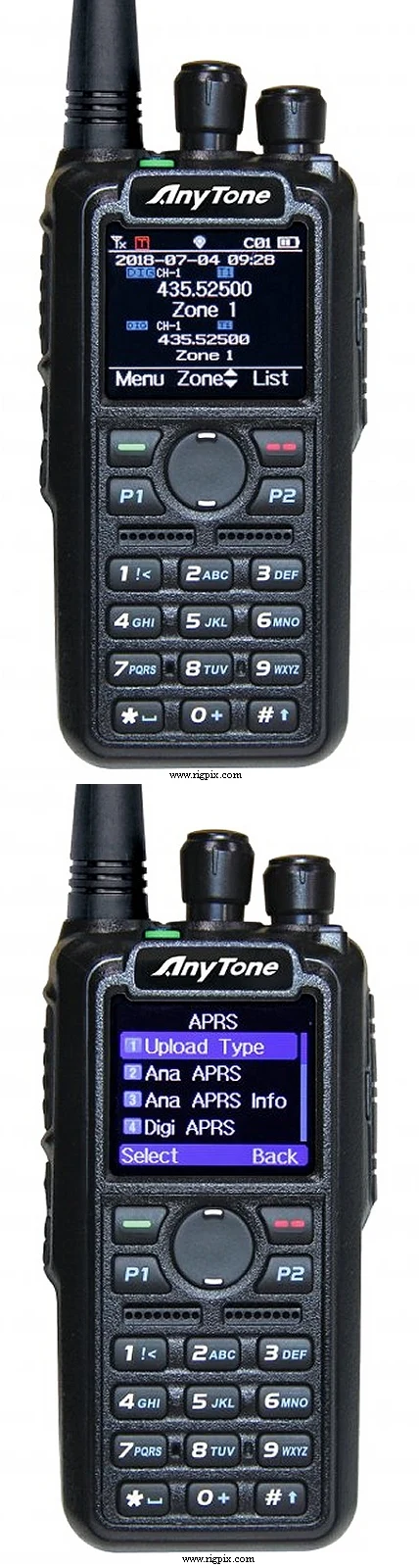

AT-D878UVII Plus
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | 136-174 / 400-480 MHz |
| Tuning steps | 5 / 6.25 KHz |
| Frequency stability | ±2.5 ppm @ -20 to +55°C (-4 to +131°F) |
| Mode | FM / NFM / DMR (Tier I & II) |
| Channels / memory management | 4000 regular |
| Repeater shift / offset | ± |
| Power supply | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption | RX:? mATX:? A |
| Antenna impedance / connector | 50 ohms / SMA |
| Dimensions (W*H*D) | 61*129*39 mm (2.4*5.08*1.54") |
| Weight | 282 g (9.95 oz), with 2100 mAh battery pack and antenna |
| Other features | Analog APRS (TX/RX) and DMR APRS (TX/RX). Roaming. Bluetooth. DTMF. 1.7" TFT display. 10000 talk groups and 500000 contacts. Auto-sense DMR or FM reception. VFO. GPS. CTCSS/PL. 2 & 5-tone selcall. |
RECEIVER SECTION
| Receiver system | — |
|---|---|
| Sensitivity | FM: 0.25 uV (12 dB SINAD) NFM: 0.35 uV (12 dB SINAD) DMR: 0.3 uV (BER 5%) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | FM: 70 dB (Adjacent channel)NFM: 60 dB (Adjacent channel) |
| Image rejection | — |
| AF output power / speaker | 1 W at 5% distortion / 16 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighMidLow 1Low 2 2 m:7 W5 W2.5 W200 mW 70 cm:6 W5 W2.5 W200 mW |
|---|---|
| 2 m | 7 W |
| 70 cm | 6 W |
| Modulation system | DMR: 4FSK |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -36 dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | China, 202x-202x |
|---|---|
| Additional info | New price 2021 in Sweden: SEK 2695:- (Including Bluetooth PTT button) |
| HS05 PC05???? ? | Earphone Programming cable, USB Li-Ion battery pack. 2100 mAh Li-Ion battery pack. 3100 mAh Programming software Car charger Battery eliminator with cigarrette lighter plug |
