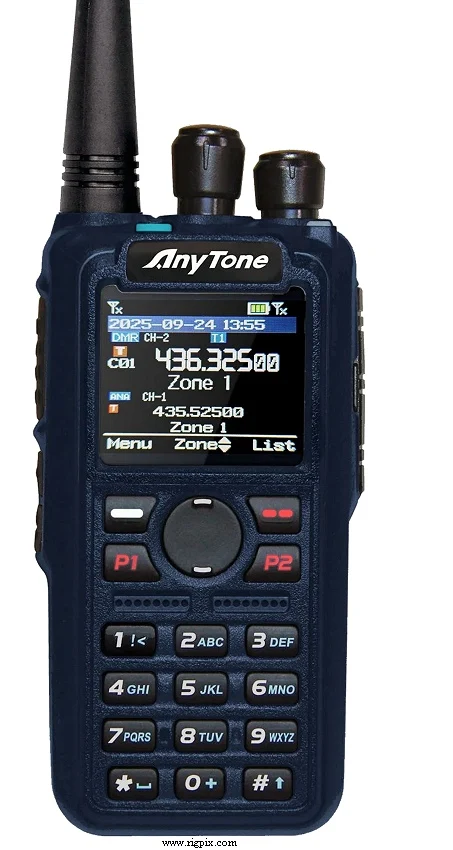

AT-D890UV
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | TX: 136-174 / 400-480 MHz RX: 87.5-108 / 108-174 / 400-480 MHz |
| Tuning steps | 5 / 6.25 / 8.33 KHz |
| Frequency stability | ±2.5 ppm @ -20 to +55°C (-4 to +131°F) |
| Mode | TX: FM / NFM / DMR (Tier I & II) / NXDN RX: AM / FM / NFM / WFM / DMR (Tier I & II) / NXDN NB! NXDN may require a firmware update |
| Channels / memory management | 4000 regular with alpha tags 250 zones 10000 talk groups 500000 digital contacts |
| Repeater shift / offset | Programmable |
| Power supply | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption | RX:? mATX:? A |
| Antenna impedance / connector | 50 ohms / SMA male |
| Dimensions (W*H*D) | 61*129*42 mm (2.4*5.08*1.65") |
| Weight | 293 g (10.33 oz), with battery pack |
| Other features | CTCSS/PL and DCS. 2 & 5-tone. DTMF. 1.77" color TFT display. Analog APRS (TX/RX) and DMR APRS (TX/RX). Roaming. Bluetooth. Auto-sense annalog or digital reception. GPS. Scrambler. USB-C charging. Digital voice recorder. Crossband repeater. SMS. VFO. Satellite tracking with doppler correction. Twin RX. |
RECEIVER SECTION
| Receiver system | — |
|---|---|
| Sensitivity | FM: 0.25 uV (12 dB SINAD) NFM: 0.35 uV (12 dB SINAD) DMR: 0.3 uV (BER 5%) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | FM: 65 dB (Adjacent channel)NFM: 60 dB (Adjacent channel) |
| Image rejection | — |
| AF output power / speaker | 1 W at 5% distortion / 16 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighMidLow 1Low 2 2 m:7 W5 W2.5 W200 mW 70 cm:6 W5 W2.5 W200 mW |
|---|---|
| 2 m | 7 W |
| 70 cm | 6 W |
| Modulation system | DMR: 4FSK |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -36 dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | China (By Qixiang Electron), 2025-202x |
|---|---|
| Additional info | FCC ID: T4K-D890UV Intro price, december 2025 in Sweden: SEK 2795:- (With BT PTT) |
| BC-05 BP-03 CPL-01 CPL-02 EJX-023 PC-04 PT-878 QA-11UV QB-44L QB-44HL QBC-47L QHM-024 TX-0313 | Belt clip Bluetooth wireless PTT Car charger Battery eliminator Earphone USB programming cable Leather case Flexible antenna Li-Ion battery pack. 7.4 V, 2100 mAh Li-Ion battery pack. 7.4 V, 3100 mAh Desk charger Speaker-microphone Long antenna. 38 cm (14.97") |
