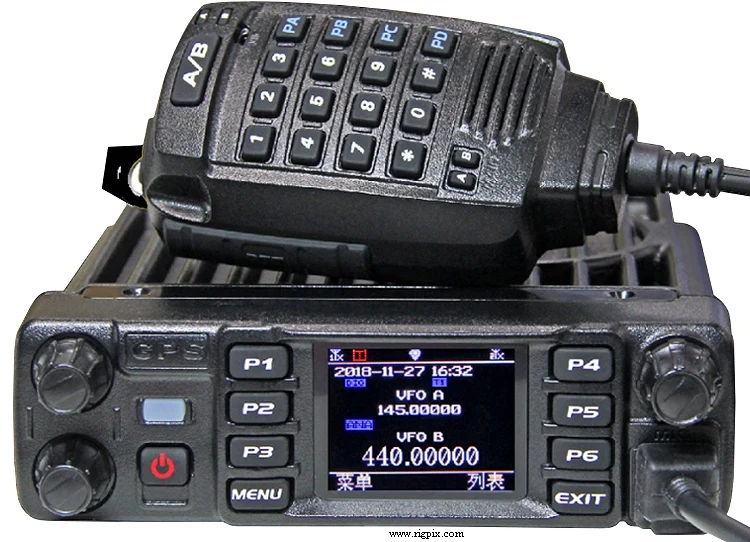

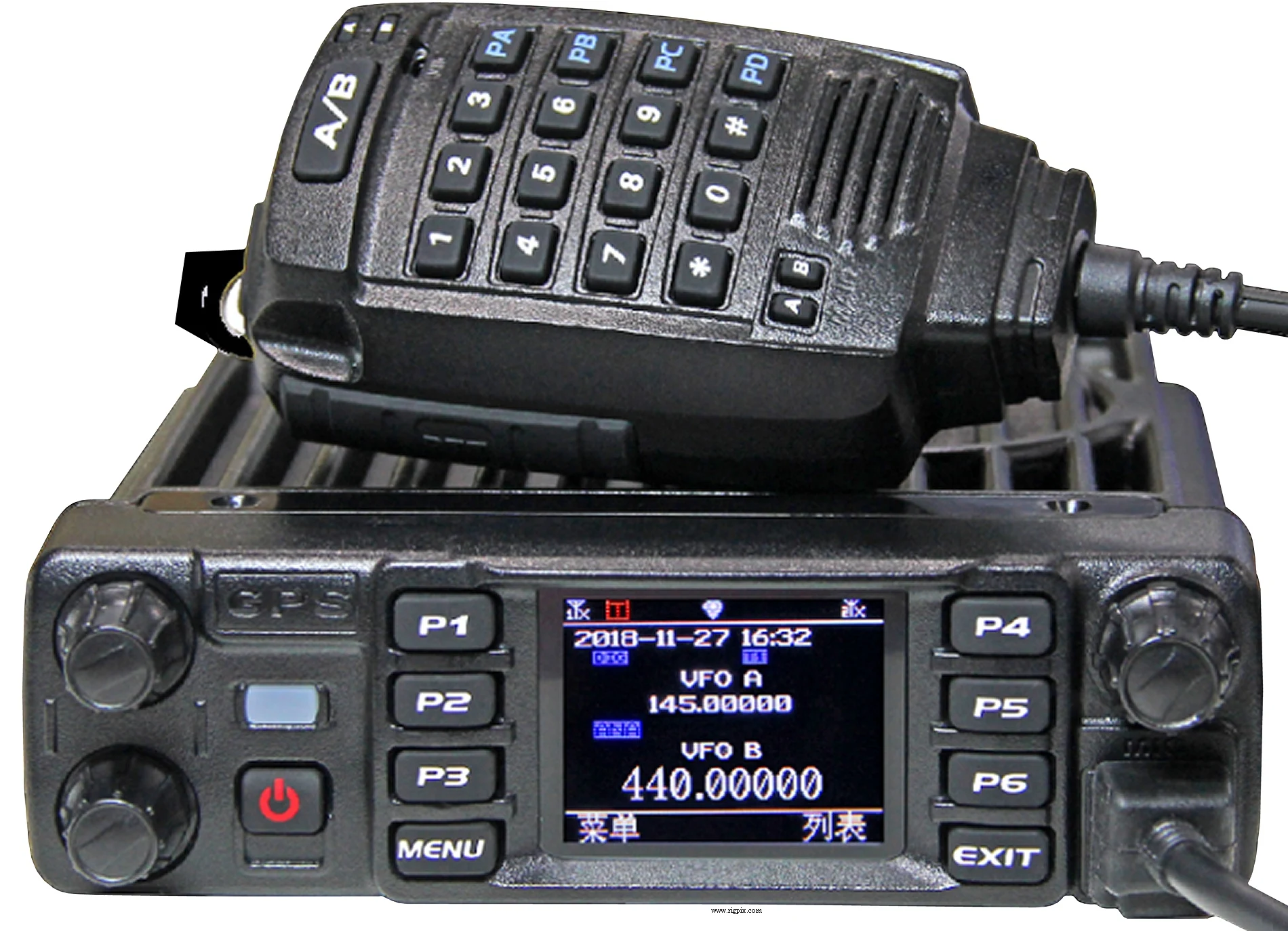

AT-D578UV
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 87.5-108 / 136-174 / 400-480 MHz |
| Tuning steps | 5 / 6.25 KHz |
| Frequency stability | ±2.5 ppm @ -20 to +55°C (-4 to +131°F) |
| Mode | TX: FM / NFM / DMR (Tier I & II)RX: FM / NFM / DMR (Tier I & II) and WFM |
| Channels / memory management | 4000 regular 250 zones (160 channels per zone) 200000 contacts |
| Repeater shift / offset | Freely programmable |
| Power supply | 13.8 VDC ±15% |
| Current drain/power consumption | RX:? mATX: 15 A |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | 188*40*141 mm (7.4*1.58*5.55") |
| Weight | 1.04 Kg (2.29 lb) |
| Other features | 1.77" color LCD. CTCSS/PL and DCS. DTMF. 2-tone/5-tone selcall. SMS via keyboard. APRS (TX only). Roaming. GPS and Bluetooth. VFO. VOX. Backlit buttons. Micro-USB. Twin RX (V/U, V/V, U/U). |
RECEIVER SECTION
| Receiver system | — |
|---|---|
| Sensitivity | FM: 0.25 uV (12 dB SINAD) NFM: 0.35 uV (12 dB SINAD) DV: 0.3 uV (5% BER) |
| Selectivity | FM: 70 dB (Adjacent channel) NFM: 60 dB (Adjacent channel) |
| Image rejection | — |
| AF output power / speaker | 2 W at 5% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | TurboHighMidLow 2 m:55 W25 W10 W5 W 70 cm:40 W25 W10 W5 W |
|---|---|
| 2 m | 55 W |
| 70 cm | 40 W |
| Modulation system | — |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -36 dB |
| Microphone impedance / connector | ? ohm / 8-pin (modular) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | China, 2019-202x |
|---|---|
| Additional info | New price 2019 in Sweden: SEK 4495:- New price 2021 in Sweden: SEK 3795:- |
| - | - |
