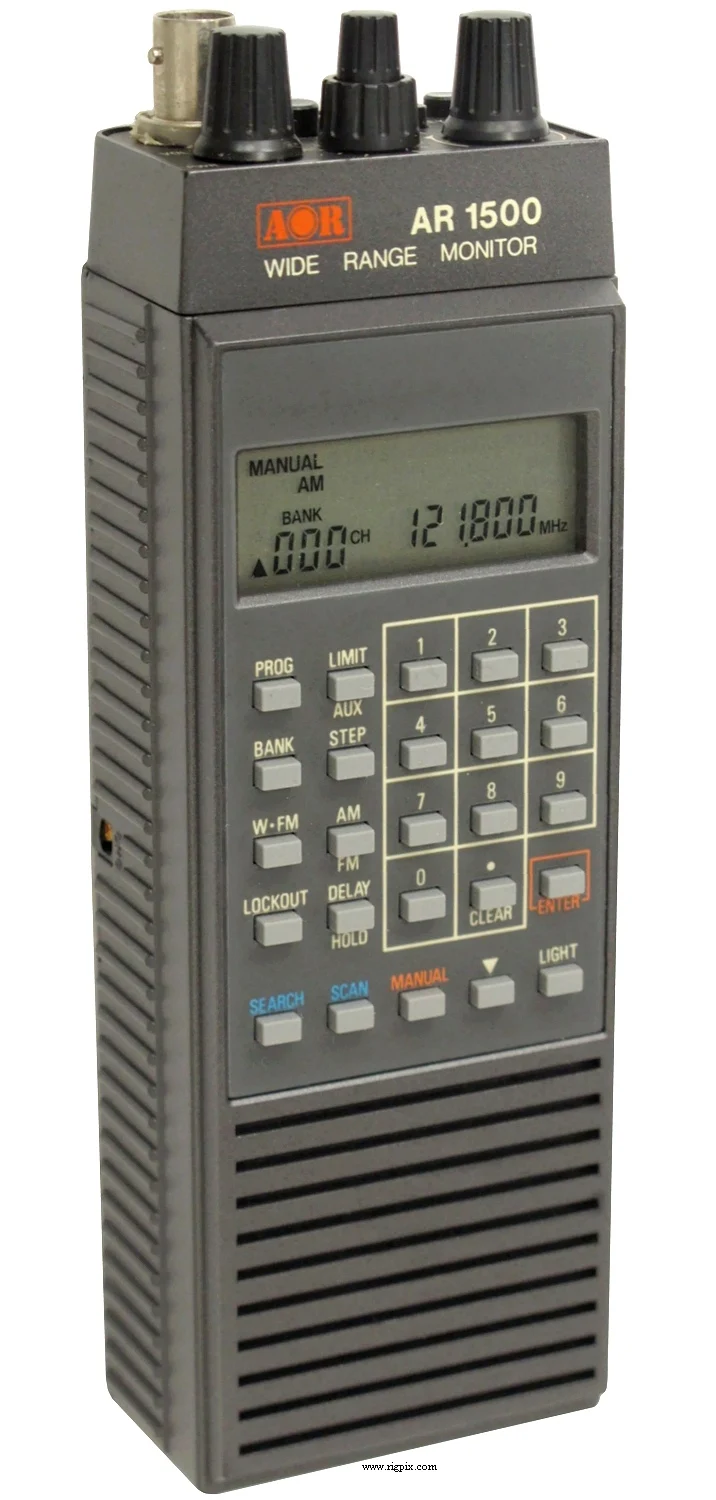

AR-1500
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.5-1300 MHz |
| Tuning steps | Programmable in 5 or 12.5 KHz increments up to max 995 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM / SSB (BFO -4 to +6 KHz) |
| Channels / memory management | 900 regular in 9 banks @ 20 channels per second 100 autowrite in 1 bank 9 search banks 1 priority |
| Power supply | 4.8-6 VDC (Four LR03 / AAA alkaline or NiCd cells)or 11-18 VDC external |
| Current drain / power consumption | Max 100 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 55*152*40 mm (2.16*5.98*1.58") |
| Weight | 360 g (12.7 oz), including battery pack |
| Other features | Backlit display. Local/DX attenuator. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | AM (Above 2 MHz): 3 uV (10 dB S/N) FM (Above 2 MHz): 0.5 uV (12 dB SINAD) SSB (Above 2 MHz): 1.5 uV (10 dB S/N) |
| Squelch sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 100 mW at 10% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1992-199x (Discontinued) |
|---|---|
| Additional info | — |
| ABF-125 DA-3000 LA-320 WA-7000 | VHF airband filter Discone antenna, 25-2000 MHz Active desktop loop antenna for LW/MW/HF Active compact antenna, 30 KHz to 2000 MHz |
