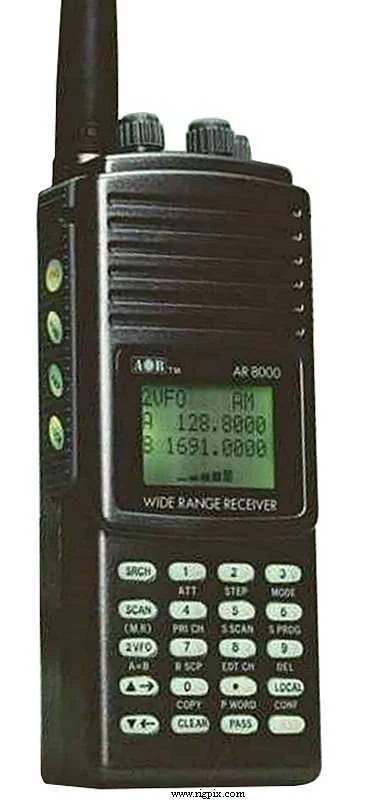

AR-8000
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.5-1900 MHz |
| Tuning steps | 50 Hz and any 50 Hz multiple up to 999.995 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM / SSB / CW |
| Channels / memory management | 1000 regular in 20 banks @ 30 channels per second 1000 pass 1 priority |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)or 9-16 VDC external |
| Current drain / power consumption | 20-160 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 69*153*40 mm (2.72*6.02*1.58") |
| Weight | 350 gr (12.35 oz), with batteries |
| Other features | Optional PC-control. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | AM (10 dB S+N/N) 2-30 MHz: 3 uV 30-1000 MHz: 1 uV FM (12 dB SINAD) 2-30 MHz: 1.5 uV 30-1000 MHz: 0.35 uV 1000-1300 MHz: 1 uV WFM (12 dB SINAD) 30-1000 MHz: 1 uV SSB (10 dB S/N) 2-30 MHz: 1 uV 30-1000 MHz: 0.25 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | AM/FM: 12 KHz (-6 dB)25 KHz (-60 dB) WFM: 180 KHz (-6 dB)800 KHz (-50 dB) SSB: 4 KHz (-6 dB)7.5 KHz (-50 dB) |
| Image rejection | — |
| AF output power / speaker | 120 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1994-199x (Discontinued) |
|---|---|
| Additional info | New price 1994 in Sweden: SEK 7415:- |
| ABF-125 CR-8000 CU-8232 DA-3000 LA-320 SC-8000 WA-7000 | Civil airband filter Tape recorder motor control & audio interface RS-232C and cloning interface Discone antenna Desktop loop antenna. 1.6-15 MHz Leather case Twin element antenna |
