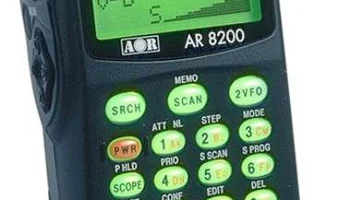

AR-8200 Mk2
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.1-2040 MHz |
| Tuning steps | 50 / 100 / 200 / 500 Hz1 / 2 / 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability | — |
| Mode | AM / NAM / WAM / NFM / SFM / WFM / USB / LSB / CW |
| Channels / memory management | 1000 regular in 20 banks with alpha tags 10 quick memories 40 search banks 1 priority 50 pass memories per search bank + 50 for VFO search Non-volatile flash memory |
| Power supply | 4.8-6 VDC (Four LR6 / AA batteries)or 12 VDC external |
| Current drain / power consumption | 25-190 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 61*143*39 mm (2.4*5.63*1.53") |
| Weight | 217 g (7.65 oz), without batteries |
| Other features | TXCO. RS-232C. Noise limiter. AFC. MW ferrite bar antenna. Optional slot cards. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.5-2 MHz: 3.5 uV 2-30 MHz: 2.5 uV 30-470 MHz: 0.7 uV NFM (12 dB SINAD) 30-470 MHz: 0.35 uV 470-1000 MHz: 0.5 uV 1000-1300 MHz: 1 uV 1300-2040 MHz: 2.5 uV WFM (12 dB SINAD) 30-470 MHz: 1 uV 470-1000 MHz: 1.5 uV SSB (10 dB S/N) 2-30 MHz: 1.5 uV 30-470 MHz: 0.3 uV |
| Selectivity | SSB/NAM 3 KHz (-6 dB)9 KHz (-60 dB) AM/SFM 9 KHz (-6 dB)20 KHz (-40 dB) WAM/NFM 12 KHz (-6 dB)25 KHz (-40 dB) WFM 150 KHz (-3 dB)380 KHz (-20 dB) |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 2000-200x (Discontinued) |
|---|---|
| Additional info | — |
| CC8200 CO8200 CR8200 CT8200 EM8200 RU8200 TE8200 VI8200 | Computer cable with level converter Data clone cable Tape recording cable CTCSS/PL card Extra memory card 20 second recording card Tone eliminator card Voice inverter/descrambler card |
