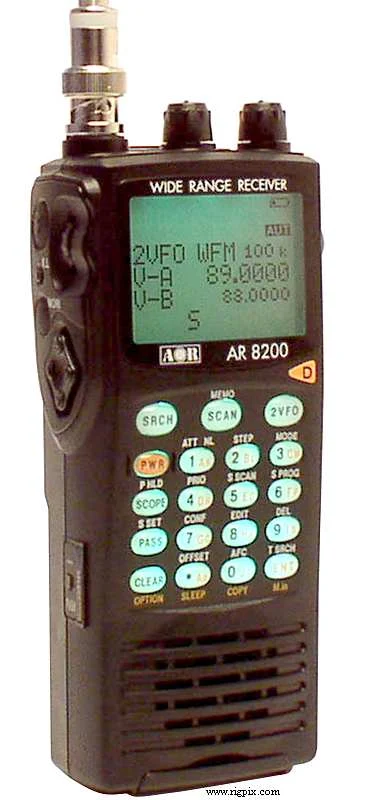

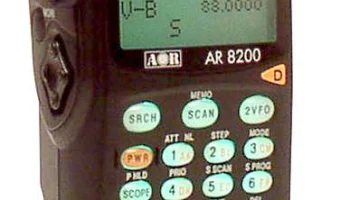

AR-8200D
Источник:
GENERAL
| Type | HFVHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.1-3000 MHz (Cellular blocked in the US) |
| Tuning steps | 50 Hz to 100 KHz |
| Frequency stability | — |
| Mode | AM / NAM / WAM / NFM / SFM / WFM / SSB / CW / DV (APCO P-25) |
| Channels / memory management | 1000 regular in 20 banks with alpha tags. 40 search banks 1 priority 2000 pass channels (50 per search banks) |
| Power supply | 4.8-6 VDC (Four LR6 / AA batteries)or 9-16 VDC external |
| Current drain / power consumption | 190 mA (Nominal) |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 61*143*39 mm (2.4*5.63*1.53") |
| Weight | 370 g (13.05 oz), including batteries, antenna and belt clip |
| Other features | Built-in CTCSS/PL decoder, voice recorder and voice inverter/descrambler. TXCO. RF preselection of mid VHF bands. Band scope. AFC. Noise limiter. MW ferrite bar antenna. Mini-USB. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF:? MHz 2nd IF:? MHz 3rd IF:? KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.5-1.9 MHz: 3.5 uV 1.9-30 MHz: 2 uV 30-470 MHz: 1 uV NFM (12 dB SINAD) 30-470 MHz: 0.35 uV 470-820 MHz: 0.5 uV 820-3000 MHz: 2.5 uV WFM (12 dB SINAD) 30-470 MHz: 1 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | SSB/NAM 3 KHz (-6 dB)9 KHz (-60 dB) AM/SFM 9 KHz (-6 dB)20 KHz (-40 dB) WAM/NFM 12 KHz (-6 dB)25 KHz (-40 dB) WFM 150 KHz (-3 dB)380 KHz (-20 dB) |
| Image rejection | — |
| AF output power / speaker | 120 mW at 10% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 2012-20xx (Discontinued) |
|---|---|
| Additional info | This is an enhanced AR-8200 MK3. Voice recorder: Up to 65 hrs recording on supplied 4 GB SDHC-card Voice inverter: Adjustable carrier between 2.4~6.15 KHz APCO25: Phase 1 non-encrypted, conventional mode CTCSS/PL: 67.0~254.1 Hz Mini-USB: For remote control and programming |
| ABF128 LA400 LN4000 SC8200 | Airband filter Indoor loop antenna Low noise amplifier Soft case |
