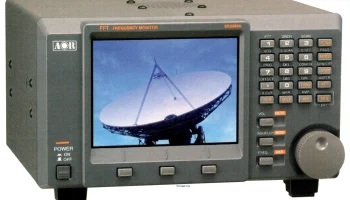

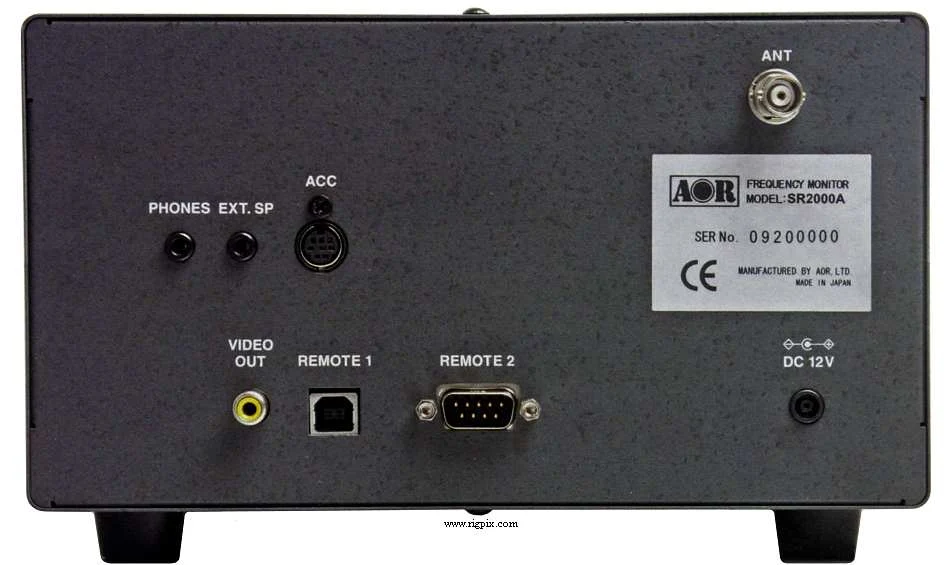

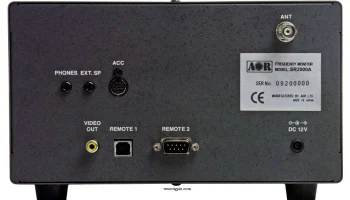

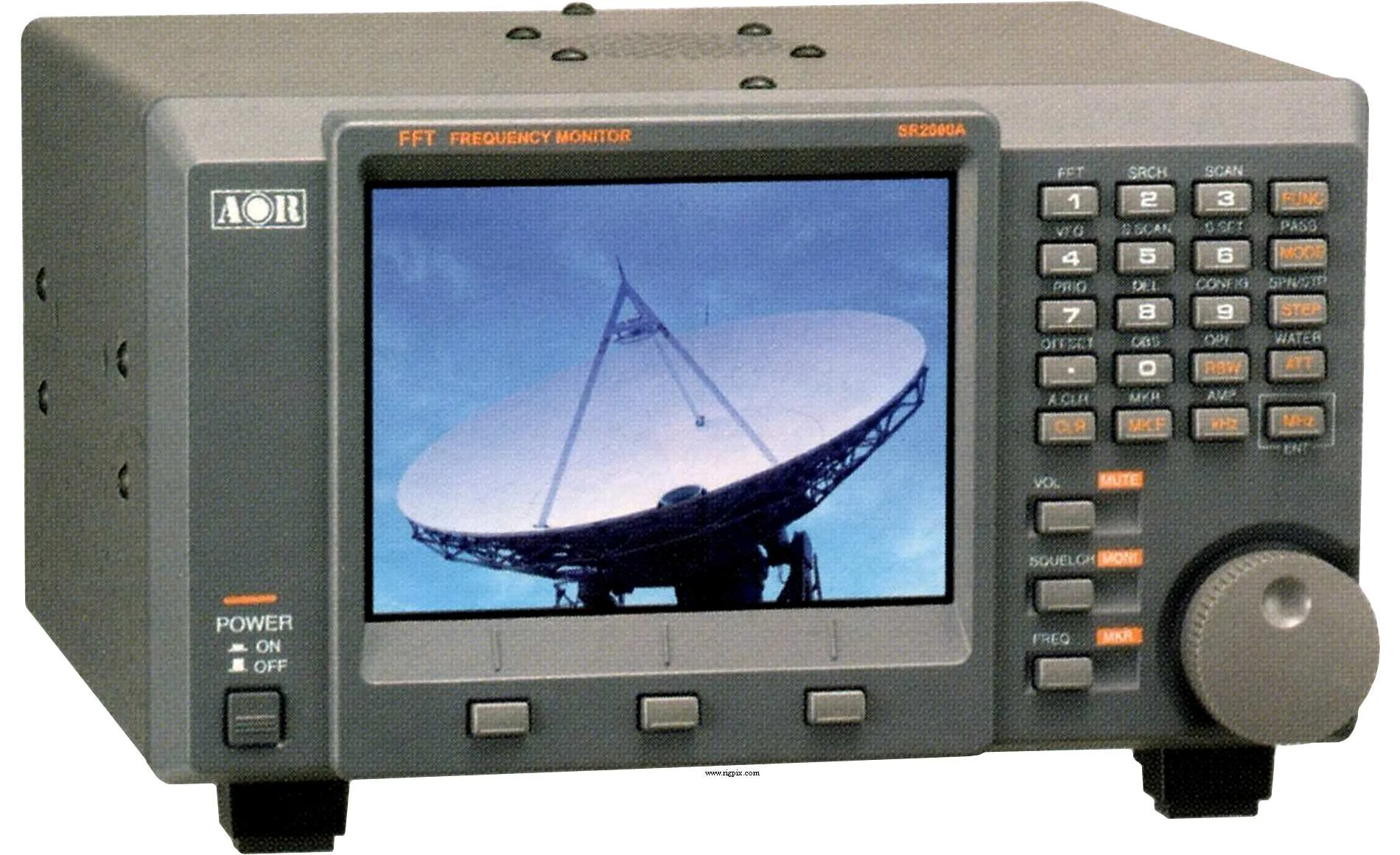

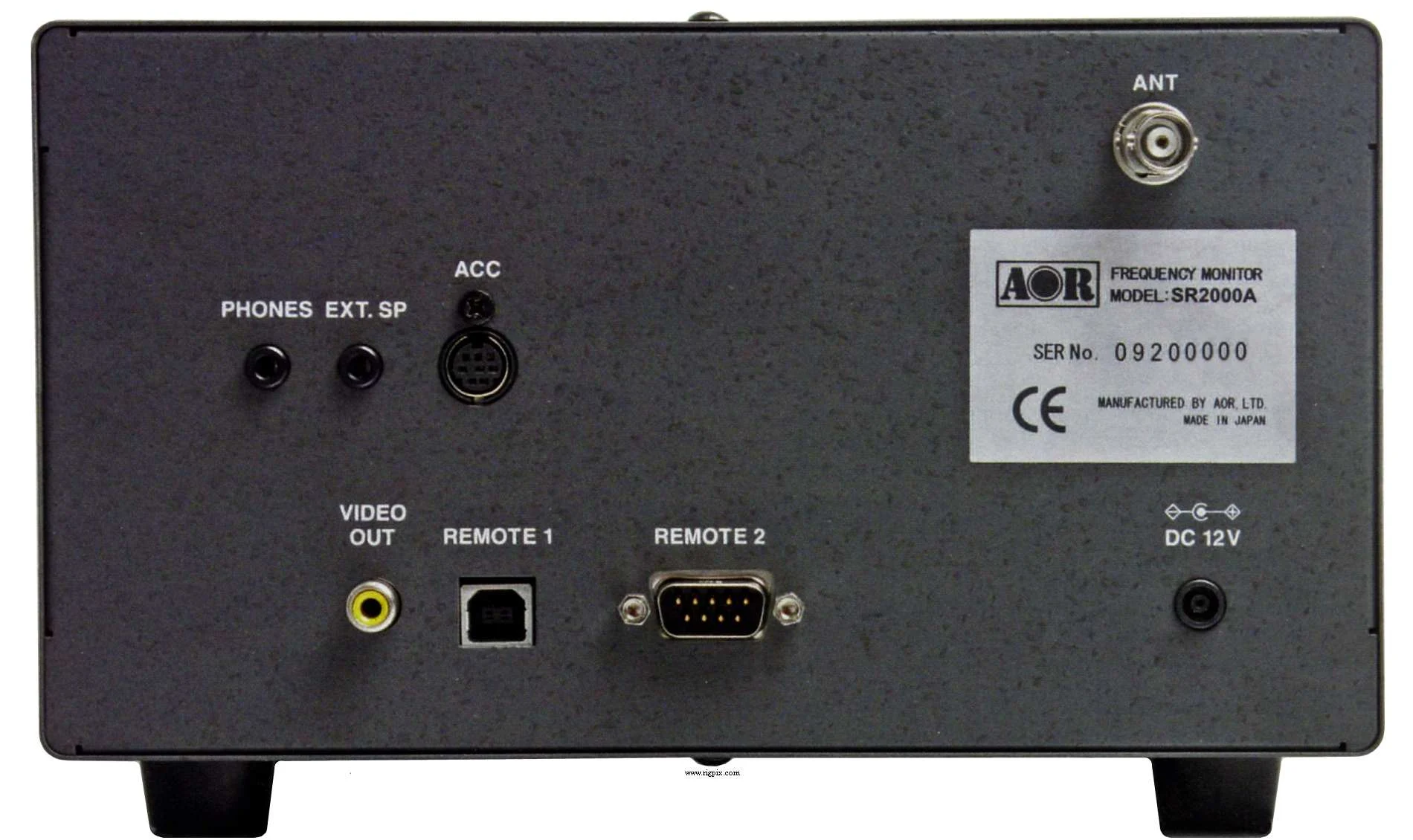

SR-2000A
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner with built-in SDU |
|---|---|
| Frequency range | 25-3000 MHz (Cellular blocked in the US) |
| Tuning steps | 0.1-100 KHz |
| Frequency stability | ±1 ppm @ 0 to 50°C (32 to 122°F) |
| Mode | AM / NFM / WFM / SFM + analog TV (DV option, APCO P25) |
| Channels / memory management | 1000 regular in 10 banks with alpha tags (12 characters) 40 search banks 2000 pass 1 priority |
| Power supply | 12-16 VDC |
| Current drain / power consumption | Max 1.5 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 220*120*185 mm (8.66*4.72*7.28") |
| Weight | 3.2 Kg (7.06 lb) |
| Other features | Ultra-fast FFT search algorithms. Up to 40 MHz spectrum bandwidth. Waterfall display. 5" color TFT. RS-232C and USB connectors. NTSC/PAL/SECAM video. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 254.3 / 744.3 MHz 2nd IF: 10.7 MHz 3rd IF: 455 KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 25-225 MHz: 0.6 uV 225-1700 MHz: 0.8 uV NFM (12 dB SINAD) 25-225 MHz: 0.35 uV 225-1700 MHz: 0.35 uV 1700-2700 MHz: 0.6 uV 2700-3000 MHz: 1.5 uV WFM (12 dB SINAD) 25-225 MHz: 2 uV 225-1700 MHz: 2 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 1.2 W at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm), 8 ohm |
MISCELLANEOUS
| Manufactured | Japan, 2007-201x (Discontinued) |
|---|---|
| Additional info | — |
| CR-5000 DC-9000 DA-3200 DS-3000A P25-2000 | Tape recorder cable DC power cord Discone antenna. 25-3000 MHz Discone antenna. 75-3000 MHz APCO P25 decoder unit |
