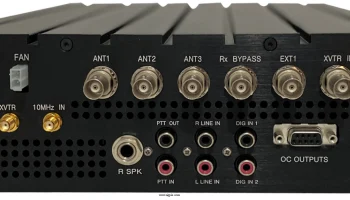

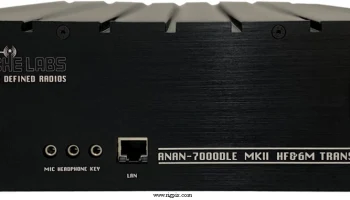

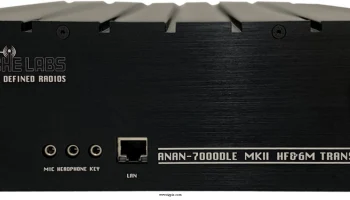

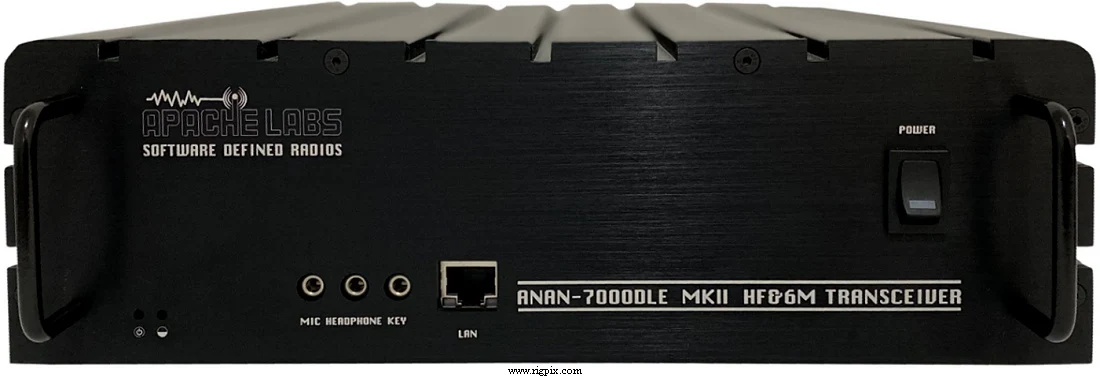

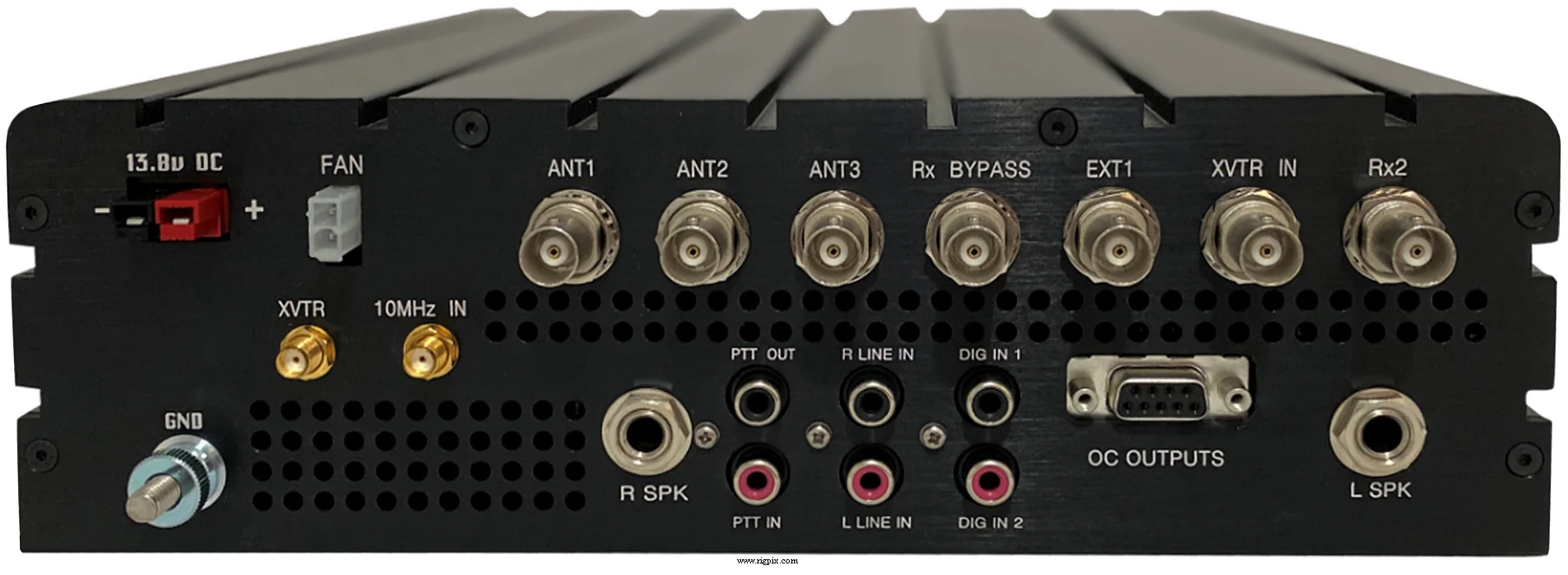

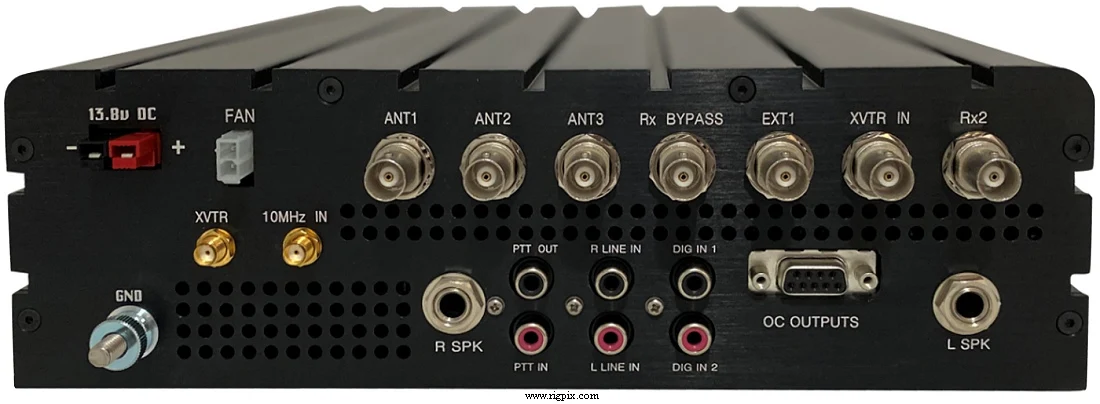

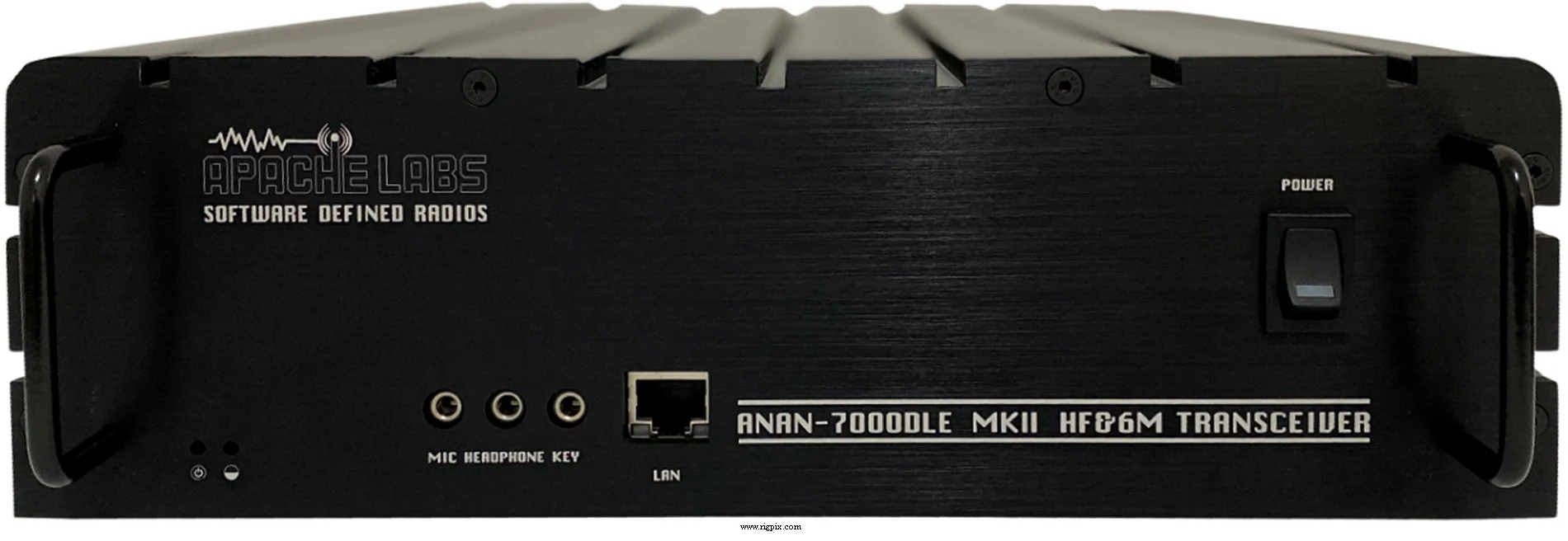

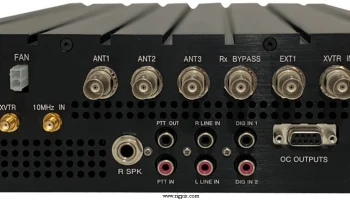

Anan-7000DLE MKII
Источник:
GENERAL
| Type | Amateur HF/VHF SDR transceiver |
|---|---|
| Frequency range | TX: 10-160 m + WARC / 6 m RX: 0.09-60 MHz |
| Tuning steps | Down to 1 Hz |
| Frequency stability | ±0.1 ppm (No temperature reference) |
| Mode | AM / FM / SSB / CW / Digital |
| Channels / memory management | Depending on software |
| Repeater shift / offset | Depending on software |
| Power supply | 13.8 VDC (PowerPole connectors) |
| Current drain / power consumption | RX: Max 3 ATX: Max 25 A |
| Antenna impedance / connector | 50 ohm / Three BNC (RX/TX) and one BNC (RX only) |
| Dimensions (W*H*D) | 265*79*276 mm (10.4*3.11*10.87") |
| Weight | 5 Kg (11 lb) |
| Other features | Individual filter banks for each ADC. 6 m LNA. 1-30 dB step attenuator. Hardware support for seven independent receiver assignable to either ADC. 10 MHz reference inpit. Ethernet connector. Transverter jack. |
RECEIVER SECTION
| Receiver system | Direct down conversion Dual 16-bit phase synchronous DAC:s |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | 90 dB |
| AF output power / speaker | ? W at ?% distortion / No internal speaker |
| External speaker connector | Two 6.25 mm (1/4") |
TRANSMITTER SECTION
| RF output power | AM: 1-30 W FM/SSB/CW/RTTY/Digital: Max 100 W |
|---|---|
| Modulation system | Direct up conversion |
| Max FM deviation (Factory set) | Depending on software |
| Spurious emissions | HF: Better than -43 dB6 m: Better than -60 dB |
| Microphone impedance / connector | ? ohm / 3.5 mm |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 2022-202x |
|---|---|
| Additional info | Pre-order price, december 2022 from the manufacturer: $2995.00 |
| - | - |
