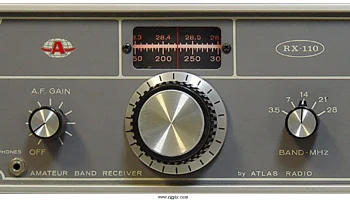

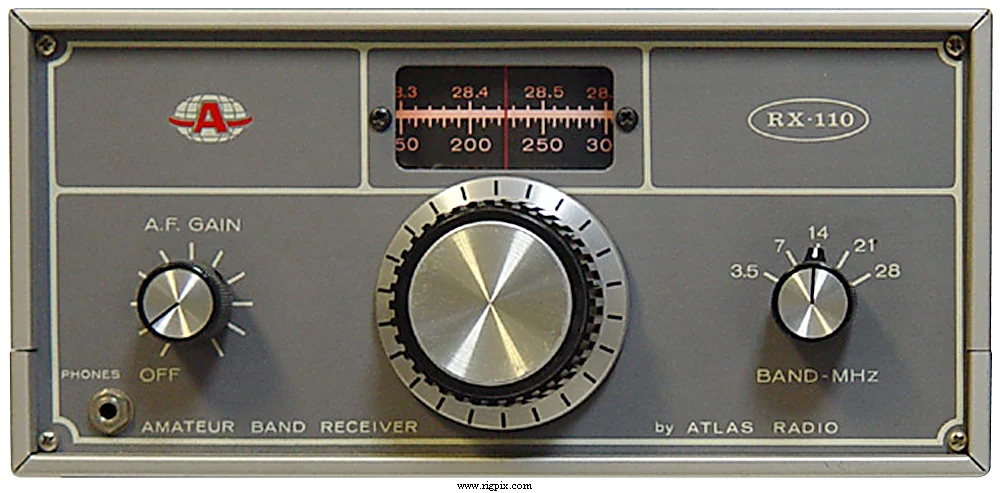

RX-110
Источник:
GENERAL
| Type | Amateur HF receiver |
|---|---|
| Frequency range | 10-80 m in 5 bands: 3.5-4.0 MHz (80 m) 7.0-7.5 MHz (40 m) 14.0-14.5 MHz (20 m) 21.0-21.5 MHz (15 m) 28.0-29.0 MHz (10 m) |
| Tuning steps | Continuous |
| Frequency stability | — |
| Mode | SSB / CW |
| Channels / memory management | No |
| Power supply | Mains or 12-14 VDC |
| Current drain / power consumption | Max 200 mA @ 12 VDC (Without optional TX) |
| Antenna impedance / connector | 50 ohm / Phono (RCA) |
| Dimensions (W*H*D) | 216*95*248 mm (8.5*3.75*9.75") |
| Weight | 3.18 Kg (7 lbs) |
| Other features | — |
RECEIVER SECTION
| Receiver system | Single conversion superheterodyne IF:? MHz |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | USA, 1978-197x (Discontinued) |
|---|---|
| Additional info | New price 1978 in the US: $229.00 |
| MM-110 PS-110 TX-110-H TX-110-L | Plug-in mobile mount AC power supply. 13.8 VDC. (When used with TX-110H) Matching transmitter. >90 W output Matching transmitter. >8 W output |
