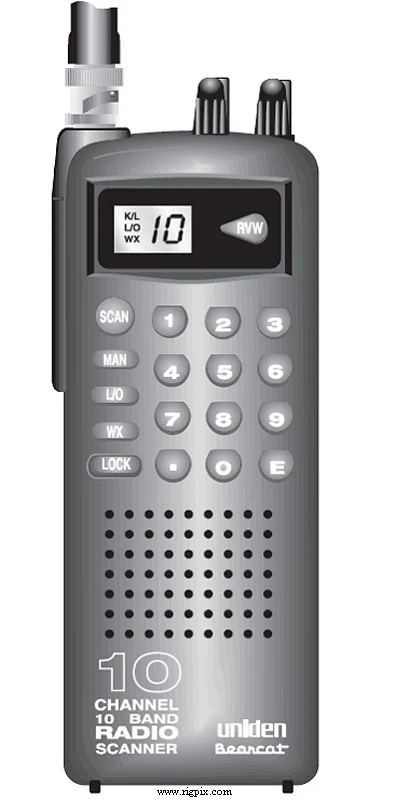

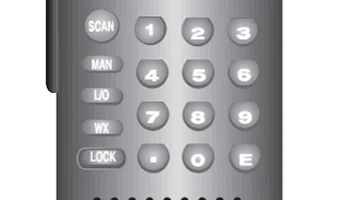

BC-60XLT
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 29-54 / 137-174 / 406-512 MHz |
| Tuning steps | ? /? KHz |
| Frequency stability | — |
| Mode | FM |
| Channels / memory management | 10 regular 7 NOAA weather channels Capacitor backup. Up to 3 days memory retention with batteries removed |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)or 12 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 64*324*44 mm (2.52*12.76*1.73"), with standard antenna attached |
| Weight | 357 g (12.59 oz) |
| Other features | — |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power/speaker | 250 mW at ?% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Philippines, 1994-1995 (Discontinued) |
|---|---|
| Additional info | — |
| AD-100U AT-218 BCK-150 EP-009 PS-001 | AC adapter/charger Rubber antenna Belt clip Earphone Cigarette lighter DC cable |
