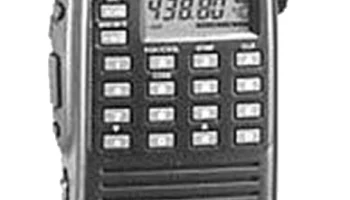

IC-4GXET
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | Europe TX: 430-440 MHz RX: 430-440 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±5 ppm @ 0 to 50°C (32 to 122°F) |
| Mode | FM |
| Channels / memory management | 40 regular 1 call 1 scan edge pair (Programmed scan) 5 second timer or 2 second paused scan resume |
| Repeater shift / offset | Programmable |
| Power supply | 7-12 VDC (Depending on battery pack)or 6-16 VDC external |
| Current drain / power consumption | RX: 35-250 mATX: Max 1.8 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 57*125*35 mm (2.2*4.9*1.4"), with BP-130A or BP-160 |
| Weight | 365 g (12.9 oz), with BP-160 |
| Other features | DTMF keypad. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 35.8 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Squelch sensitivity | Less than 0.16 uV (Threshold) |
| Noise figure | — |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | 60 dB |
| AF output power / speaker | 300 mW at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm), 8 ohm |
TRANSMITTER SECTION
| RF output power | High@13.5VHigh@7.2VLow@13.5VLow@7.2V 70 cm:6 W2.5 W1 W1 W |
|---|---|
| 70 cm | 6 W |
| Modulation system | — |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 1 Kohm / TRS «Subminijack» (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1994-199x (Discontinued) |
|---|---|
| Additional info | — |
| AD-25 AD-28 BC-77 BC-79 BC-105 BP-130A BP-157A BP-160 BP-174 CP-13L HM-46 HM-54 HM-55A HS-51 LC-118 LC-119 MB-30 OPC-288L SP-13 UT-49 UT-86 | Battery charge adapter Battery pack adapter Wall charger Desktop charger Wall charger Battery case. Six R6 / AA batteries NiCd battery pack. 7.2 V, 900 mAh NiCd battery pack. 7.2 V, 700 mAh NiCd battery pack. 12 V, 600 mAh Cigarette lighter cable with noise filter Speaker-microphone Speaker-microphone Speaker-microphone with DTMF keypad Headset Carrying case. For use with BP-130A/157A/160 Carrying case. For use with BP-174 Mounting bracket DC power cable Earphone DTMF decoder unit Tone squelch unit |
