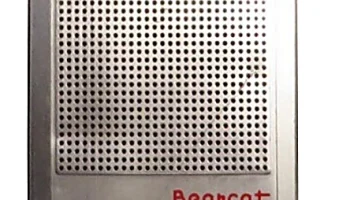

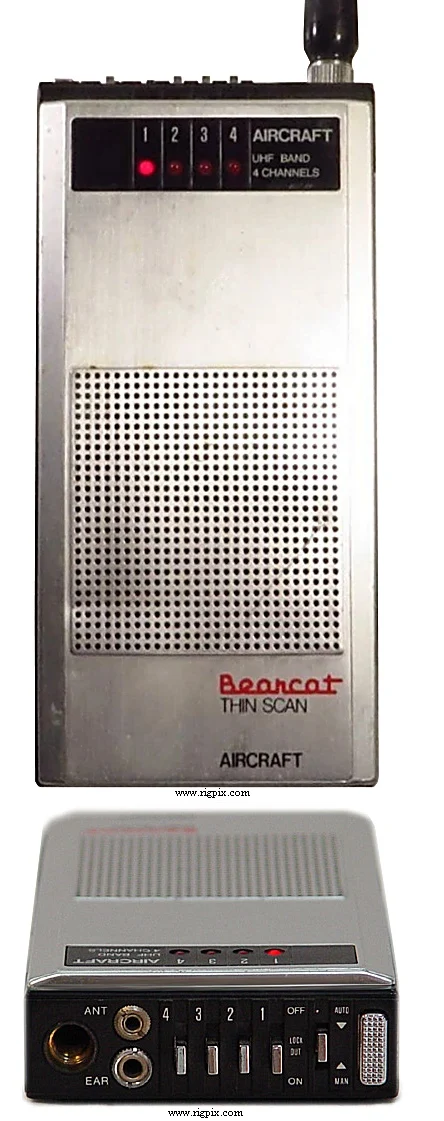

BC Two-Four AC
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 118-136 / 450-470 MHz |
| Tuning steps | Channelized |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 4 regular @ 8 channels per second One XTAL per channel |
| Power supply | 4.8-6 VDC (Four R03 / AAA alkaline or NiCd batteries)or 6 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / Threaded jackor 50 ohm / TS «Subminijack» (2.5 mm) |
| Dimensions (W*H*D) | 70*150*25 mm (2.75*5.9*1") |
| Weight | 283 g (10 oz), with batteries |
| Other features | Charging jack. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 10.8 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | — |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 100 mW at ?% distortion /? ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
MISCELLANEOUS
| Manufactured | Japan, 1979-198x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
