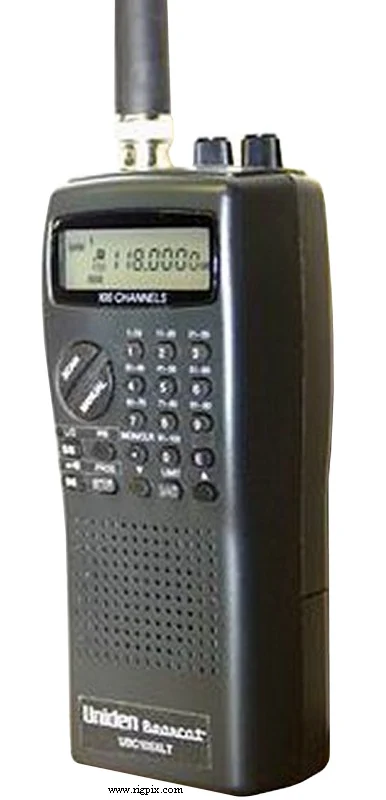

UBC-105XLT
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 29-54 / 108-174 / 406-512 MHz |
| Tuning steps | 5 / 8.33 / 12.5 KHz |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 100 regular @ 17 channels per second 1 priority RAM storage with capacitor backup. Up to 60 minutes memory retention without batteries |
| Power supply | 4.8-6 VDC (Four R6 / AA NiCd or Alkaline batteries)or 9 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 65*147*43 mm (2.56*5.79*1.69") |
| Weight | 216 g (7.62 oz), without batteries |
| Other features | Backlit display. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | HF/VHF-Lo: 0.4 uV 108-137 MHz: 1.4 uV 137-174 MHz: 0.6 uV UHF: 0.5 uV |
| Selectivity | 10 KHz (-6 dB)17 KHz (-50 dB) |
| Image rejection | — |
| AF output power / speaker | 230 mW at ?% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | 200x-200x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
