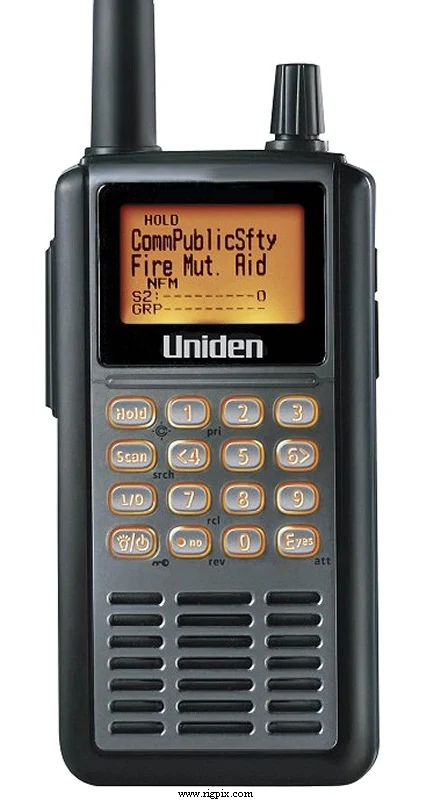

UBC-3500XLT
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 25-512 / 806-960 / 1240-1300 MHz |
| Tuning steps | 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz |
| Frequency stability | — |
| Mode | AM / FM / NFM / WFM / FMB |
| Channels / memory management | 2500 dynamic @ 100 channels per second 200 systems 20 groups per system Priority channels Alpha tags Non-volatile EEPROM storage |
| Power supply | 3.6-4.5 VDC (Three R6 / AA NiMH or Alkaline batteries)or 6 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 61*130*31 mm (2.4*5.12*1.22") |
| Weight | 183 g (6.45 oz), without batteries |
| Other features | CTCSS/PL and DCS. «Close call» RF capture. 25 dB attenuator. Repeater reverse. Channel alert. Data skip. Backlit display. PC control and cloning. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | AM (12 dB SINAD) 108-137 MHz: 0.4 uV 225-400 MHz: 0.3 uV FM (12 dB SINAD) 25-87.3 MHz: 0.3 uV 137-174 MHz: 0.3 uV 216-225 MHz: 0.3 uV 400-512 MHz: 0.3 uV 806-960 MHz: 0.4 uV 1240-1300 MHz: 0.5 uV WFM (12 dB SINAD) 174-216 MHz: 0.7 uV FMB (12 dB SINAD) 87.3-108 MHz: 0.7 uV |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 500 mW at ?% distortion / 24 ohm |
| External speaker connector | 3.5 mm |
MISCELLANEOUS
| Manufactured | China, 2006-200x (Discontinued) |
|---|---|
| Additional info | This is likely the european version of BR-330T with some stripped features. New price 2007 in Sweden: SEK 2299:- |
| AD-818 | AC adapter (Europe, 230 VAC). 6 VDC, 800 mA |
