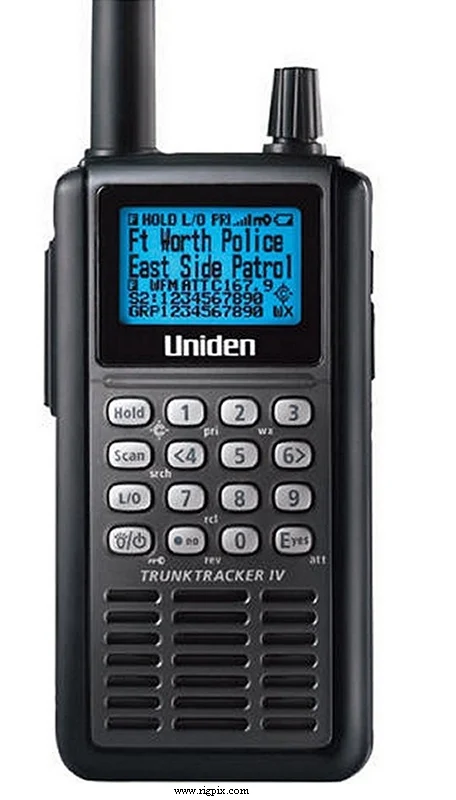

UBCD-396T
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 25-512 / 764-776 / 794-956 7 1240-1300 MHz |
| Tuning steps | 5 / 6.25 / 10 / 12.5 / 50 / 100 KHz |
| Frequency stability | — |
| Mode | AM / FM / NFM / WFM / APCO P25 Digital |
| Channels / memory management | 6000 dynamically allocated @ 100 channels per second |
| Power supply | 3.6-4.5 VDC (Three R6 / AA batteries) or 6 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 61*136*31 mm (2.4*5.35*1.22") |
| Weight | 260 gr (9.17 oz), with batteries |
| Other features | Tracks Motorola I, II & IIi, EDACS, SmartNet, SmartZone, Privacy Plus, SCAT and LTR. «Close call» RF capture technology. CTCSS/DCS. PC control & programming |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 400 mW at ?% distortion / 24 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | China (designed in Japan), 2006-20xx |
|---|---|
| Additional info | — |
| - | - |
