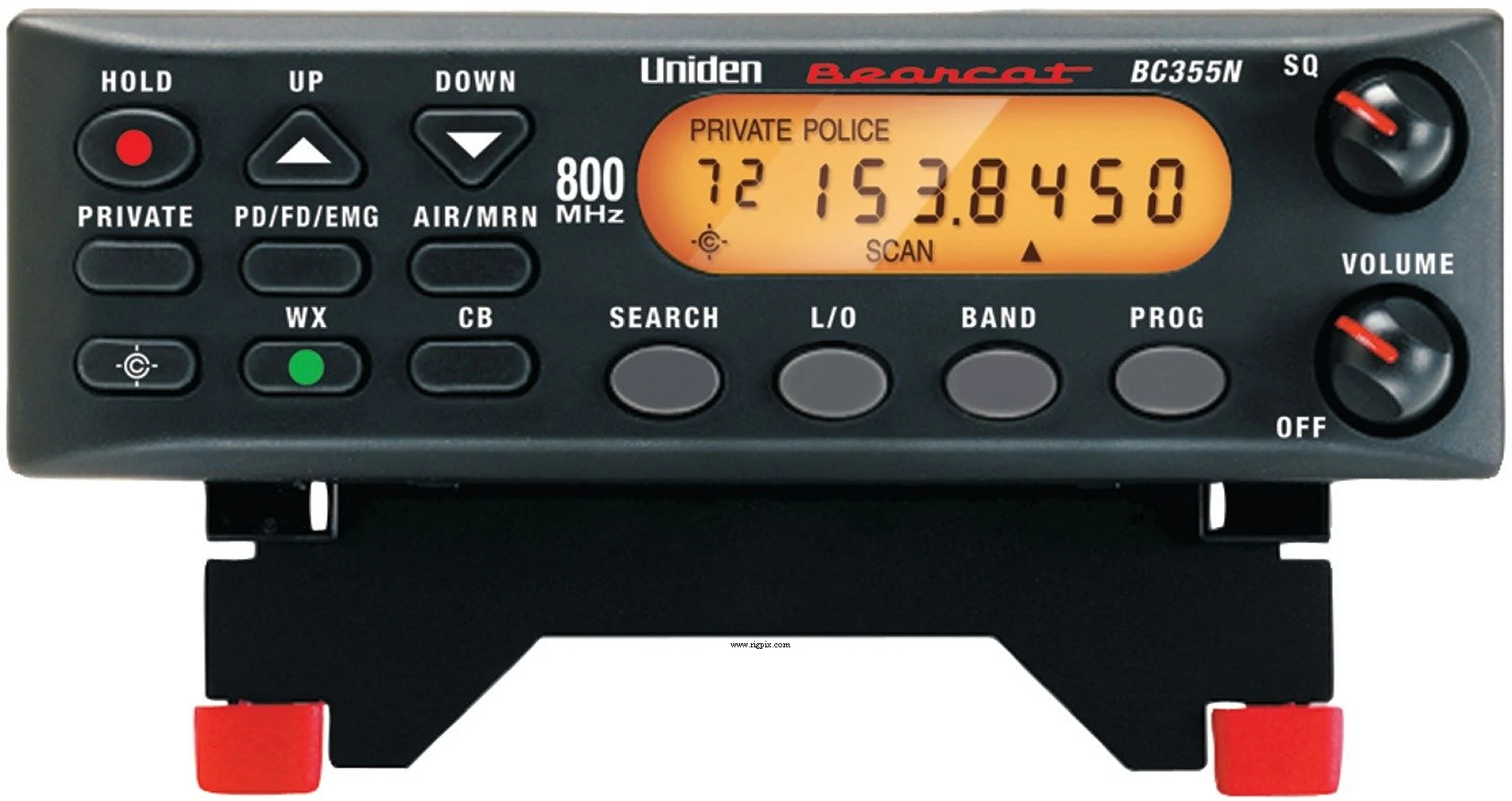

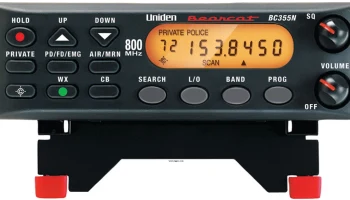

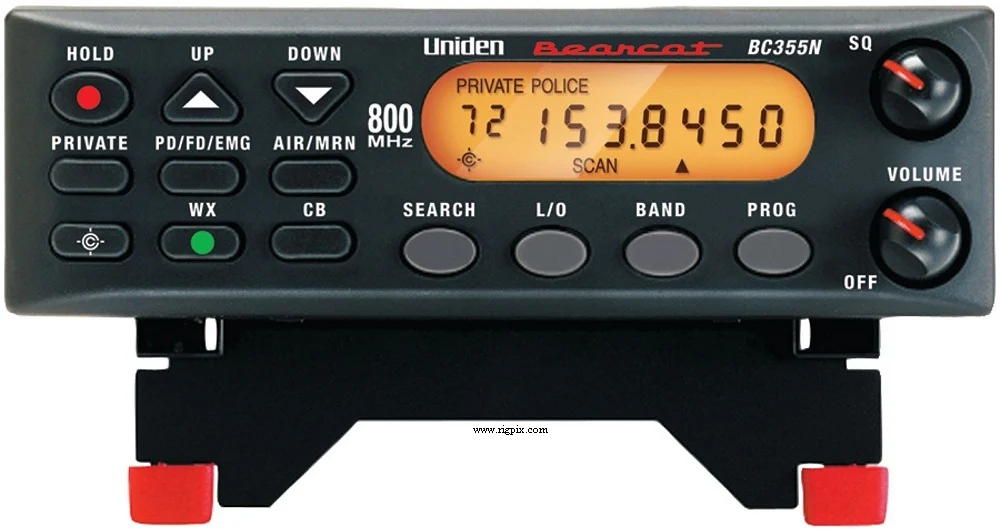

BC-355N
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 25-54 / 108-174 / 406-512 / 806-956 MHz (Cellular blocked in the US) |
| Tuning steps | 5 / 7.5 / 6.25 / 8.33 / 12.5 KHz (Depending on band) |
| Frequency stability | — |
| Mode | AM / FM / NFM |
| Channels / memory management | 4466 pre-programmed non-erasable public service and CB channels 100 «Police» and FD/EMG" user programmable channels 100 «Air» and «Marine» user programmable channels 100 «Private» user programmable channels 13 search bands |
| Power supply | 13.8 VDC (Male barrel jack, center positive) |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 132*41*146 mm (5.19*1.62*5.75") |
| Weight | 638 g (1.41 lb) |
| Other features | Close Call RF capture technology. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | 25-28 MHz: 0.4 uV (12 dB SINAD) 28-54 MHz: 0.3 uV (12 dB SINAD) 108-137 MHz: 0.4 uV (12 dB SINAD) 137-174 MHz: 0.2 uV (12 dB SINAD) 406-512 MHz: 0.3 uV (12 dB SINAD) 806-956 MHz: 0.4 uV (12 dB SINAD) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 900 mW at ?% distortion /? ohm |
| External speaker connector | TS «Minijack» (3.5 mm), 8 ohm |
MISCELLANEOUS
| Manufactured | Vietnam, 2012-20xx |
|---|---|
| Additional info | FCC ID: AMWUB367 New price 2019 in the US: $99.90. |
| ESP-5 ESP-12 ESP-20 MB-007 | External speaker External speaker External speaker Mobile mounting bracket |
