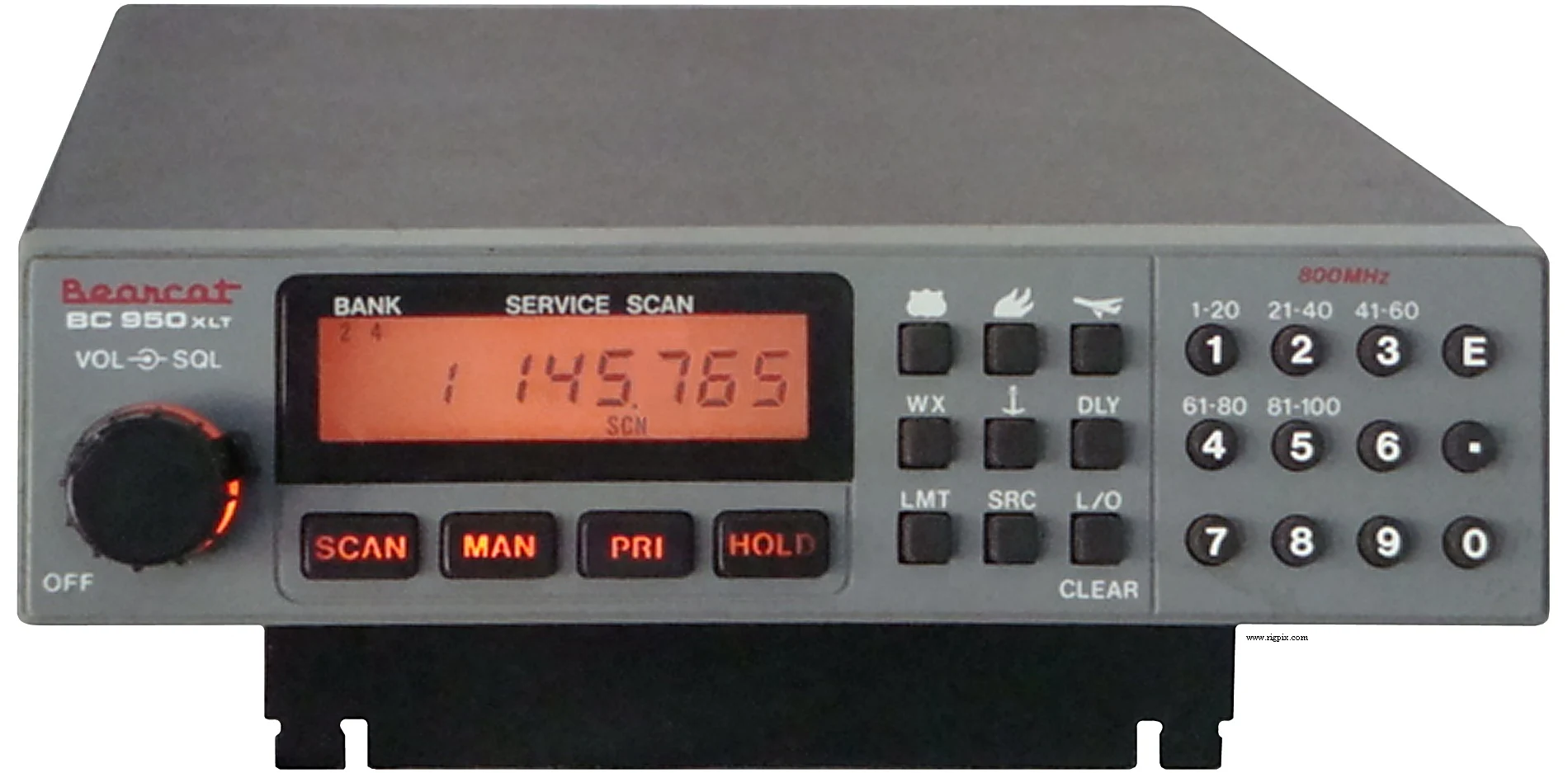

BC-950XLT
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 29-54 / 118-174 / 406-512 / 806-824 / 849-869 / 894-956 MHz |
| Tuning steps | VHF: 5 KHz UHF: 12.5 KHz Airband: 25 KHz |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 100 regular in 5 banks 5 priority (1 per bank) RAM storage with two LR6/AA backup batteries |
| Power supply | 13.8 VDC (Barrel connector) |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50-70 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D) | 160*41*189 mm (6.3*1.6*7.4") |
| Weight | ? Kg (? lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 10.85 MHz 2nd IF:? KHz |
|---|---|
| Sensitivity | For 12 dB SINAD 29-54 MHz: 0.33-0.51 uV 118-136 MHz: 0.67-0.7 uV 136-174 MHz: 0.5-0.58 uV 406-512 MHz: 0.35-0.43 uV 806-956 MHz: 1.25-2.7 uV |
| Selectivity | — |
| Image rejection | 29 MHz: 40 dB145 MHz: 20 dB |
| AF output power / speaker | 1 W at ?% distortion / 8 ohm |
| External speaker connector | 3.5 mm |
MISCELLANEOUS
| Manufactured | 198x-199x (Discontinued) |
|---|---|
| Additional info | — |
