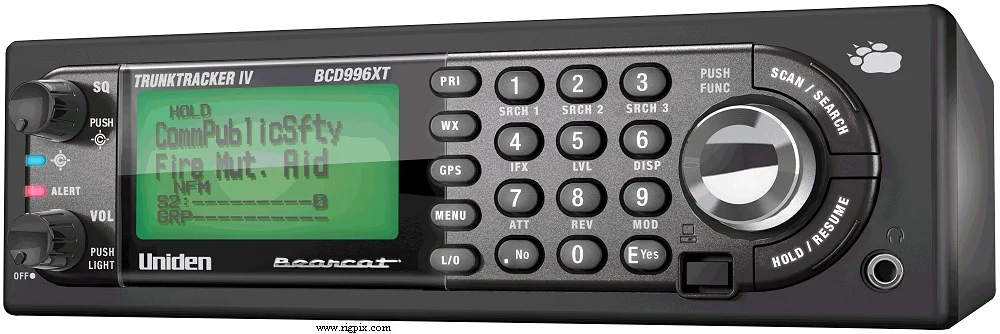

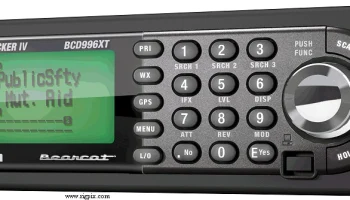

BCD-996XT
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 25-512 / 758-824 / 850-869 / 894-960 / 1240-1300 MHz (Cellular blocked in the US) |
| Tuning steps | — |
| Frequency stability | — |
| Mode | AM / FM / NFM / WFM / APCO P25 |
| Channels / memory management | 25000 dynamic |
| Power supply | 11-16.6 VDC |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 183*56*150 mm (7.2*2.2*5.9") |
| Weight | 1.56 Kg (3.44 lb) |
| Other features | CTCSS/DCS. «Close Call» RF capture technology. GPS-enabled for location-related scanning. When a GPS-unit is connected, it can also alert at areas of special interest such as dangerous intersections, school zones or general points of interest (fixed speeding cameras anyone?). Tracks Motorola I, II & IIi, EDACS and LTR. Band scope. Multi-color display backlight. NAC-decoding. Individual channel volume offset. RS-232C. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 380/265 MHz 2nd IF: 10.8 MHz 3rd IF: 450 KHz |
|---|---|
| Sensitivity | AM (No reference) 25-28 MHz: 0.3 uV 108-137 MHz: 0.3 uV 225-378 MHz: 0.3 uV FM (No reference) 72-76 MHz: 0.2 uV NFM (No reference) 28-54 MHz: 0.3 uV 137-174 MHz: 0.2 uV 216-225 MHz: 0.3 uV 380-512 MHz: 0.3 uV 758-960 MHz: 0.3 uV 1240-1300 MHz: 0.4 uV WFM (No reference) 54-72 MHz: 0.5 uV 76-108 MHz: 0.5 uV 174-216 MHz: 0.5 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
MISCELLANEOUS
| Manufactured | 2009-20xx |
|---|---|
| Additional info | — |
| - | - |
