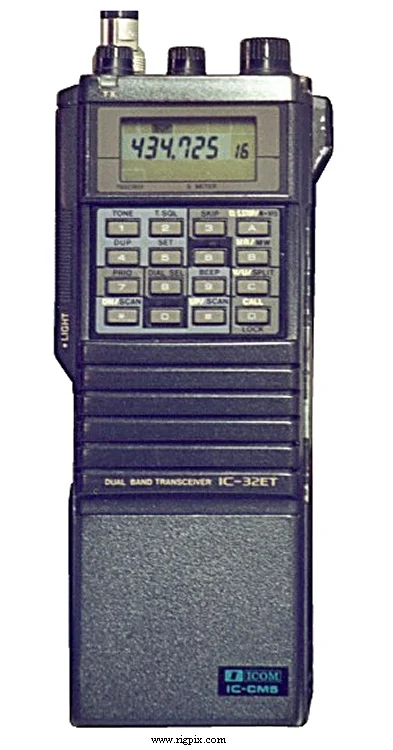

IC-32ET
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 138-174 / 430-440 MHz (The wider reception range may require modification) |
| Tuning steps | 12.5 / 25 KHz |
| Frequency stability | — |
| Mode | FM |
| Channels / memory management | 20 regular 2 call 2 scan edges RAM storage with lithium battery backup |
| Repeater shift / offset | ±0 to 9.99 MHz in 10 KHz steps |
| Power supply | 7.2-13.2 VDC (Depending on battery pack)or 5.5-16 VDC external |
| Current drain / power consumption | RX: 10-250 mATX: 0.9-2.2 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 65*159*35 mm (2.56*6.26*1.38"), with BP-3 |
| Weight | 510 g (1.12 lb), with BP-3 |
| Other features | DTMF. Splash resistant. Backlit display. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 30.875 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity | Less than 0.16 uV (Threshold) |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 400 mW at 10% distortion / 8 ohm |
| External speaker connector | «Minijack» (3.5 mm), 8 ohm |
TRANSMITTER SECTION
| RF output power | High@ 13.2VLow 2 m:5.5 W1 W 70 cm:5 W1 W |
|---|---|
| 2 m | 5.5 W |
| 70 cm | 5 W |
| Modulation system | Variable reactance frequency modulation |
| Max AM modulation (Factory set) | No AM |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 198x-19xx (Discontinued) |
|---|---|
| Additional info | — |
| BP-2 BP-3 BP-4 BP-5 BP-5A BP-7 BP-8 BP-70 HM-46 UT-40 | NiCd battery pack. 7.2 V, 450 mAh NiCd battery pack. 8.4 V, 270 mAh Battery case. For six LR6 / AA dry cells or NiCd's NiCd battery pack. 10.8 V, 450 mAh NiCd battery pack. 10.8 V, 450 mAh NiCd battery pack. 13.2 V, 450 mAh NiCd battery pack. 8.4 V, 800 mAh NiCd battery pack. 13.2 V, 270 mAh Speaker-microphone Tone squelch unit |
