318
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency rangedepending on version | A: 75-88 / 163-173 / 454-474 MHz B: 75-88 / 157-167 / 454-474 MHz C: 75-88 / 163-173 / 410-470 MHz D: 75-88 / 150-160 / 380-420 MHz E: 75-88 / 163-173 / 380-420 MHz |
| Tuning steps | Channelized |
| Frequency stability | — |
| Mode | FM |
| Channels / memory management | 9+9 regular 1+1 out of 12+12 local Sockets for 18+24 XTAL's XTAL controlled |

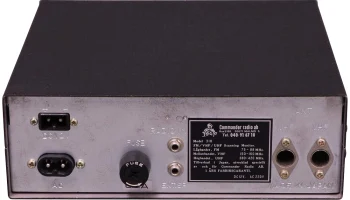

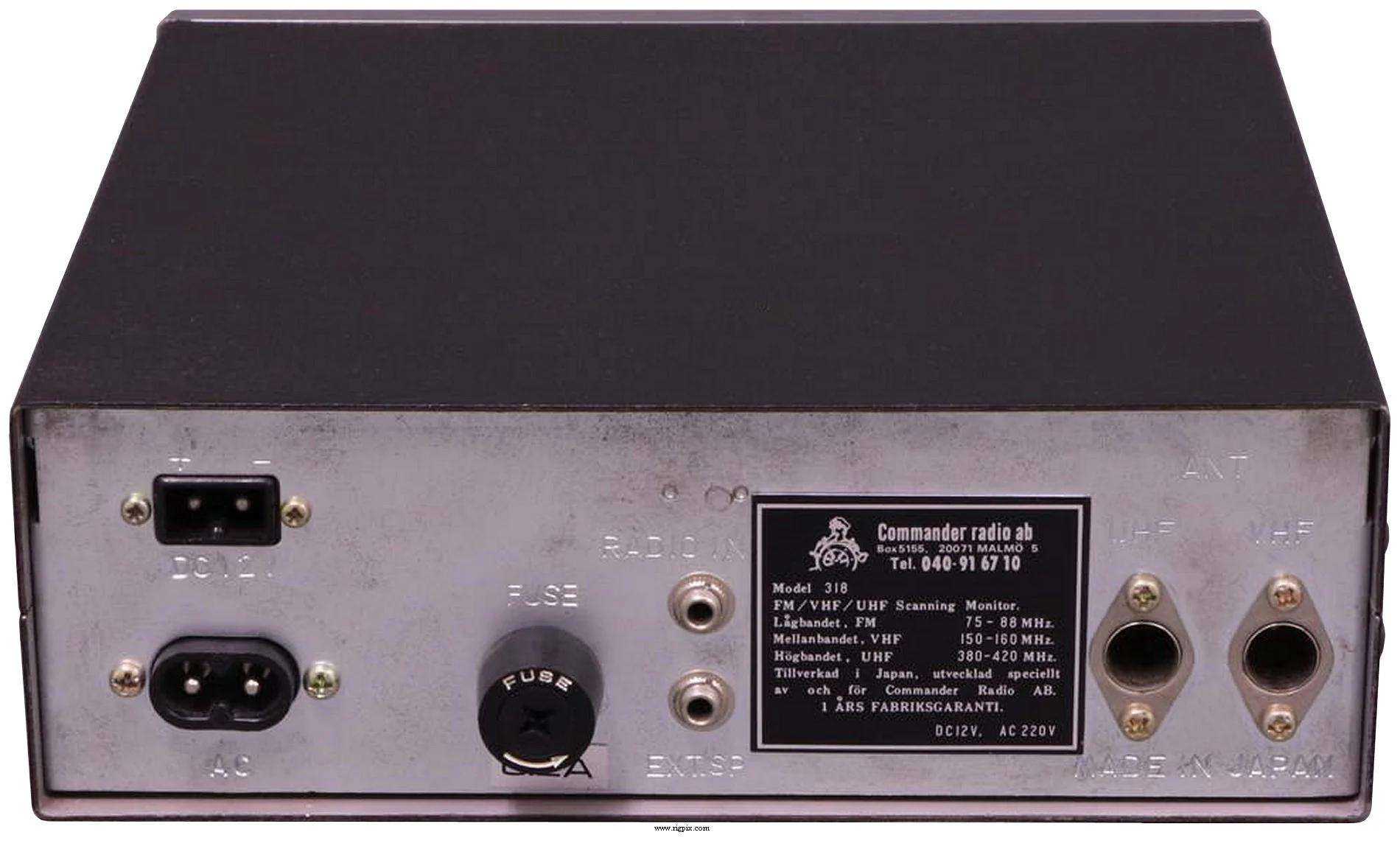

| Power supply | Mains: 220 VAC (Male 2-pin jack)or 12 VDC (Male 2-pin jack) |
| Current drain / power consumption | ? mA @ 12 VDC |
| Antenna impedance / connector | 50-75 ohm / Two DIN41585 (Motorola) |
| Dimensions (W*H*D) | 193*64*205 mm (7.6*2.52*8.07") |
| Weight | 2.03 Kg (4.48 lb), with mobile bracket |
| Other features | Local/DX sensitivity switch. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 10.7 MHz 2nd IF: 455 KHz — Ceramic filter: Murata CFM455E |
|---|---|
| Sensitivity | 80 MHz: 0.4 uV 160 MHz: 0.6 uV 410 MHz: 0.6 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
MISCELLANEOUS
| Manufactured | Japan, 198x-198x (Discontinued) |
|---|---|
| Additional info | New price 1981 in Sweden: SEK 1245:- New price 1983 in Sweden: SEK 1245:- New price 1984 in Sweden: SEK 1450:- |
| - | - |
