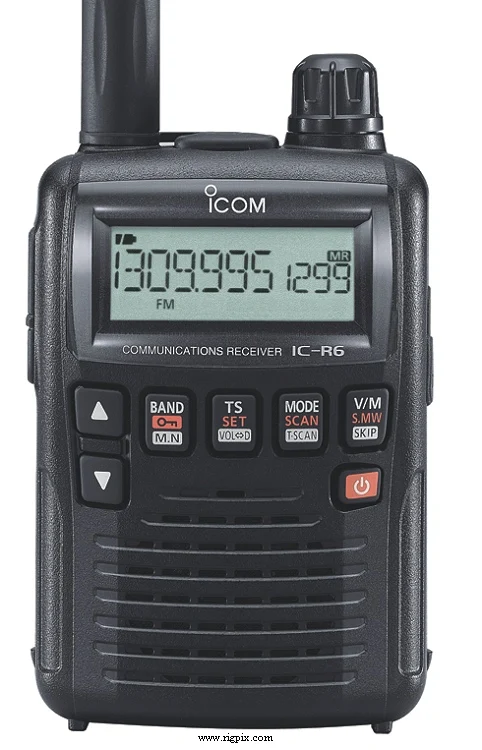

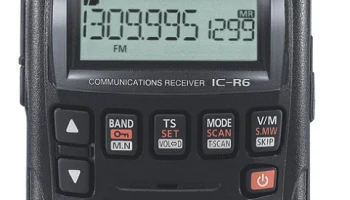

IC-R6
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.100-1310 MHz (Cellular blocked in the US) |
| Tuning steps | 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability | ±1 ppm @ +25°C (+77°F) |
| Mode | AM / FM / WFM |
| Channels / memory management | 1100 regular 200 auto write 25 scan edge pairs Alpha tags Priority watch Non-volatile storage |
| Power supply | 2.4-3 VDC (Two R6/AA alkaline or NiMH cells)or 4.5-6.3 VDC external |
| Current drain / power consumption | 30-130 mA |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*86*30 mm (2.28*3.39*1.18") |
| Weight | 200 g (7.06 oz), with antenna and batteries |
| Other features | CTCSS/PL & DTCS with tone scan. VSC. Ferrite bar antenna for MW reception. Duplex shift. PC-programmable via USB. NOAA weather channels with weather alert (US version only) |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 266.7 MHz 2nd IF: 19.65 MHz (AM/FM), 19.95 MHz (WFM) 3rd IF: 450 KHz (AM/FM), 750 KHz (WFM) |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.495-5 MHz: 1.3 uV 5-30 MHz: 0.89 uV 118-136 MHz: 0.63 uV 222-247 MHz: 0.63 uV 247-330 MHz: 0.79 uV FM (12 dB SINAD) 1.625-5 MHz: 0.32 uV 5-30 MHz: 0.25 uV 30-118 MHz: 0.18 uV 118-247 MHz: 0.18 uV 247-470 MHz: 0.18 uV 470-833 MHz: 0.32 uV 833-1030 MHz: 0.28 uV 1030-1310 MHz: 0.35 uV WFM (12 dB SINAD) 76-108 MHz: 1.1 uV 175-222 MHz: 1.1 uV 470-770 MHz: 1.8 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | AM/FM 12 KHz (-9 dB)30 KHz (-60 dB) WFM 150 KHz (-6 dB) |
| Image rejection | — |
| AF output power / speaker | 150 mW at 10% distortion / 16 ohm |
| External speaker connector | TRS «Minijack» (3.5 mm), 8 ohm |
MISCELLANEOUS
| Manufactured | Japan, 2009-201x |
|---|---|
| Additional info | Available in black, blue or red New price 2010 in Sweden: SEK 2495:- New price 2021 in Sweden: SEK 2195:- |
| AD-92SMA BC-153SC BC-194 BC-196SA BC-196SD CP-18A CP-18E CS-R6 CT-17 HP-4 LC-146A OPC-474 OPC-478 OPC-478UC SP-13 | Antenna connector adapter (SMA-to-BNC) AC adapter/charger Charge stand AC adapter/charger AC adapter/charger Cigarette lighter cable with DC-DC converter Cigarette lighter cable with DC-DC converter Cloning software CI-V level converter Headphone Carrying case Cloning cable (Radio-to-radio) Cloning cable, RS-323C (Radio-to-computer) Cloning cable, USB (Radio-to-computer) Earphone |
